Артикул: 206243

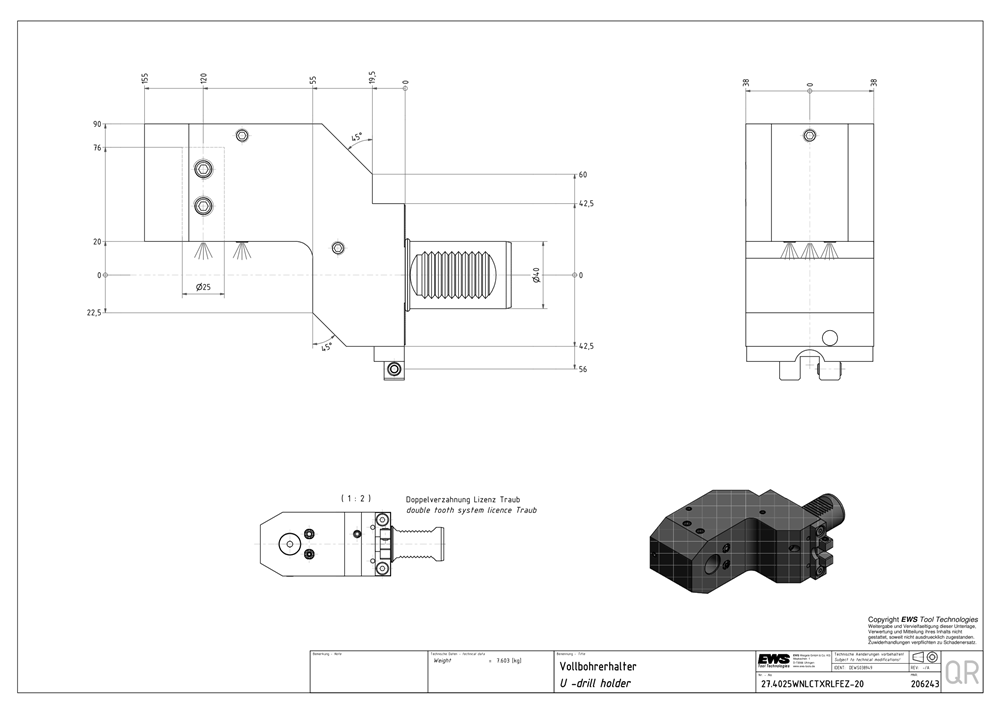

Solid drill holder
Premium class tooling system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Mounting diameter min. (DCONN) | 25.00 mm |
|---|---|
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI40 |
| Interface size | Weldon Ø 25.0 Whistle Notch Ø 25.0 |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | EWS Adjust |
