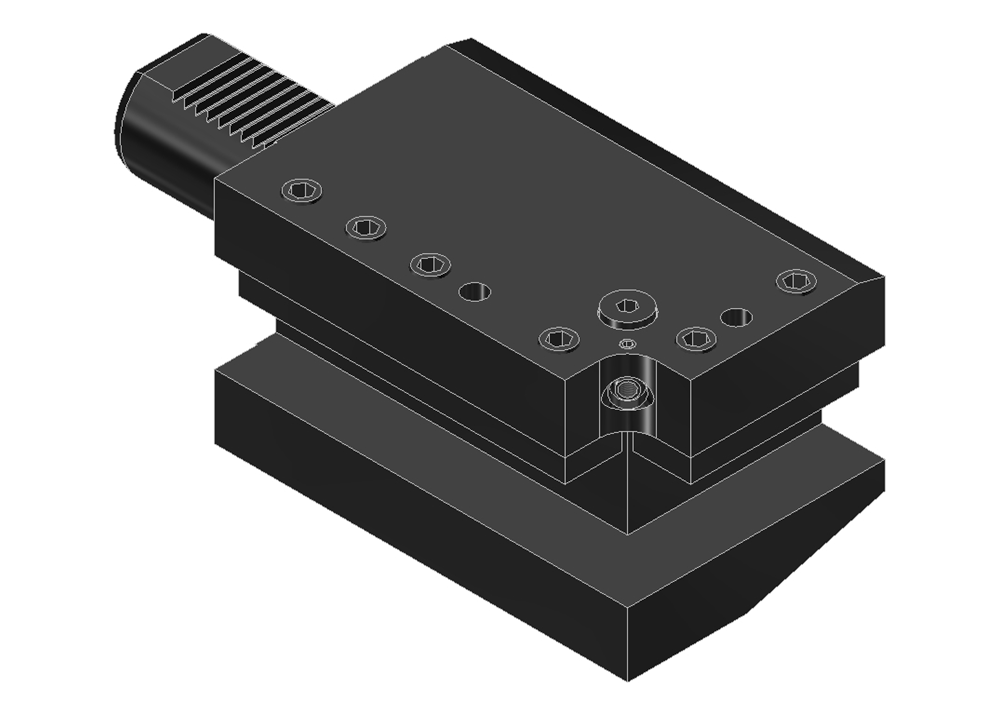

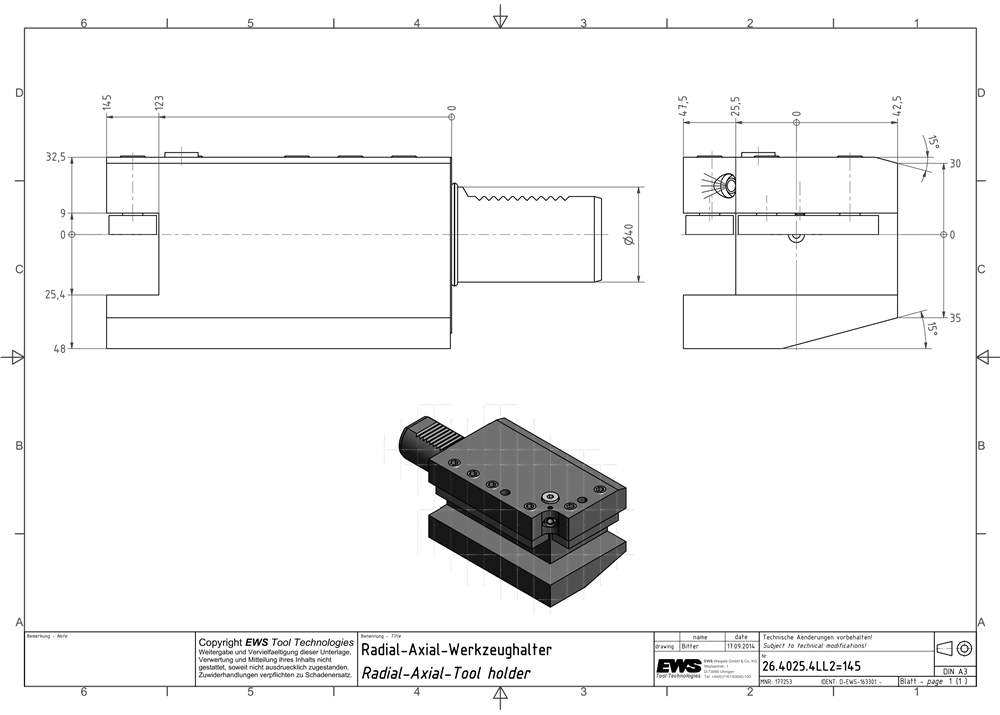

26.4025.4LL2=145 — Radial-Axial-Tool holder Shank- Ø40 Square 25.4 ( 1″ )

Артикул: 177253

Radial-Axial Toolholder

Premium class tooling system for highest production efficiency — Made in Germany


Документация

Cantilever length (LPR) 145.00 mm
Functional length (LF) 123.00 mm
Function height (HF) 25.40 mm
Functional width (WF) 25.50 mm
Direction tool interface (HAND) L
Number of holders workpiece side (CCONWS) 2
Product group Tool holders and adapter
Product type Turning tool
Shank size VDI40
Interface size Shank 1″x1″
Convertible No
Rotatable main &amp’ counter spindle No

Article number177253
Product weight7.253 KG
