Артикул: 174022

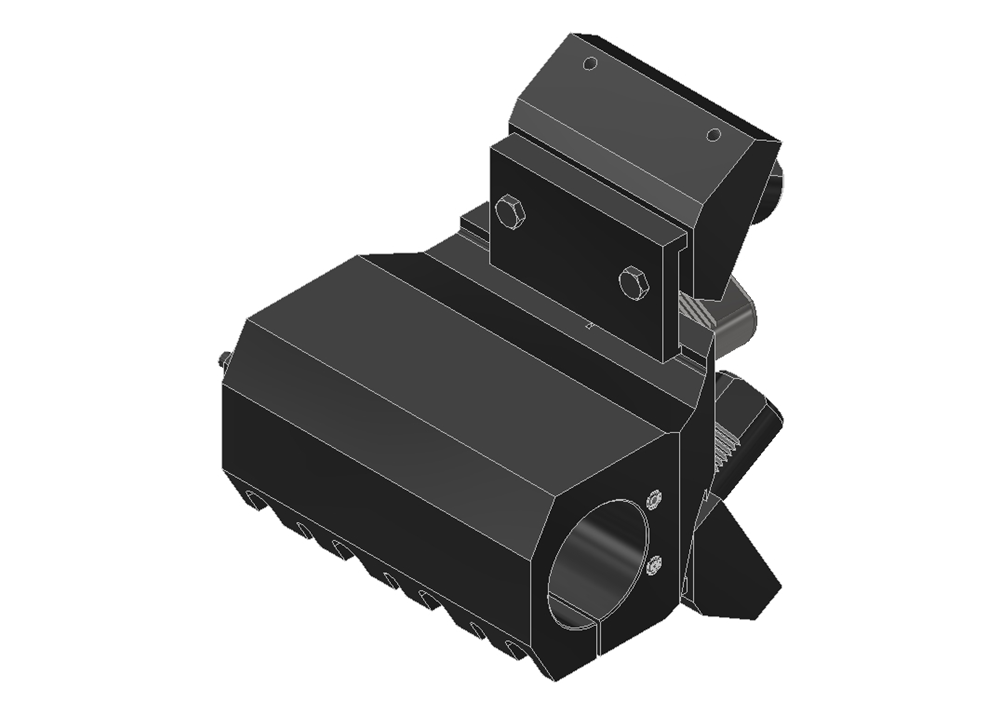

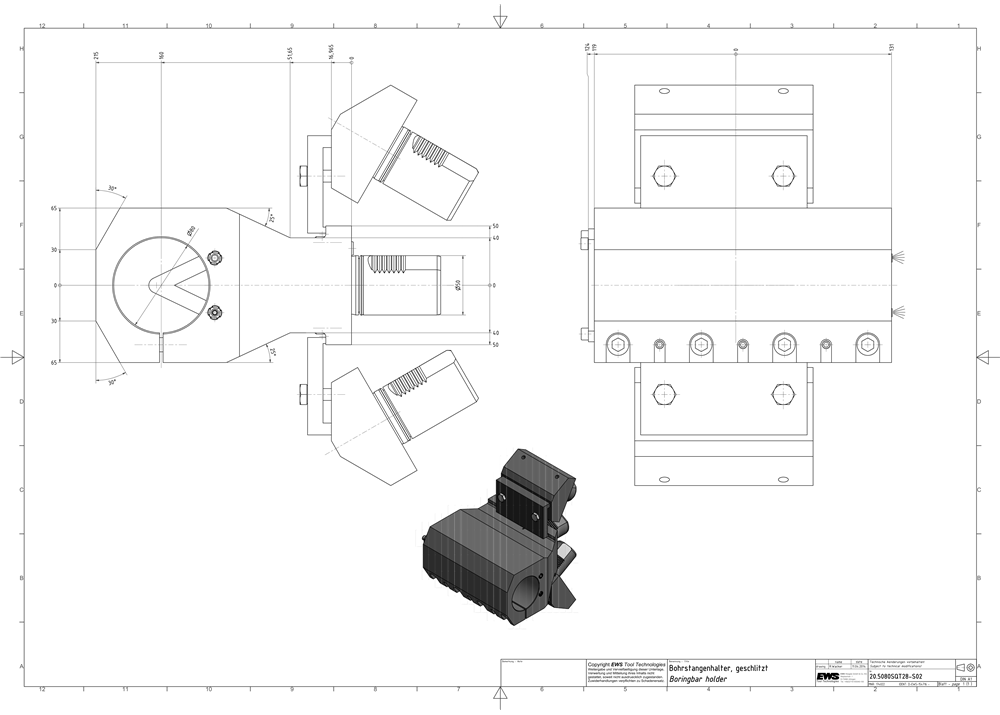

Boring bar holder slotted
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Cover not convertible.
- It is not possible to change the machining direction with the help of the cover between the main spindle or the counter spindle.
| Cantilever length (LPR) | 145.00 mm |
|---|---|
| Functional length (LF) | 105.00 mm |
| Functional width (WF) | 50.00 mm |
| Mounting diameter min. (DCONN) | 80.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI50 shaft rotated 30° |
| Interface size | Ø 80.0 (boring bar) |
| Tool orientation | 90° |
| Alignment system | Pin |
