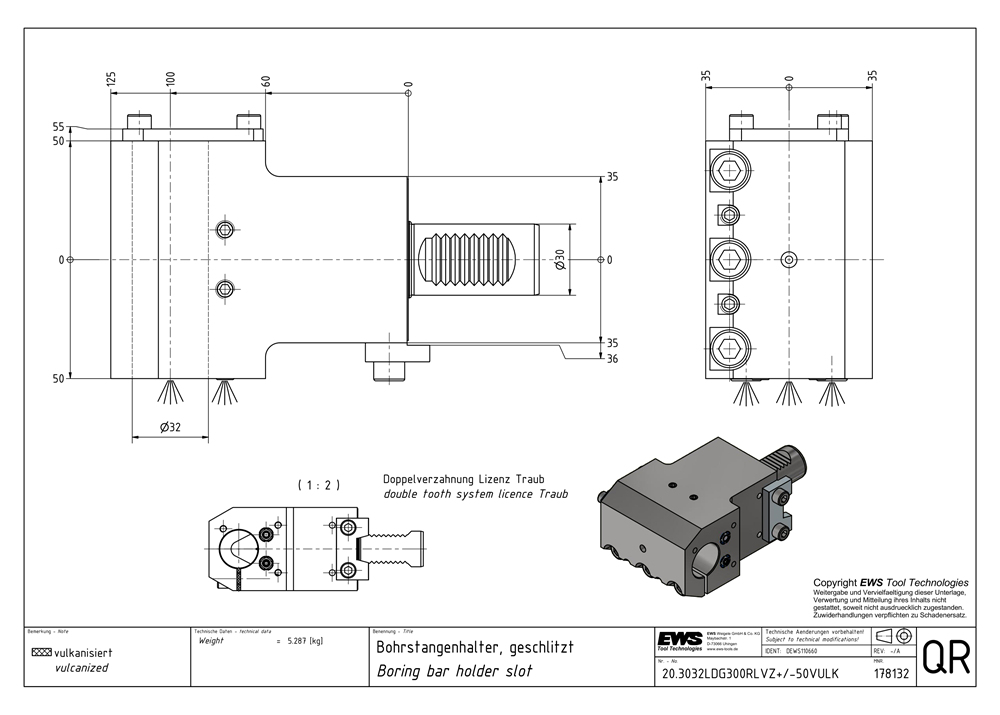

20.3032LDG300RLVZ+/-50VULK — Boringbar holder Shank- Ø30 hole -Ø 32 mm

Артикул: 178132

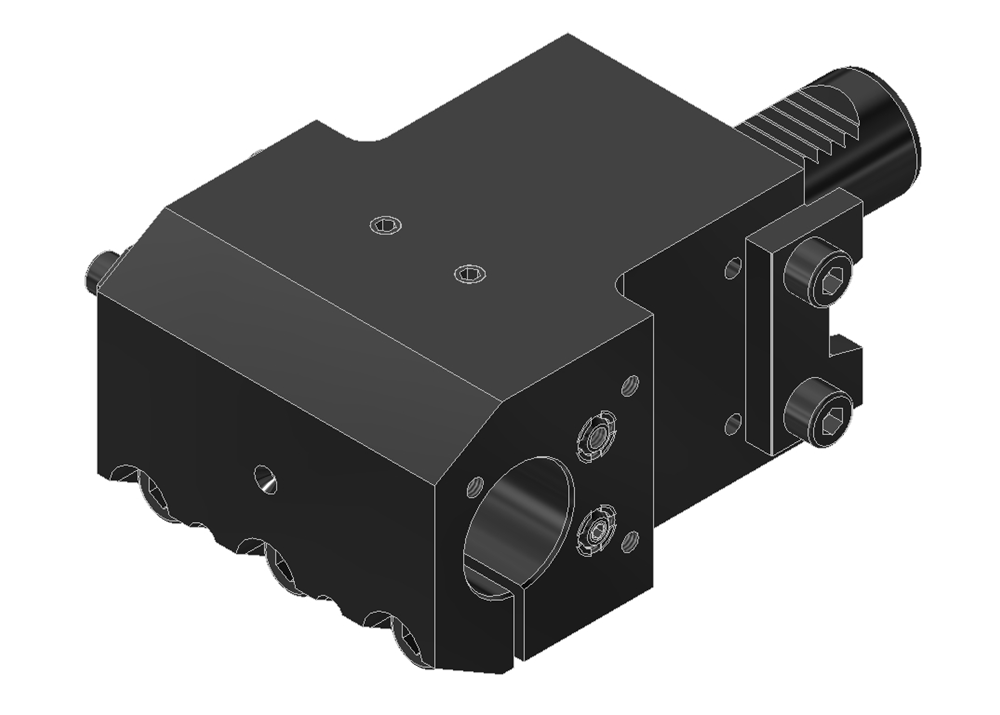

Boring bar holder slotted

Premium class tooling system for highest production efficiency — Made in Germany

Double toothing (Traub license)

  • VDI shank double toothed.
  • Tool holder can be rotated 180°.
  • Note: Rotatability may be restricted by alignment systems (e.g. Trifix).


Документация

Cantilever length (LPR) 125.00 mm
Functional length (LF) 100.00 mm
Functional width (WF) 50.00 mm
Mounting diameter min. (DCONN) 32.00 mm
Product group Tool holders and adapter
Product type Cylindrical tool holder
Shank size VDI30
Interface size Ø 32.0 (boring bar)
Convertible yes — cover
Rotatable main &amp’ counter spindle yes
Tool orientation 90°
Alignment system V-plate

Article number178132
Product weight5.287 KG
