Артикул: 217115

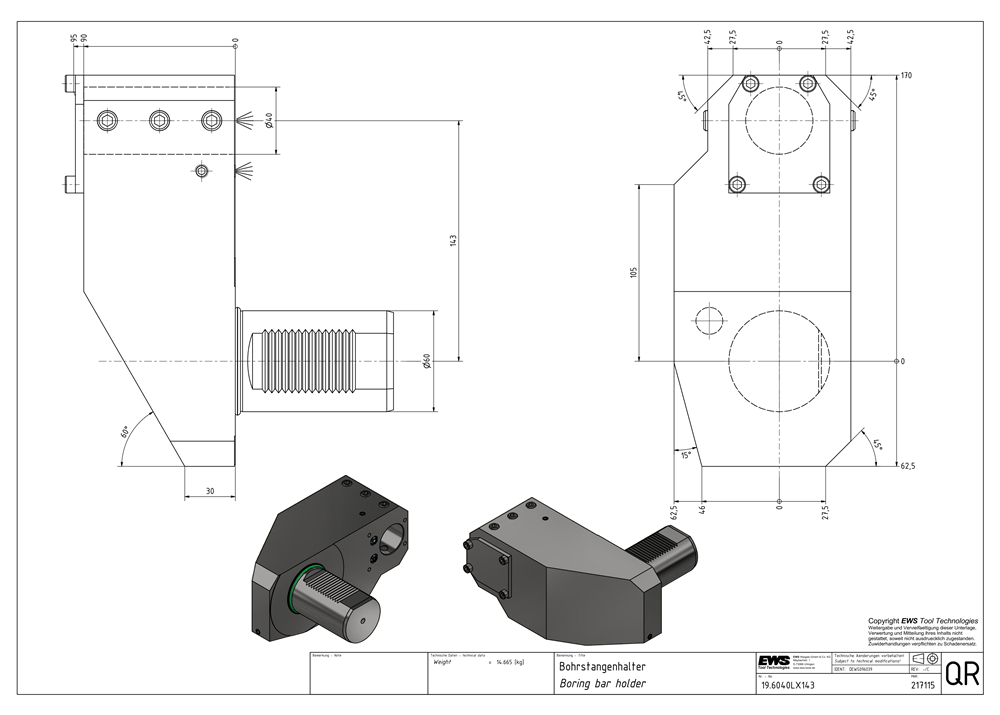

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 90.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Functional width (WF) | 143.00 mm |
| Mounting diameter min. (DCONN) | 40.00 mm |
| Clamping length max. (LSCX) | 90.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI60 |
| Interface size | Ø 40.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
