Артикул: S03773

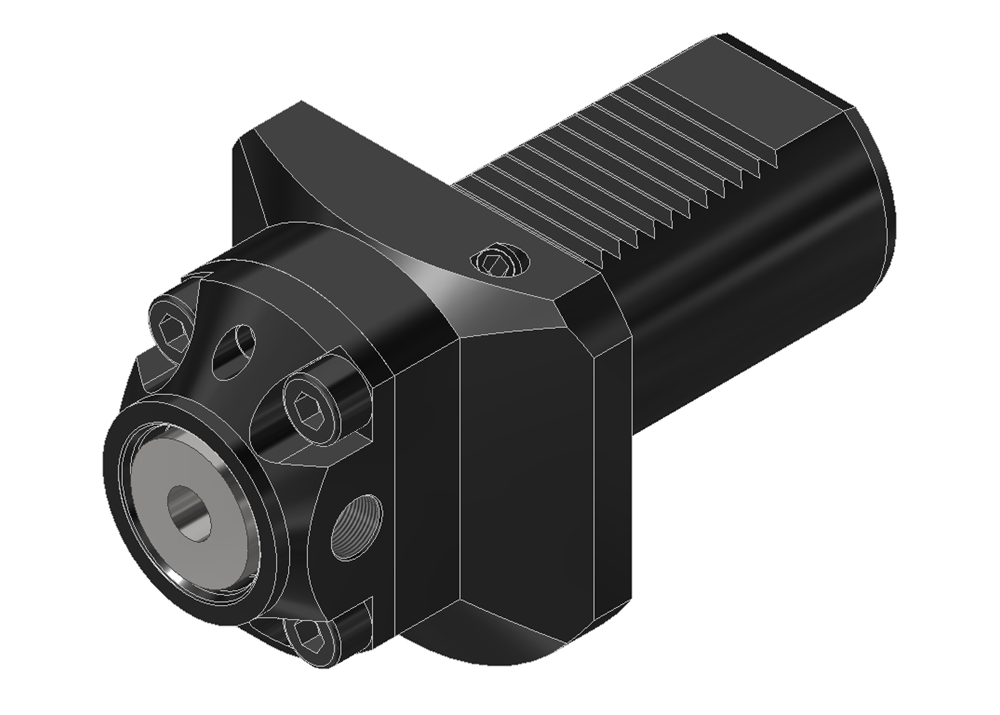

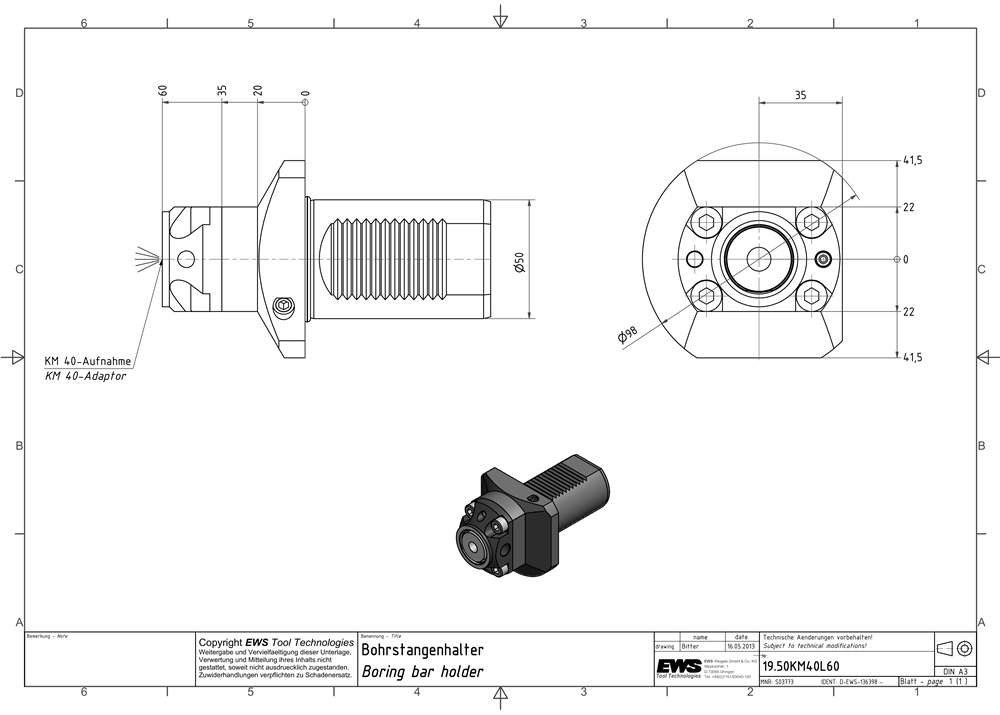

Boring bar holder KM 40 System (License Kennametal) Weight: 2.549
| Body diameter 1 (BD1) | 68.00 mm |
|---|---|
| Cantilever length (LPR) | 60.00 mm |
| Functional length (LF) | 60.00 mm |
| Product group | Tool holders and adapter |
| Product type | KM tool holder |
| Shank size | VDI50 |
| Interface size | KM 40 |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
