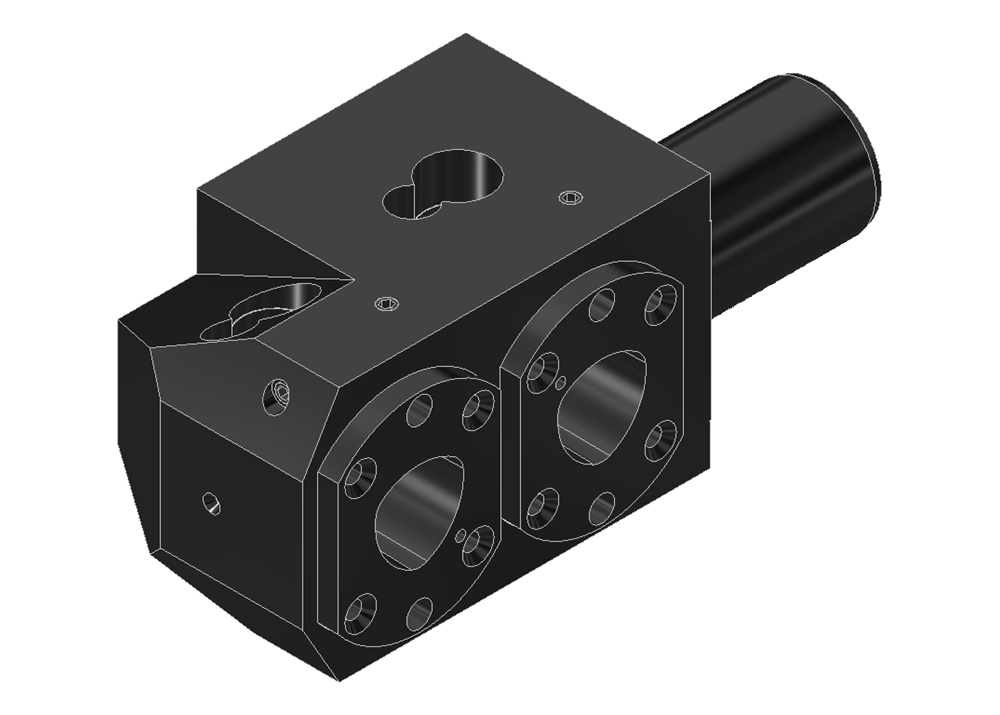

19.50C5DLX50.8X122.2Z43.5S01 — Tool adaptor Polygon ISO 26623 | PSC 50 double version left hand [050STAT_10_X50.8X122.2Z43.5S01]

Артикул: 179315

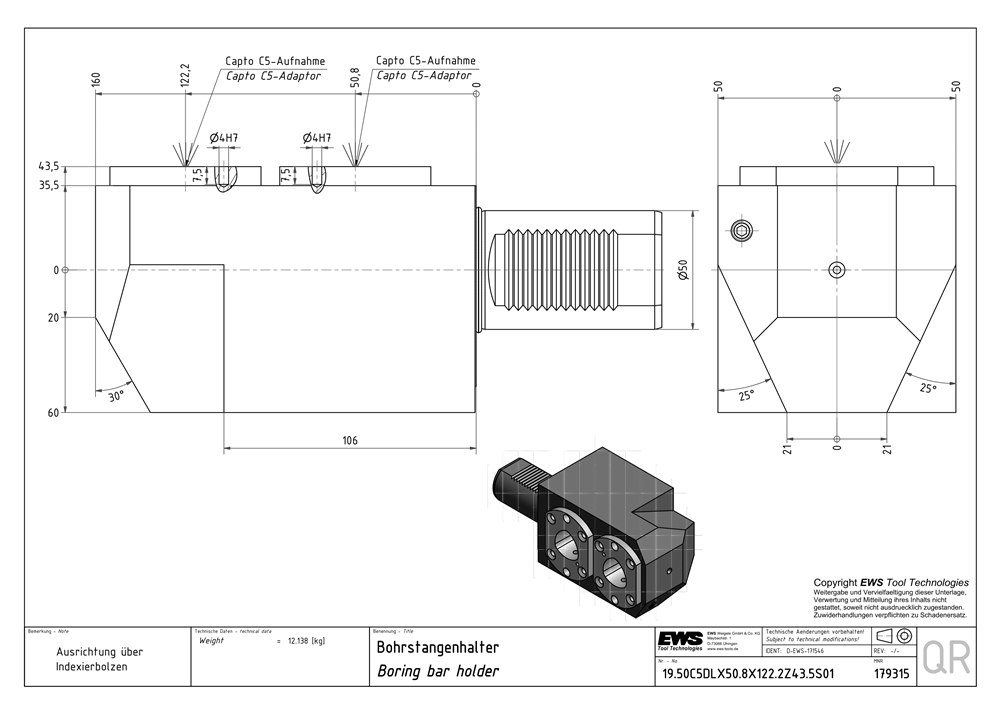

Boring Bar Holder

Premium class tooling system for highest production efficiency — Made in Germany

EWS.PSC — standardized interface

  • Size PSC 50:
    • Repeatability ≤ 0.01mm
    • Tightening torque 70 Nm
    • Clamping force 27 kN
  • Standardized adapters available worldwide
  • High force transmission
  • Easy handling
  • Interface for driven and static tools
  • Extra short adapters without gripper groove available — talk to us!


Документация

Product group Tool holders and adapter
Product type PSC tool holder
Shank size VDI50
Interface size PSC 50
Convertible yes — flange
Rotatable main &amp’ counter spindle No
Tool orientation

Article number179315
Product weight12.138 KG
