Артикул: 179914

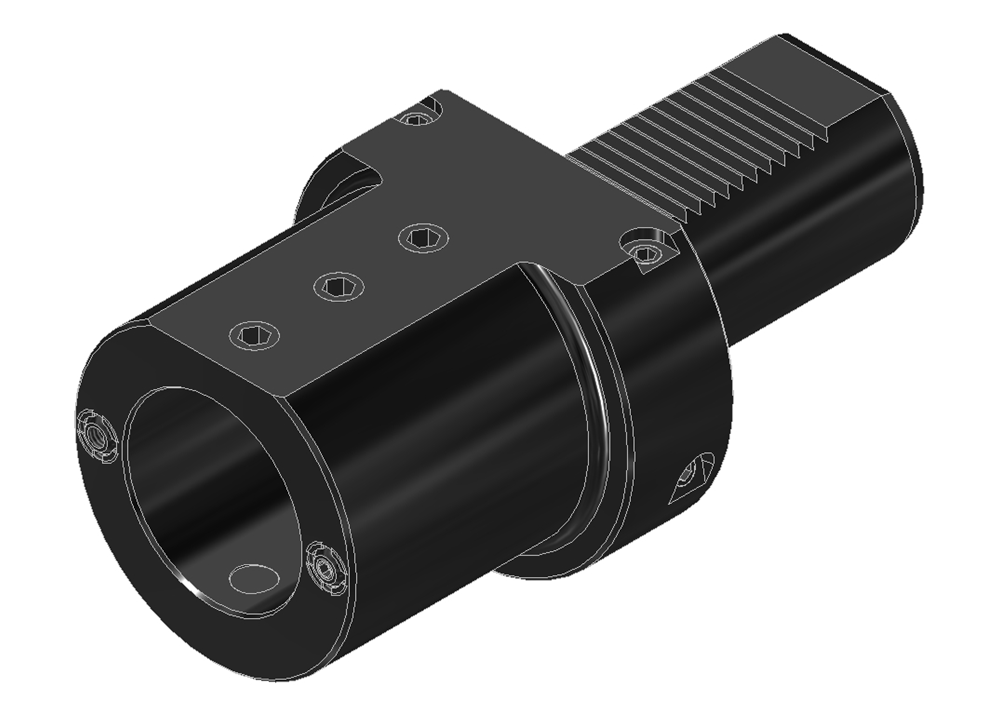

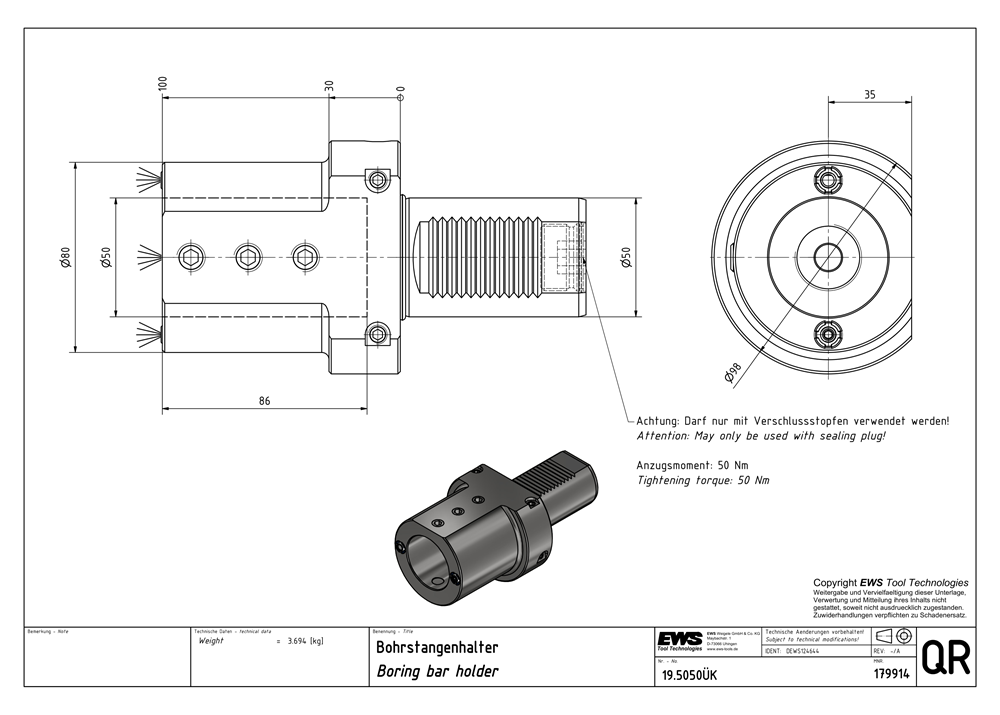

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
| Body diameter 1 (BD1) | 80.00 mm |
|---|---|
| Cantilever length (LPR) | 100.00 mm |
| Functional length (LF) | 14.00 mm |
| Mounting diameter min. (DCONN) | 50.00 mm |
| Clamping length max. (LSCX) | 86.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI50 |
| Interface size | Ø 50.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
