Артикул: 140722

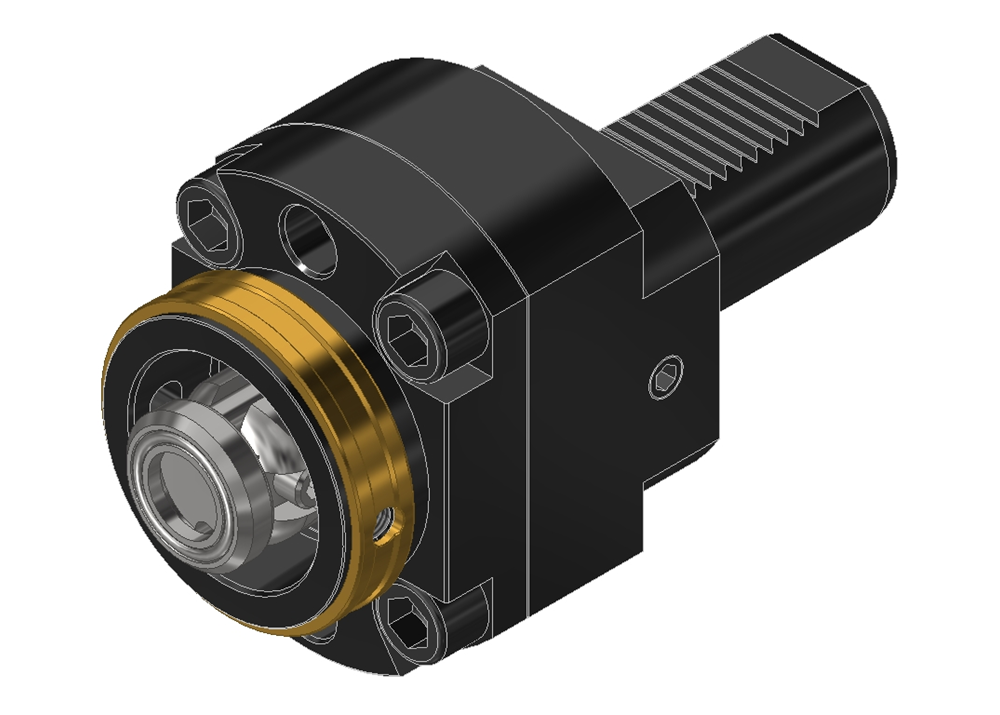

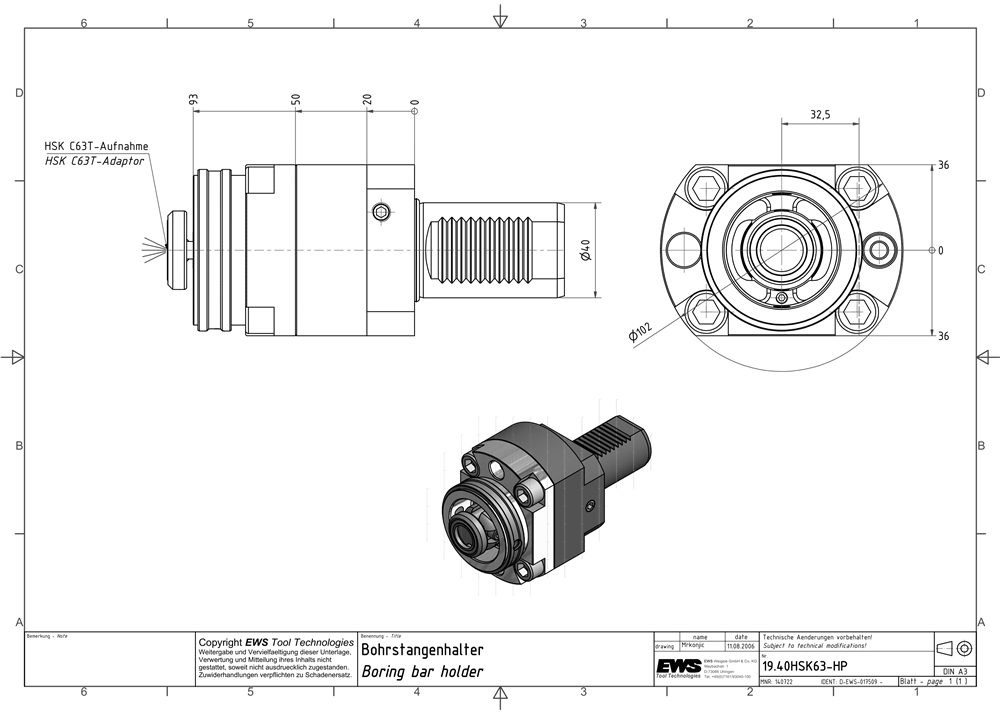

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
| Body diameter 1 (BD1) | 102.00 mm |
|---|---|
| Cantilever length (LPR) | 93.00 mm |
| Functional length (LF) | 93.00 mm |
| Product group | Tool holders and adapter |
| Product type | HSK tool holder |
| Shank size | VDI40 |
| Interface size | HSK-T63 |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
