Артикул: S03720

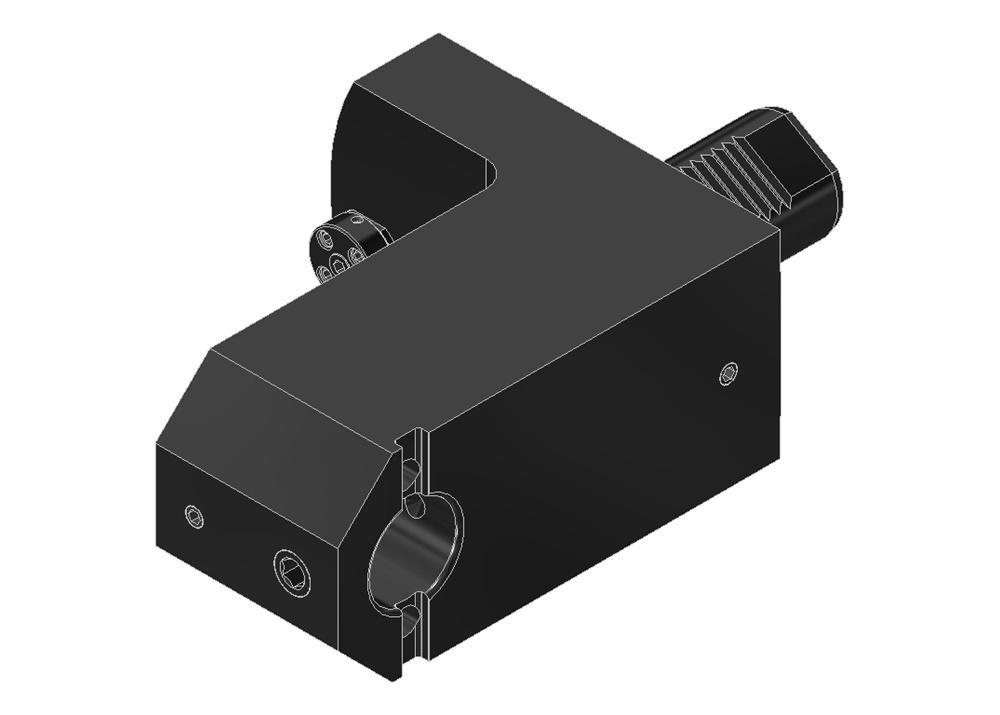

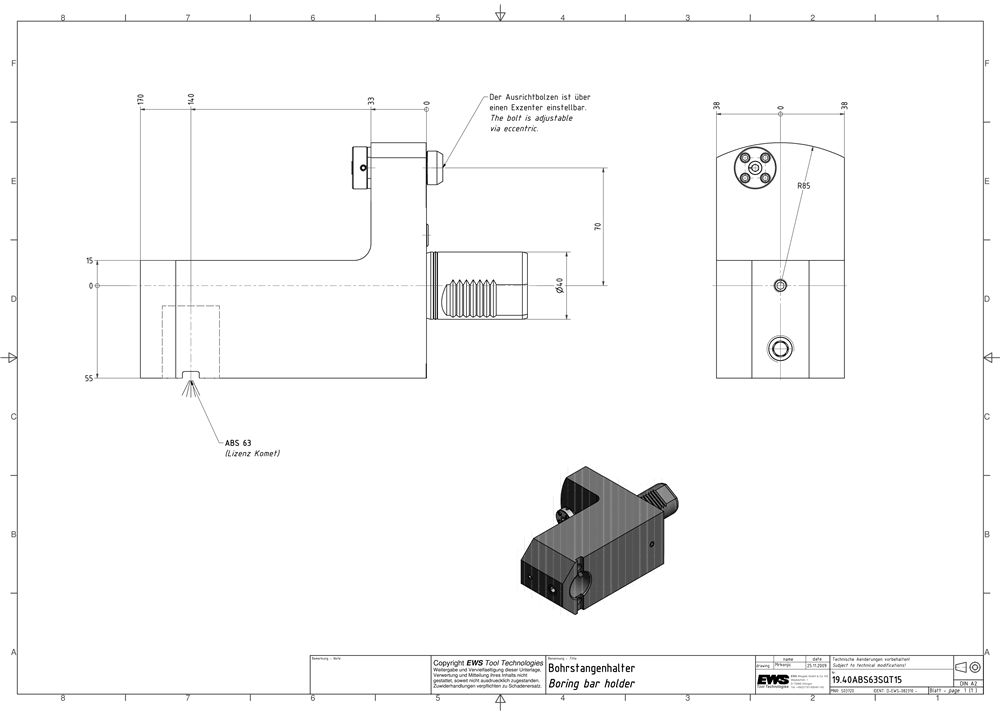

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 170.00 mm |
|---|---|
| Functional length (LF) | 140.00 mm |
| Functional width (WF) | 55.00 mm |
| Product group | Tool holders and adapter |
| Product type | ABS tool holder |
| Shank size | VDI40 shaft rotated 30° |
| Interface size | ABS 63 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Pin eccentrical, adjustable |
