Артикул: 171558

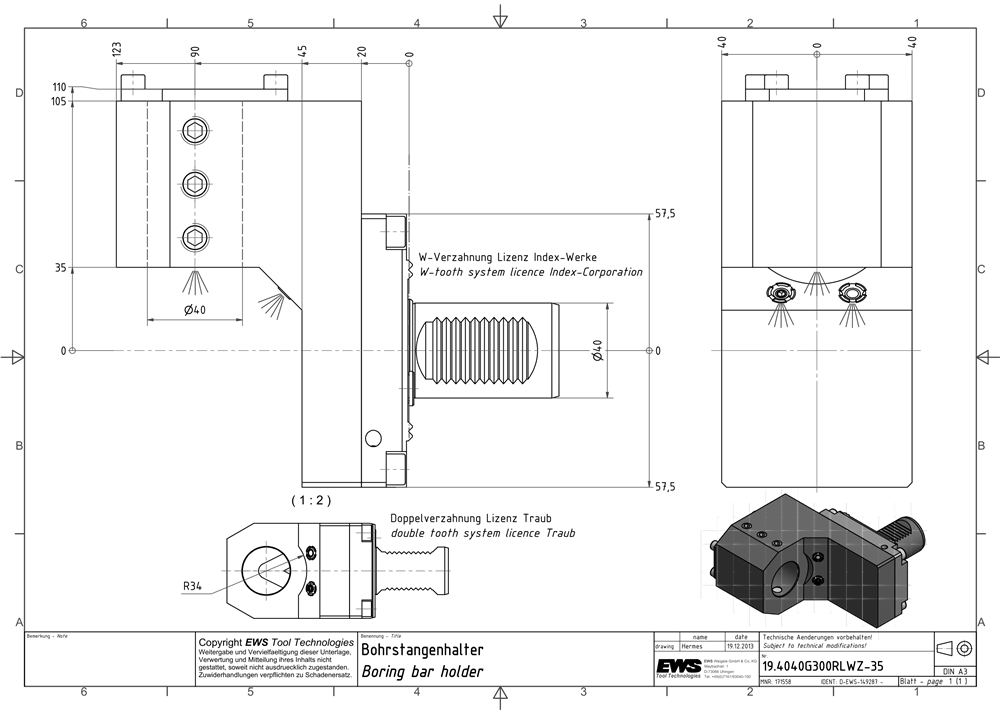

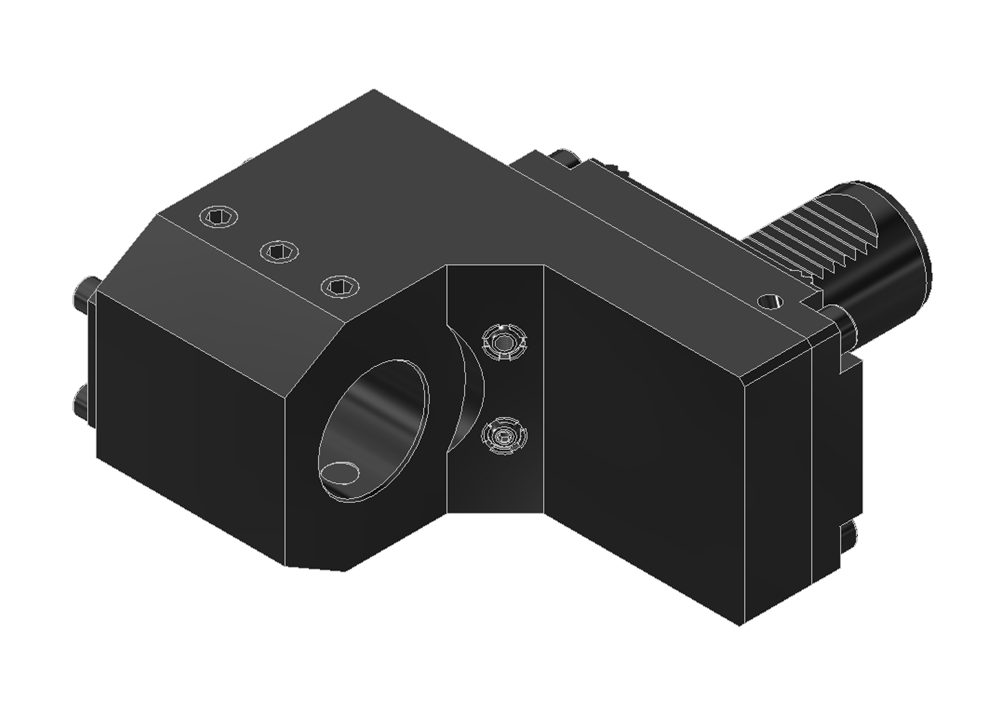

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
Technical feature
- Cover not convertible.
- It is not possible to change the machining direction with the help of the cover between the main spindle or the counter spindle.
| Cantilever length (LPR) | 123.00 mm |
|---|---|
| Functional length (LF) | 90.00 mm |
| Functional width (WF) | 35.00 mm |
| Mounting diameter min. (DCONN) | 40.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI40 |
| Interface size | Ø 40.0 (boring bar) |
| Convertible | No |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | W-serration |
