Артикул: 232764

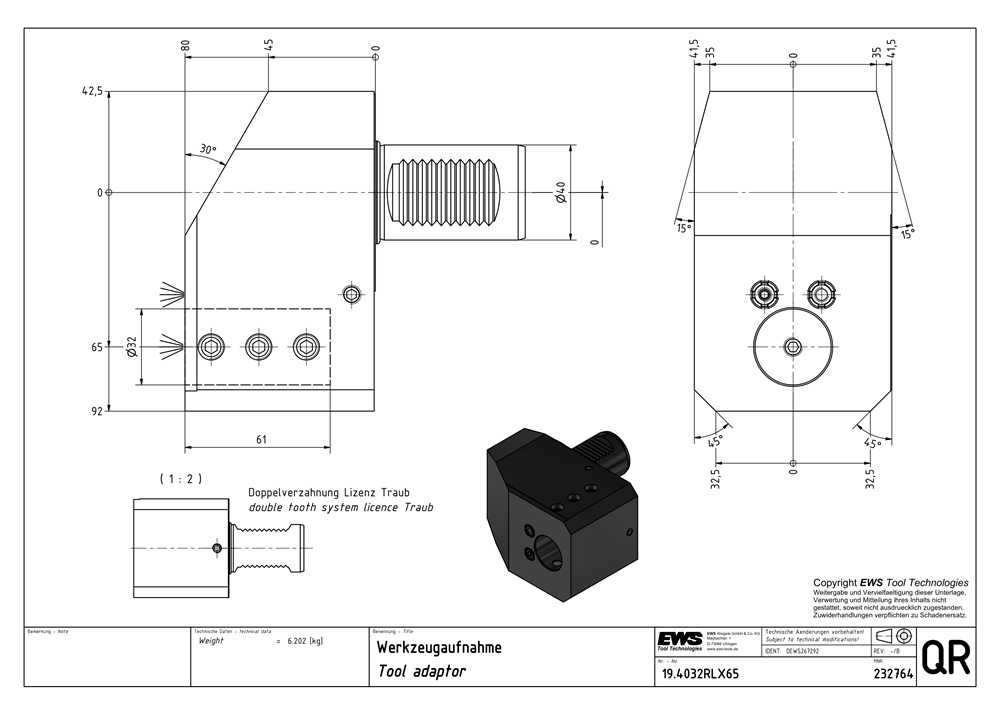

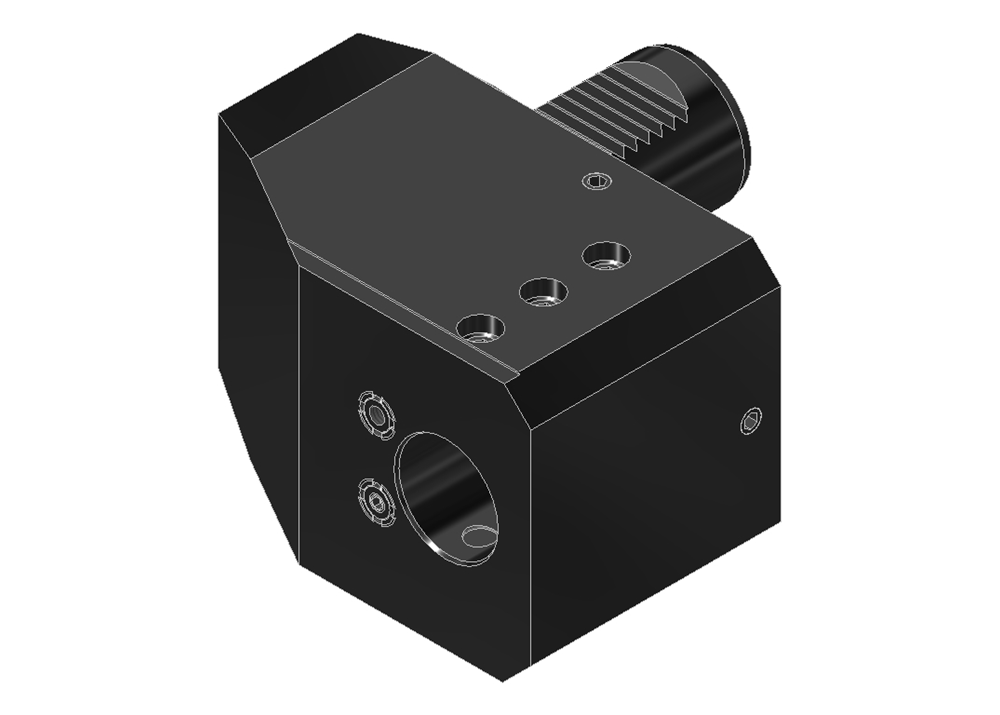

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Cantilever length (LPR) | 80.00 mm |
|---|---|
| Functional length (LF) | 19.00 mm |
| Functional width (WF) | 65.00 mm |
| Mounting diameter, min. (DCONN) | 32.00 mm |
| Clamping length, max. (LSCX) | 61.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI40 |
| Interface size | Ø 32.0 (boring bar) |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 0° |
