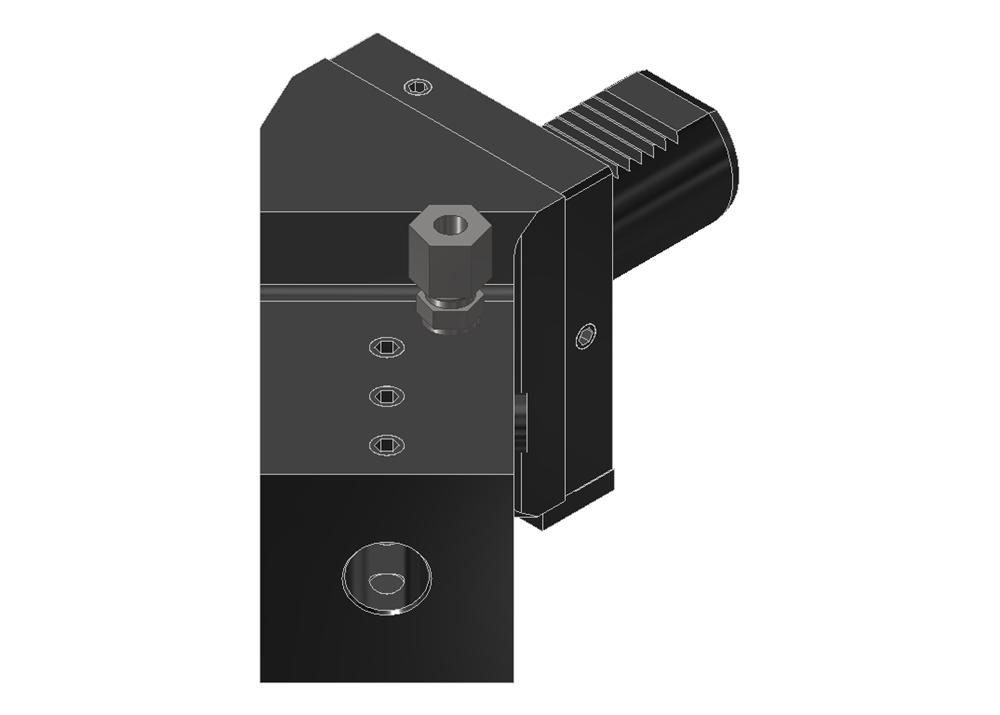

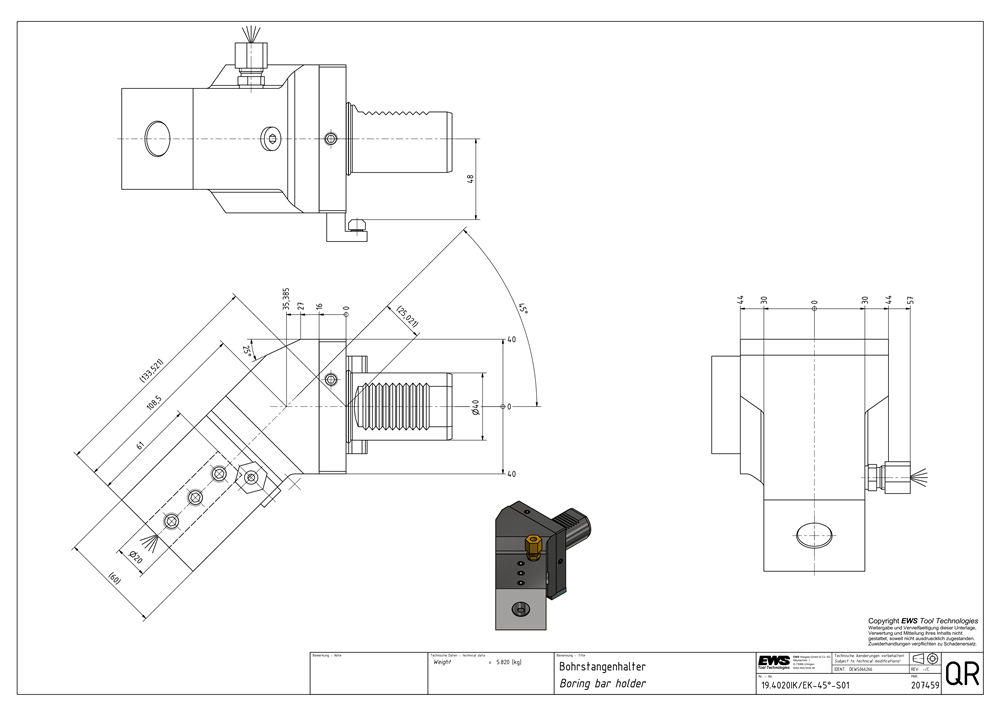

19.4020IK/EK-45°-S01 — Tool adaptor hole -Ø20 mm internal and external coolant [050STAT_10_-45°-S01]

Артикул: 207459

Boring Bar Holder

Premium class tooling system for highest production efficiency — Made in Germany


Документация

Mounting diameter min. (DCONN) 20.00 mm
Product group Tool holders and adapter
Product type Cylindrical tool holder
Shank size VDI40
Interface size Ø 20.0 (boring bar)
Rotatable main &amp’ counter spindle No

Article number207459
Product weight5.82 KG
