Артикул: 177345

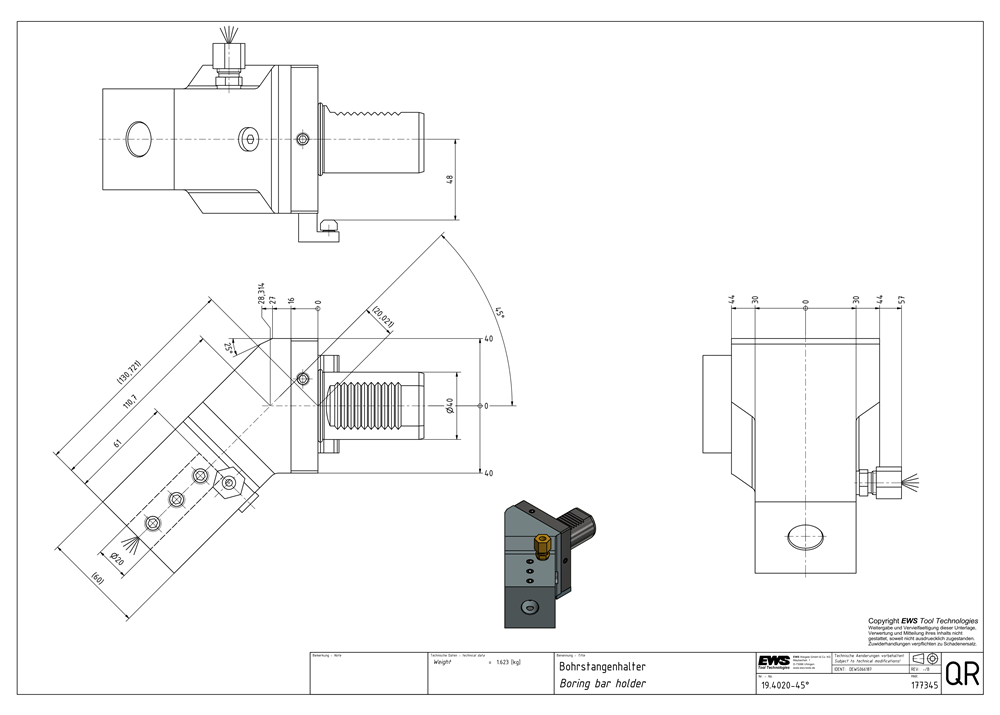

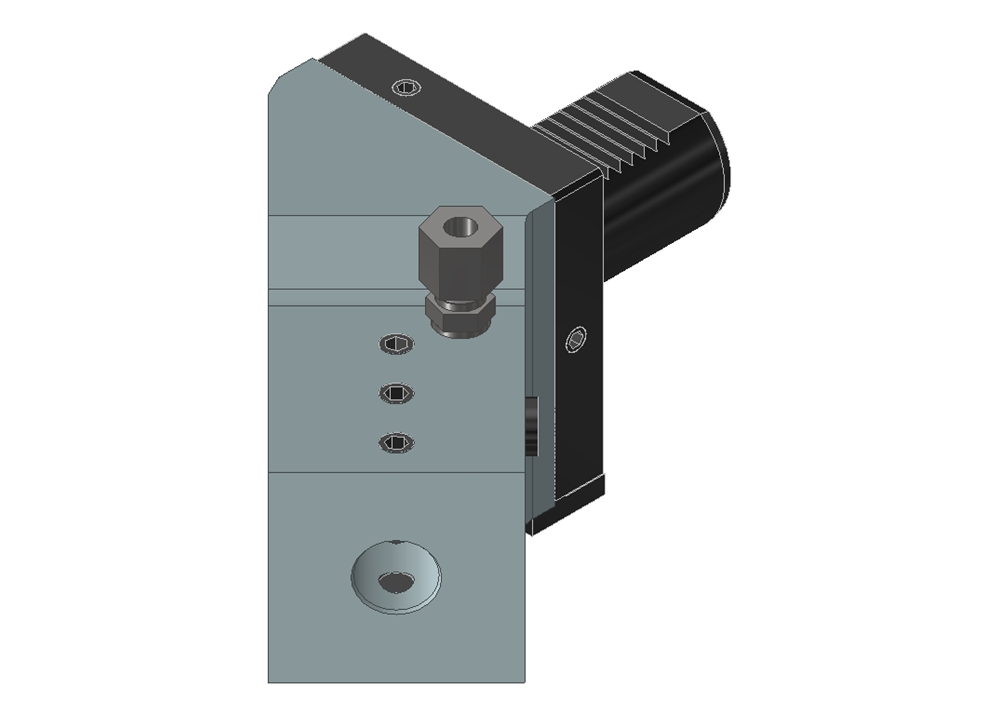

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
| Body diameter 1 (BD1) | 55.00 mm |
|---|---|
| Cantilever length (LPR) | 75.00 mm |
| Functional length (LF) | 14.00 mm |
| Mounting diameter min. (DCONN) | 20.00 mm |
| Clamping length max. (LSCX) | 61.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI40 |
| Interface size | Ø 20.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
