Артикул: S02742

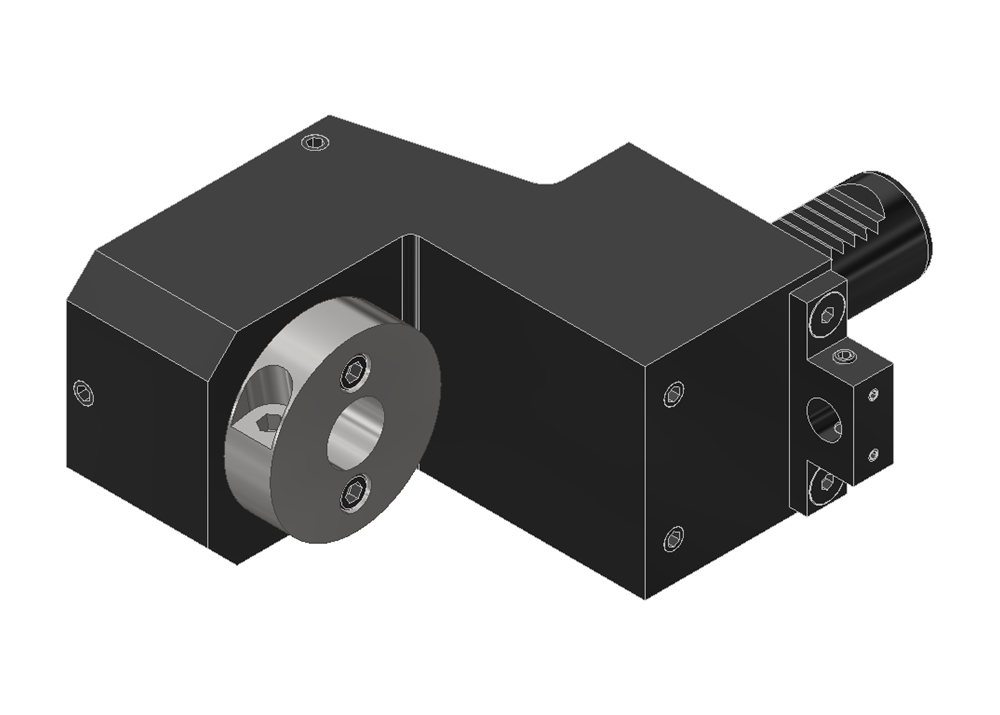

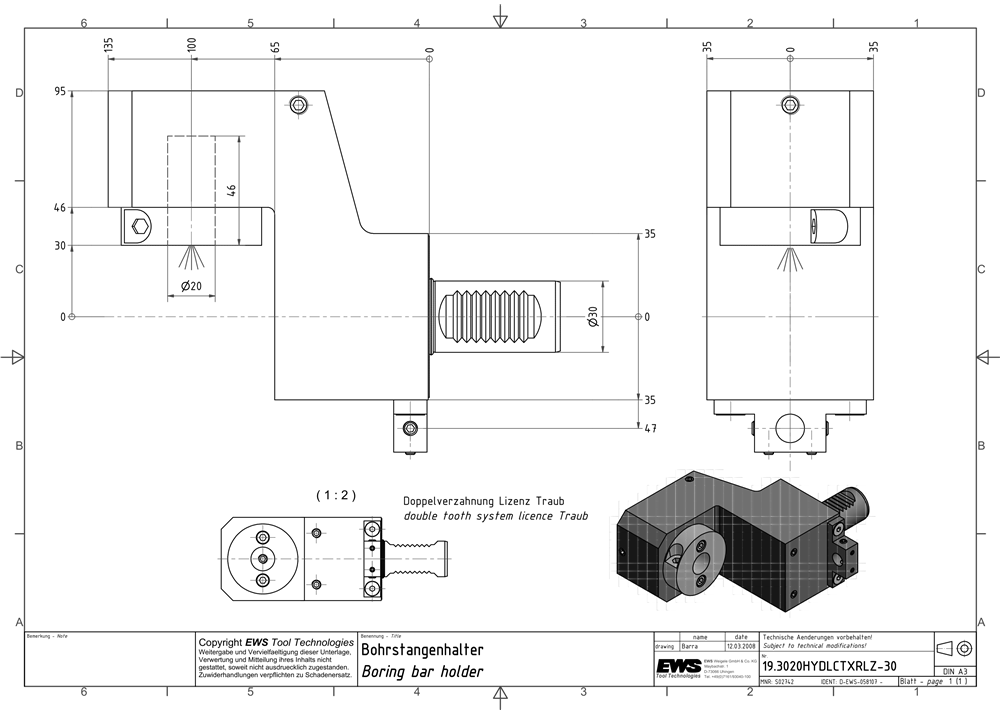

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Mounting diameter min. (DCONN) | 20.00 mm |
|---|---|
| Product group | Tool holders and adapter |
| Product type | Hydraulic expansion chuck |
| Shank size | VDI30 |
| Interface size | Hydraulic chuck Ø 20.0 |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | Pin (Bar) |
