Артикул: 216864

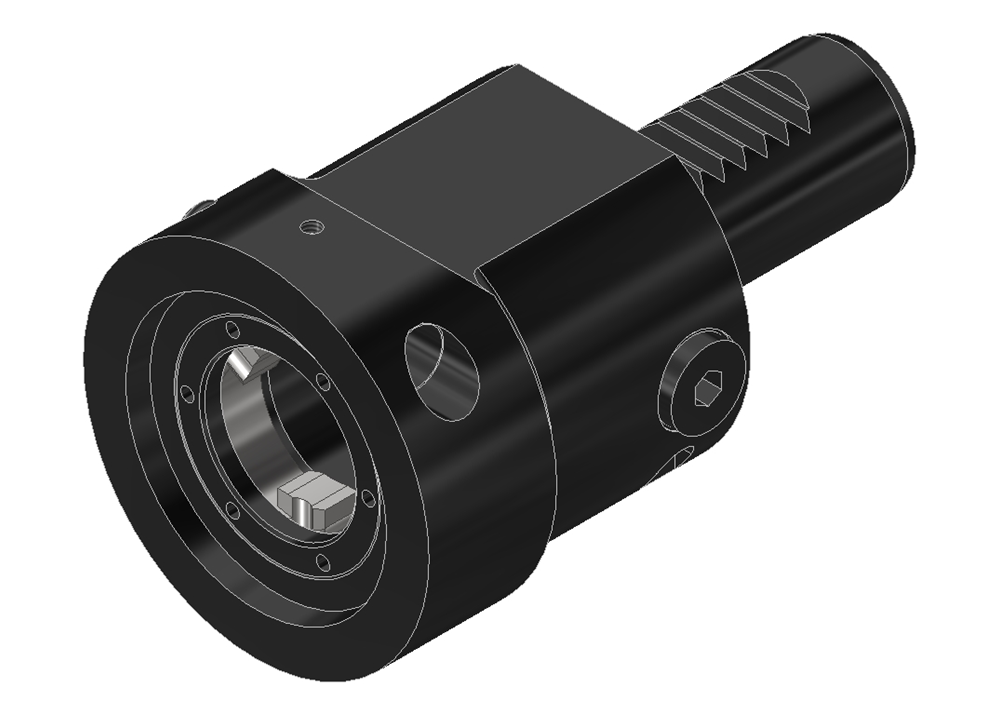

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
EWS.Varia VX — Tool change in 20 seconds!
With the patented EWS.Varia VX quick-change system you perform tool changes faster than your competitors.
- Tool change in less than 20 seconds
- One-hand operation
- Mechanically loaded tool ejection
- Transverse force-free clamping of inserts
- Safe torque transmission
- Large selection of adapters (collet Weldon milling arbor hydraulic expansion shrinking)
- Tightening torque of 6 Nm must be observed!
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).

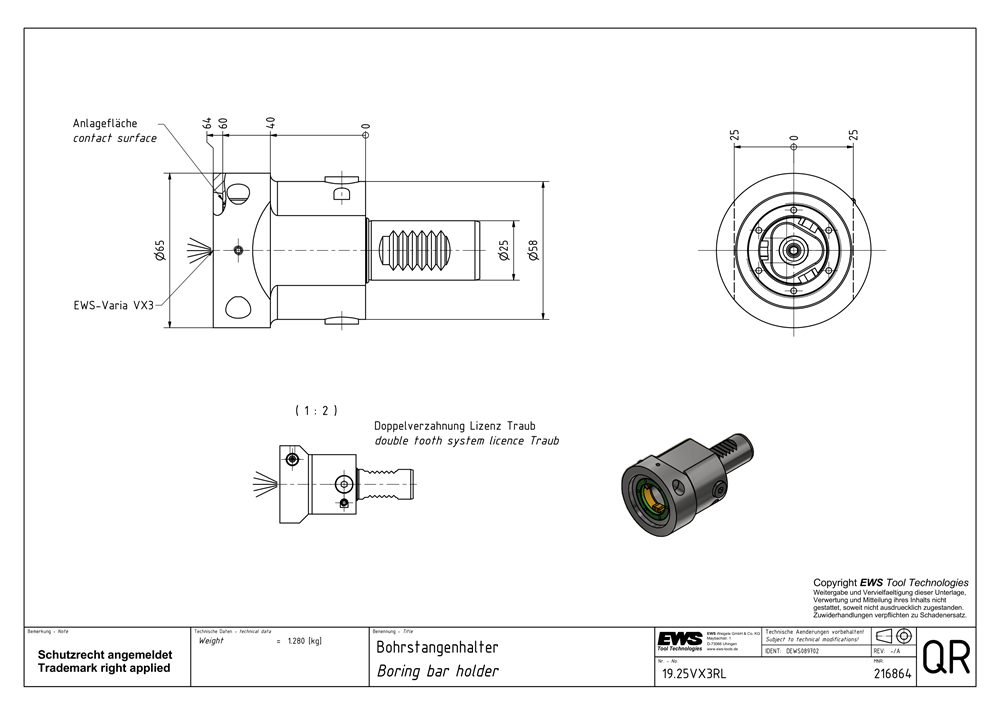

| Body diameter 1 (BD1) | 65.00 mm |
|---|---|
| Cantilever length (LPR) | 60.00 mm |
| Functional length (LF) | 64.00 mm |
| Product group | Tool holders and adapter |
| Product type | EWS.Varia holder |
| Shank size | VDI25 |
| Interface size | EWS Varia VX3 |
| Tool orientation | 0° |
