Артикул: 196943

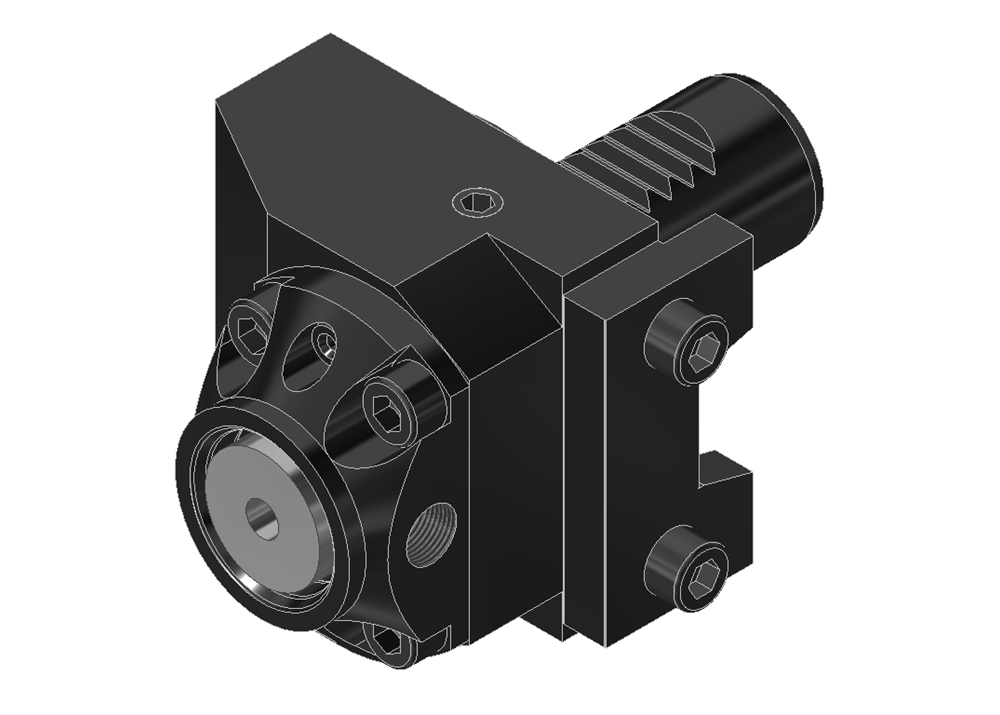

Boring bar holder KM 32 System (License Kennametal) Weight: 0.000
| Cantilever length (LPR) | 55.00 mm |
|---|---|
| Functional length (LF) | 55.00 mm |
| Functional width (WF) | 12.00 mm |
| Product group | Tool holders and adapter |
| Product type | KM tool holder |
| Shank size | VDI25 |
| Interface size | KM 32 |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 0° |
| Alignment system | V-plate |
