Артикул: S02901

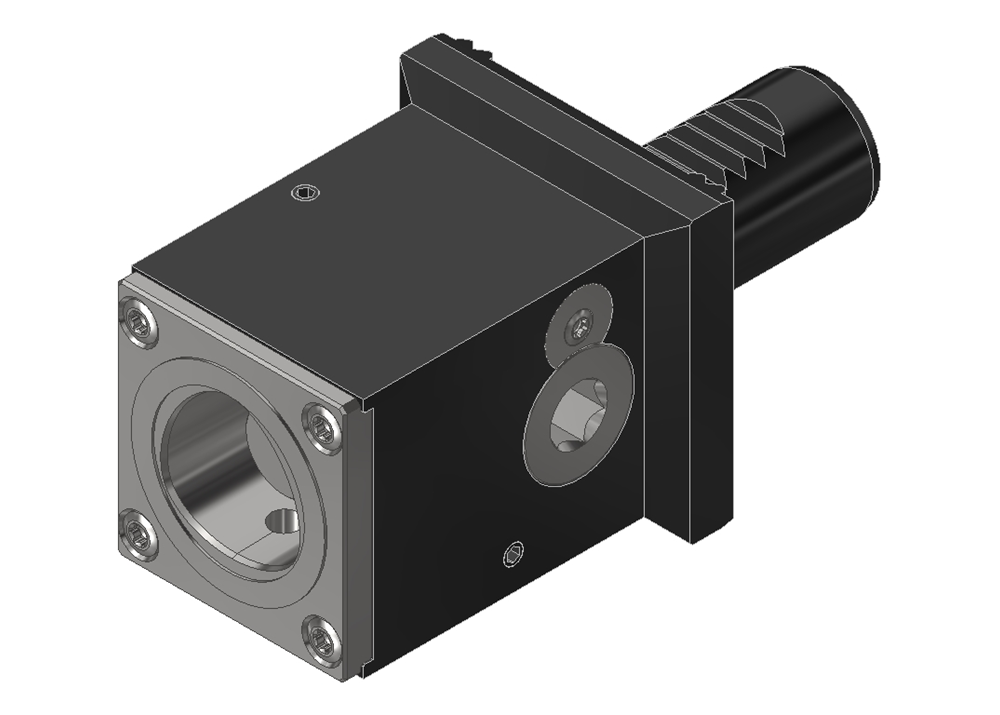

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 40:
- Repeatability ≤ 0.01mm
- Tightening torque 50 Nm
- Clamping force 21 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!

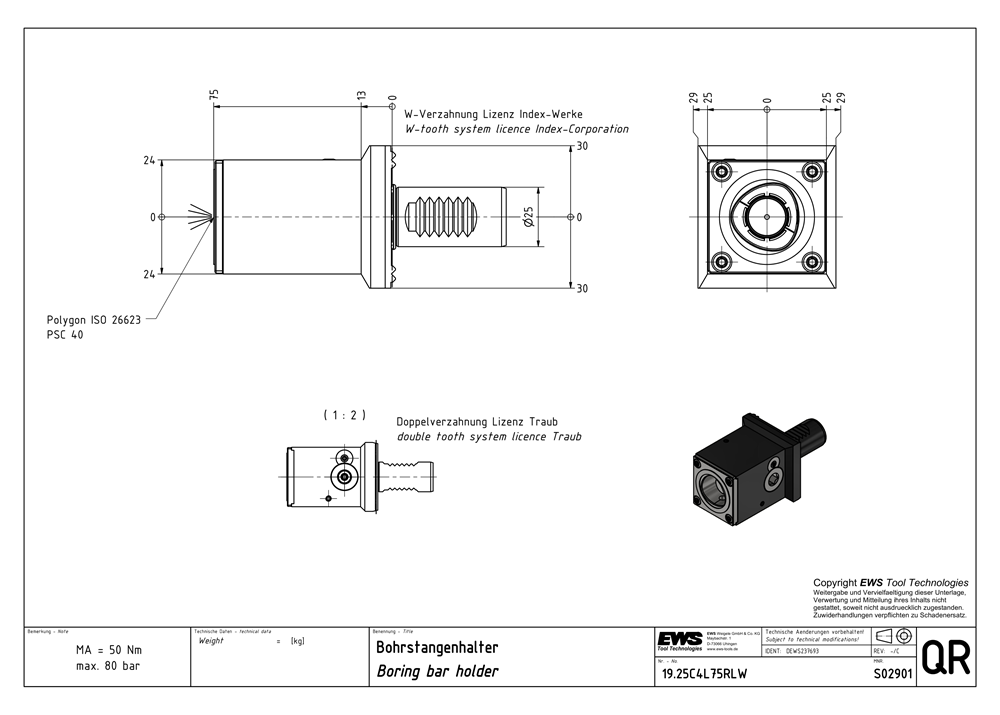

Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Body diameter 1 (BD1) | 0.00 mm |
|---|---|
| Cantilever length (LPR) | 75.00 mm |
| Functional length (LF) | 75.00 mm |
| Product group | Tool holders and adapter |
| Product type | PSC tool holder |
| Shank size | VDI25 |
| Interface size | PSC 40 |
| Convertible | yes — flange |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 0° |
| Alignment system | W-serration |
