Артикул: S04852

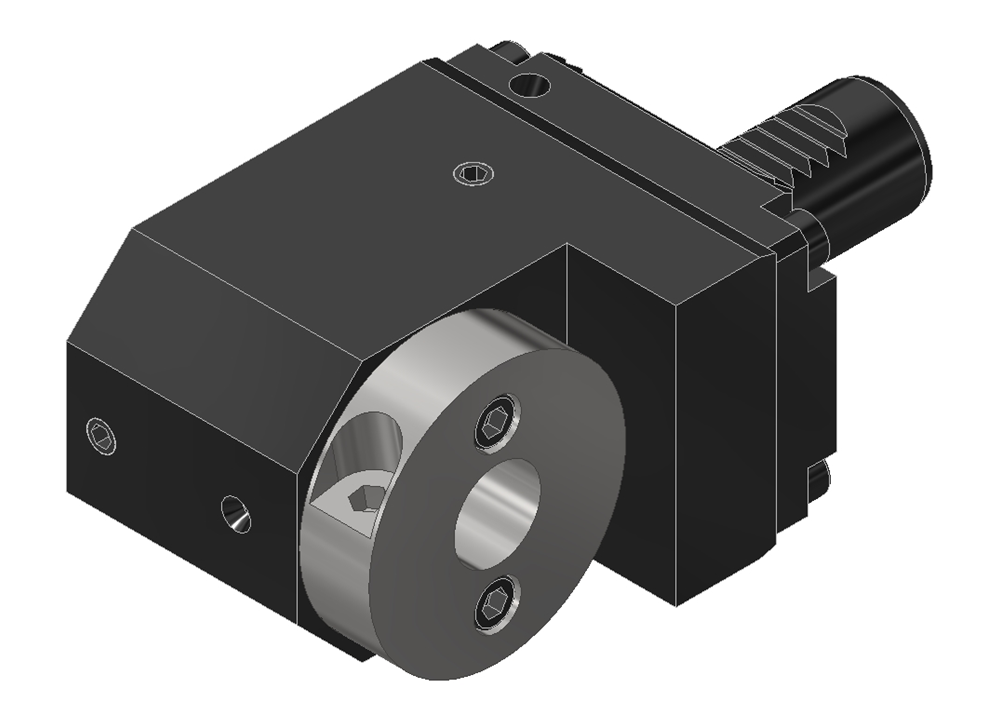

Boring Bar Holder
Premium class tooling system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).

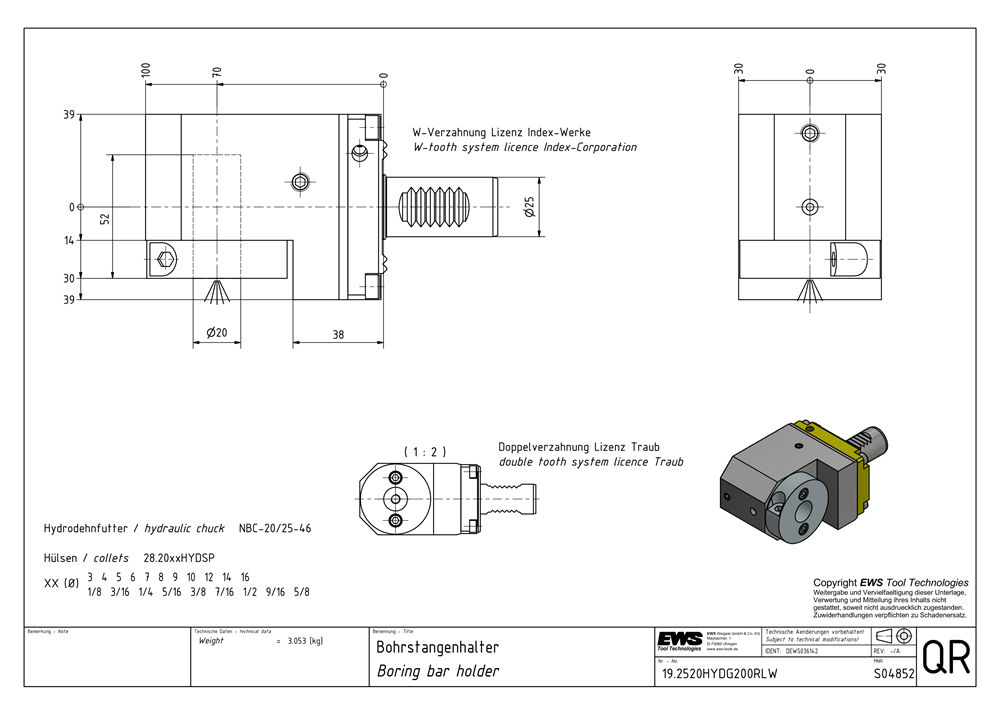

| Cantilever length (LPR) | 100.00 mm |
|---|---|
| Functional length (LF) | 70.00 mm |
| Functional width (WF) | 30.00 mm |
| Mounting diameter min. (DCONN) | 20.00 mm |
| Clamping length max. (LSCX) | 52.00 mm |
| Product group | Tool holders and adapter |
| Product type | Hydraulic expansion chuck |
| Shank size | VDI25 |
| Interface size | Hydraulic chuck Ø 20.0 |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | W-serration |
