Артикул: 172069

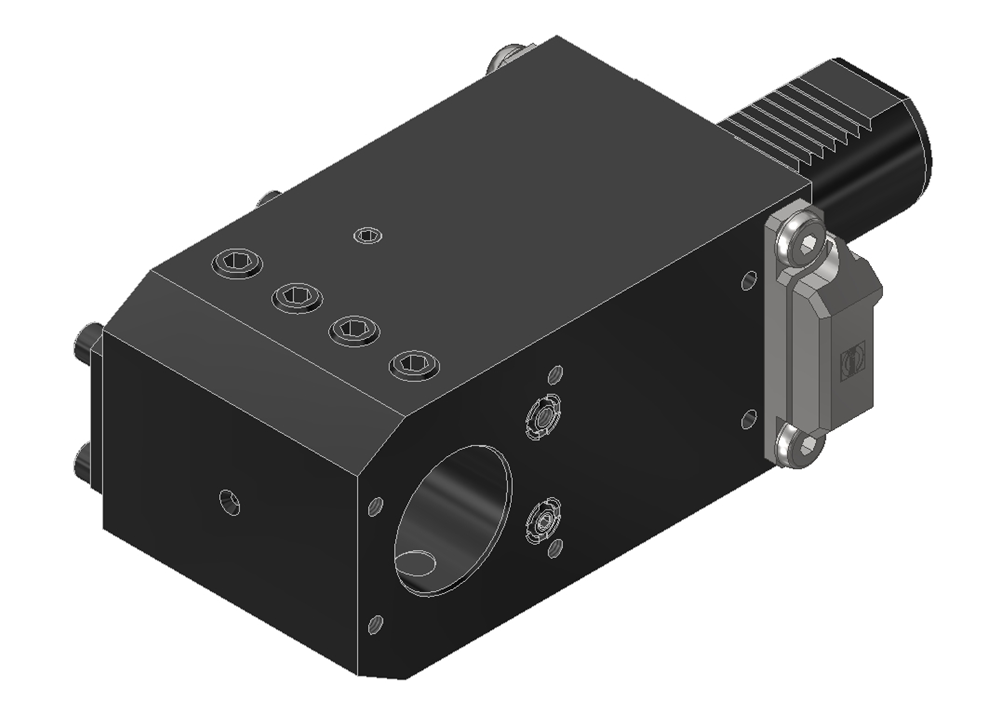

Combination holder for internal and external cooling
Premium class mold system for highest production efficiency — Made in Germany
Trifix© (TF) alignment system
- Tool completely preset
- Faster setup of your machine
- Repeatability < 6µm at 200mm throat depth
- Positioning accuracy of 0.01mm from one station to another

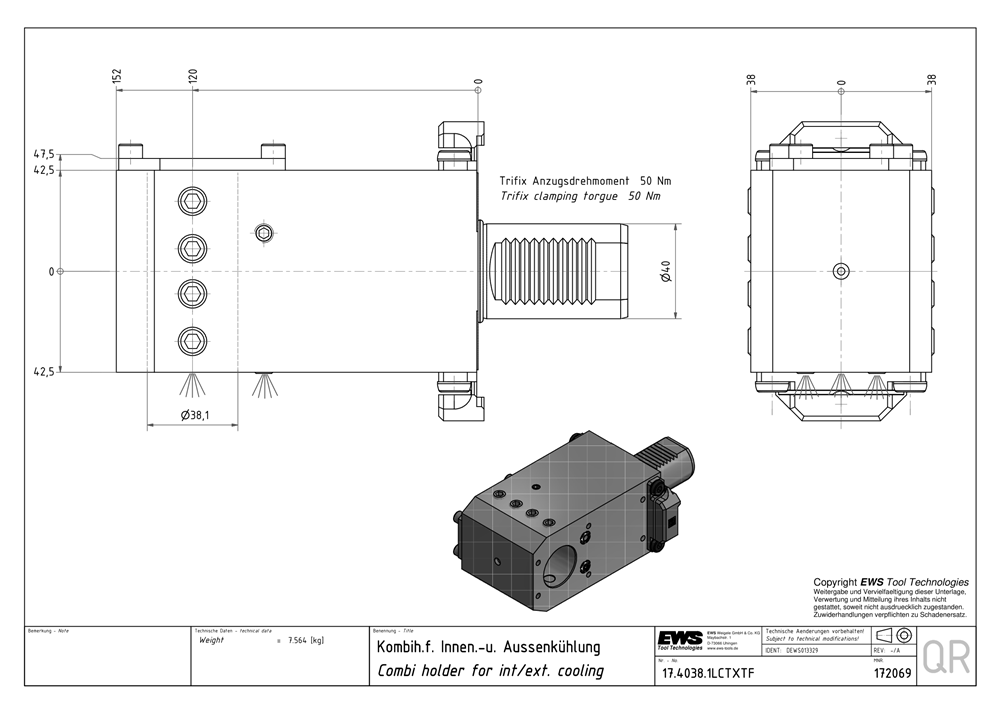

| Cantilever length (LPR) | 152.00 mm |
|---|---|
| Functional length (LF) | 120.00 mm |
| Functional width (WF) | 42.50 mm |
| Mounting diameter min. (DCONN) | 38.10 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI40 |
| Interface size | Boring bar Ø 1 1/2″ |
| Convertible | yes — cover |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Trifix |
