Артикул: 182206

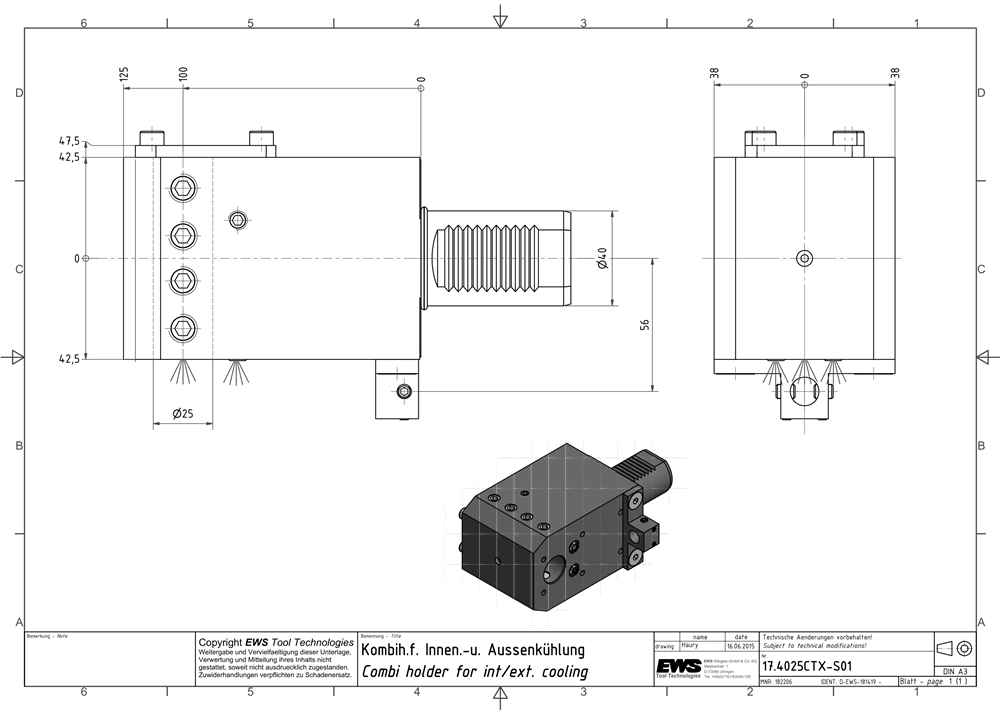

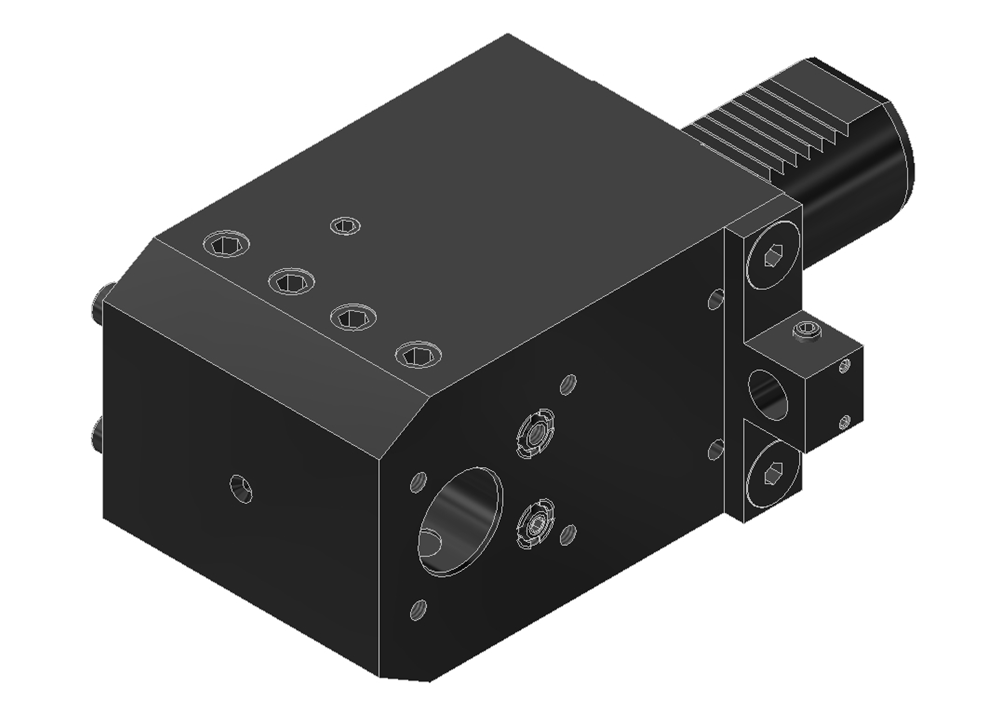

Combination holder for internal and external cooling
Premium class mold system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 125.00 mm |
|---|---|
| Functional length (LF) | 100.00 mm |
| Functional width (WF) | 42.50 mm |
| Mounting diameter min. (DCONN) | 25.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI40 |
| Interface size | Ø 25.0 (boring bar) |
| Convertible | yes — cover |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Pin (Bar) |
