Артикул: S04315

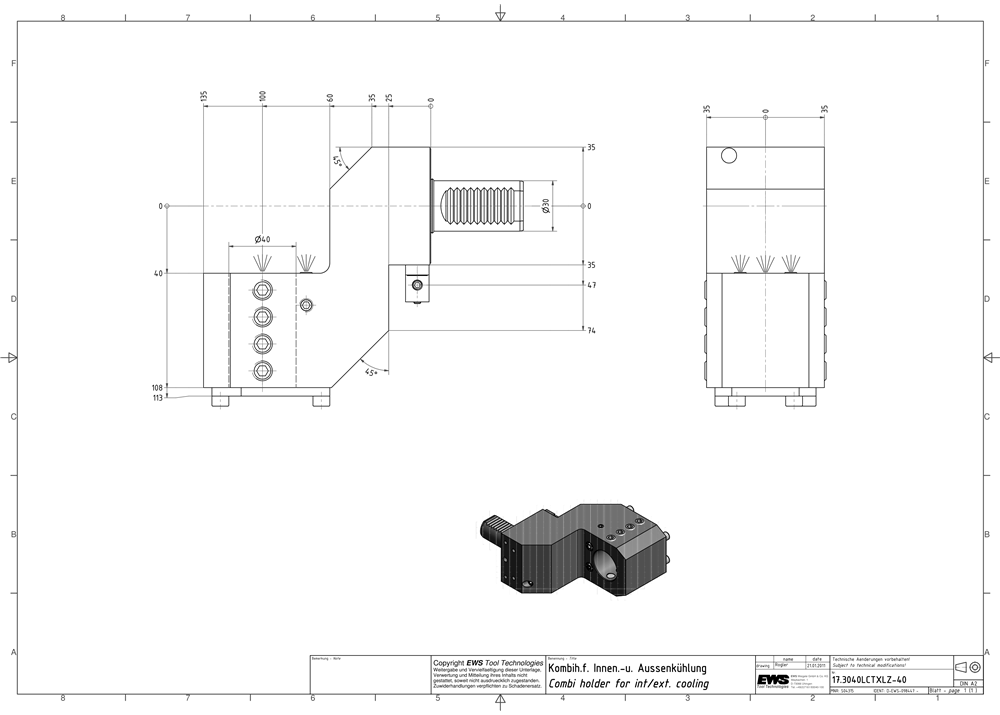

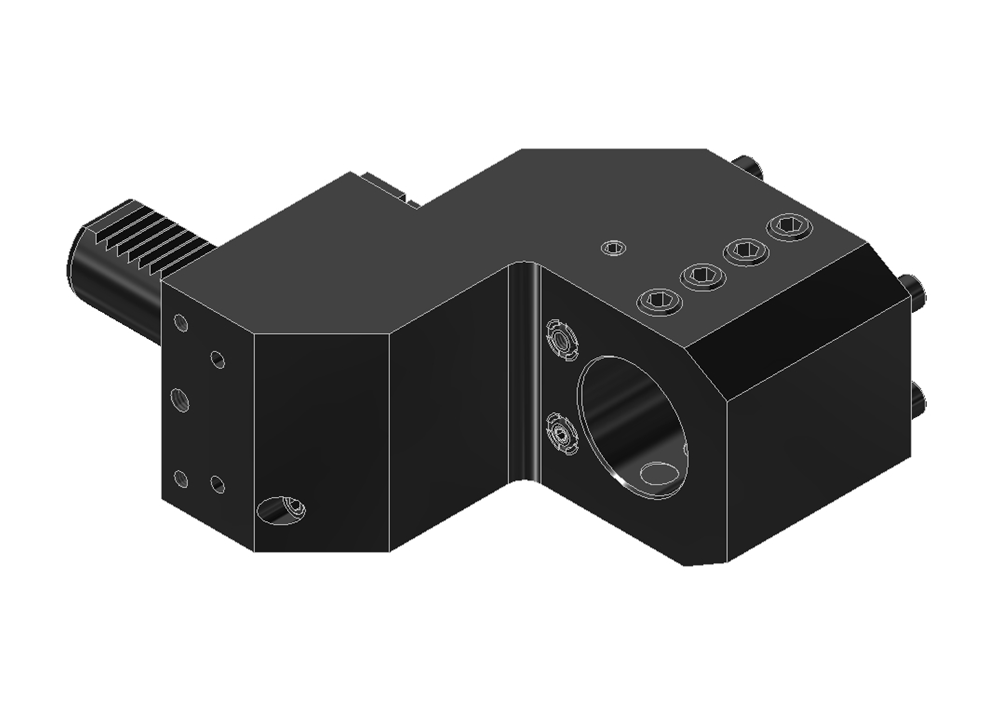

Combiholder Dia. 40 Weight: 5.694
| Cantilever length (LPR) | 135.00 mm |
|---|---|
| Functional length (LF) | 100.00 mm |
| Functional width (WF) | 40.00 mm |
| Mounting diameter, min. (DCONN) | 40.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI30 |
| Interface size | Ø 40.0 (boring bar) |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Pin (Bar) |
