Артикул: 119959

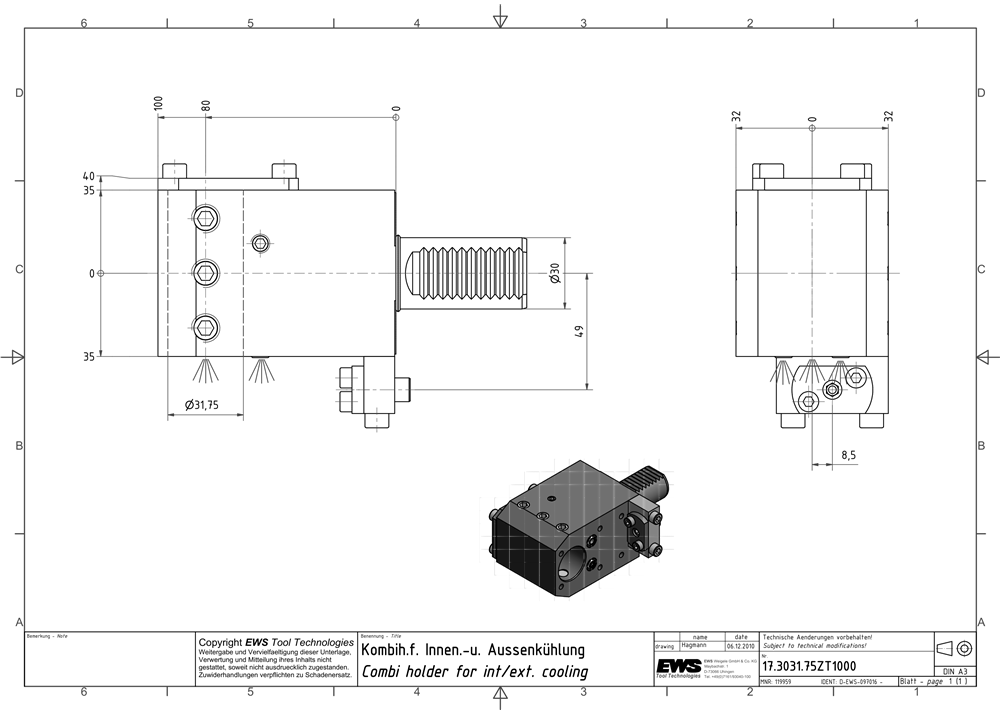

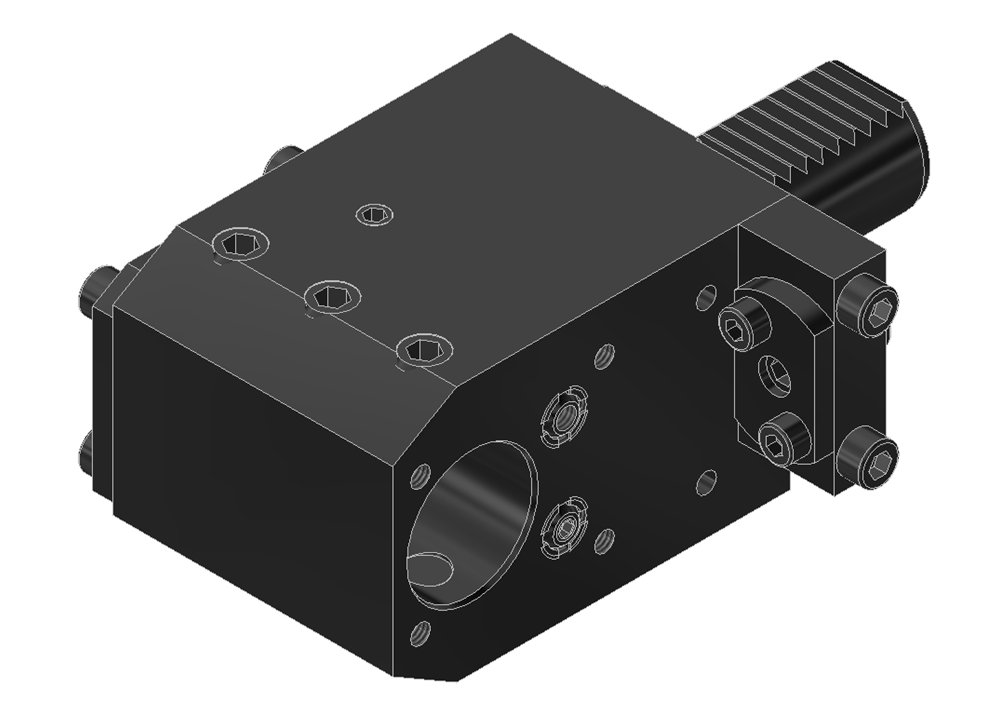

Combination holder for internal and external cooling
Premium class mold system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 100.00 mm |
|---|---|
| Functional length (LF) | 80.00 mm |
| Functional width (WF) | 35.00 mm |
| Mounting diameter, min. (DCONN) | 31.75 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | VDI30 |
| Interface size | Boring bar Ø 1 1/4″ |
| Convertible | yes — cover |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Pin eccentrical, adjustable |
