Артикул: 165602

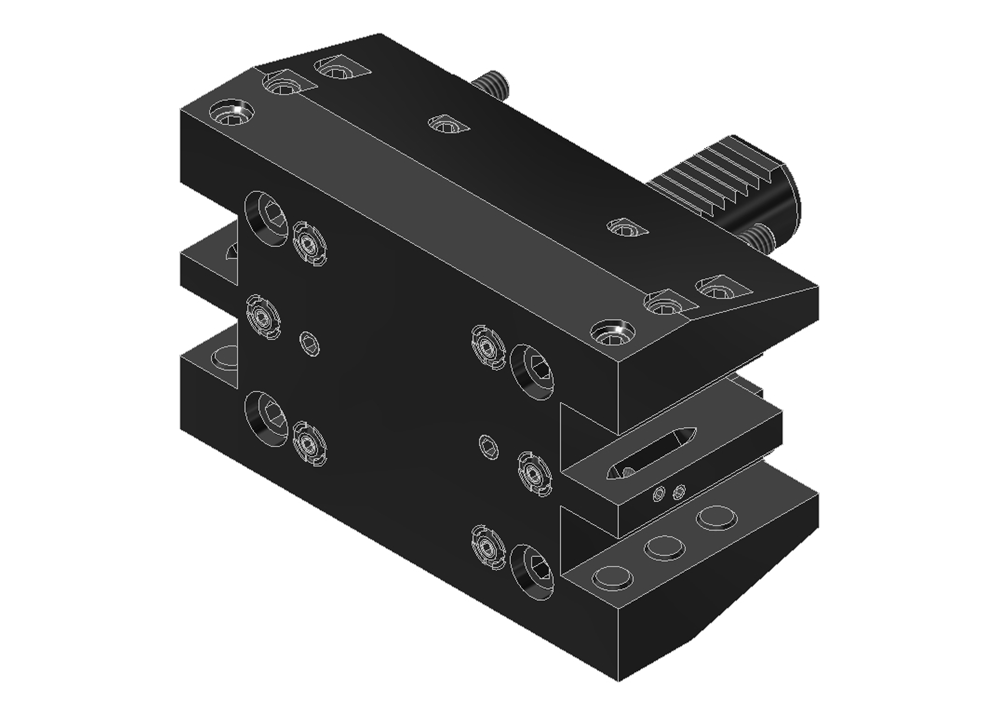

Square multiple holder, form D1
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Tool holder has two holder in Y-arrangement.
- Tool holder is applicable to main spindle and counter spindle.

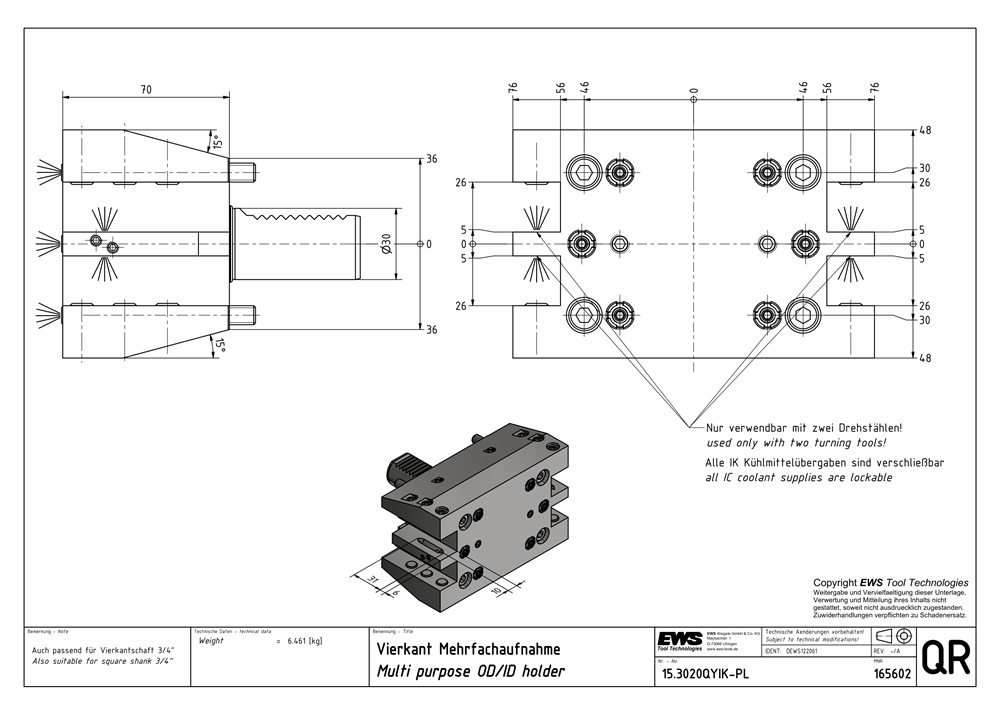

| Cantilever length (LPR) | 70.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Function height (HF) | 21.00 mm |
| Functional width (WF) | 56.00 mm |
| Direction tool interface (HAND) | N |
| Number of holders, workpiece side (CCONWS) | 4 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI30 Proline |
| Interface size | Shank 20×20 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
