Артикул: S03389

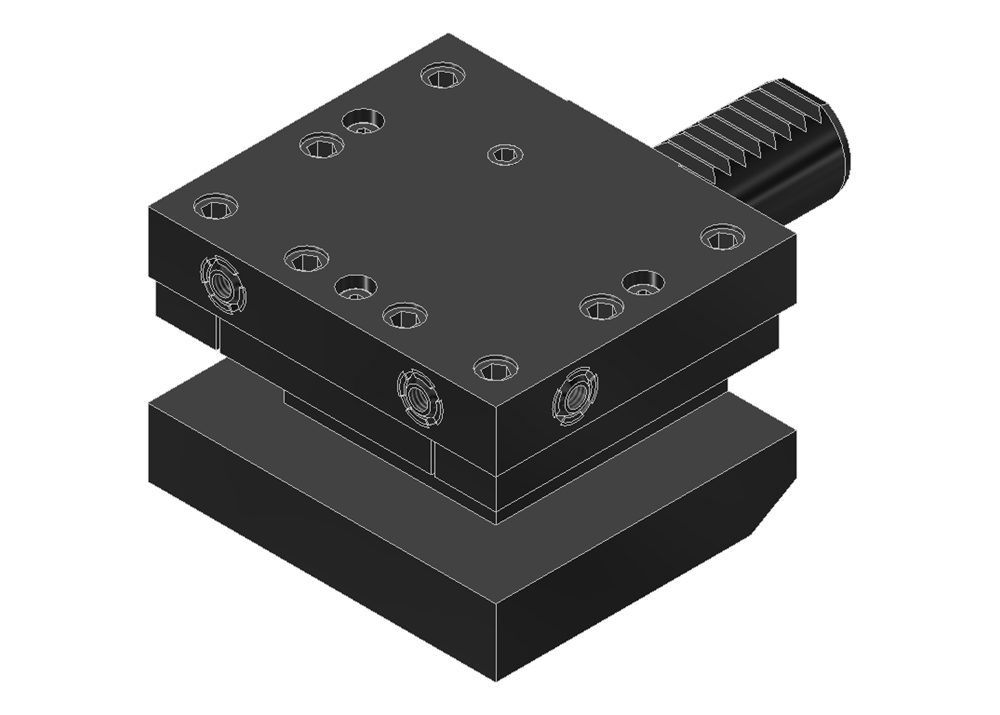

Square multiple holder, form D1
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Three tools can be clamped at the same time.
- Tool holder can be used for main spindle and counter spindle.
- Pressure plates are not convertible

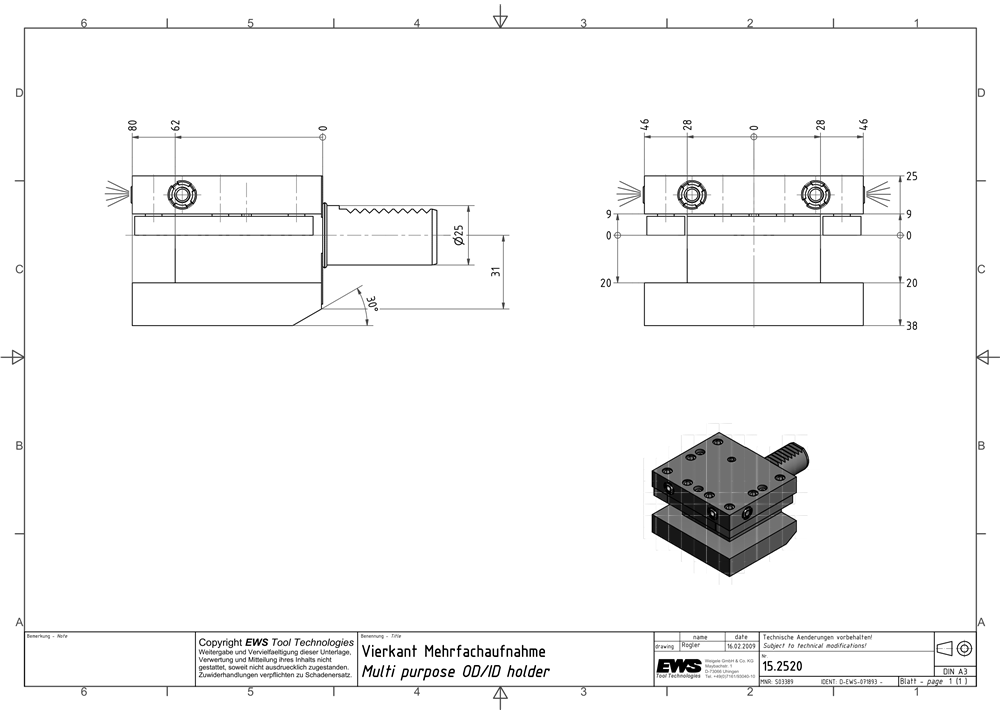

| Cantilever length (LPR) | 80.00 mm |
|---|---|
| Functional length (LF) | 62.00 mm |
| Function height (HF) | 20.00 mm |
| Functional width (WF) | 28.00 mm |
| Direction tool interface (HAND) | N |
| Number of holders, workpiece side (CCONWS) | 3 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI25 |
| Interface size | Shank 20×20 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
