Артикул: 209408

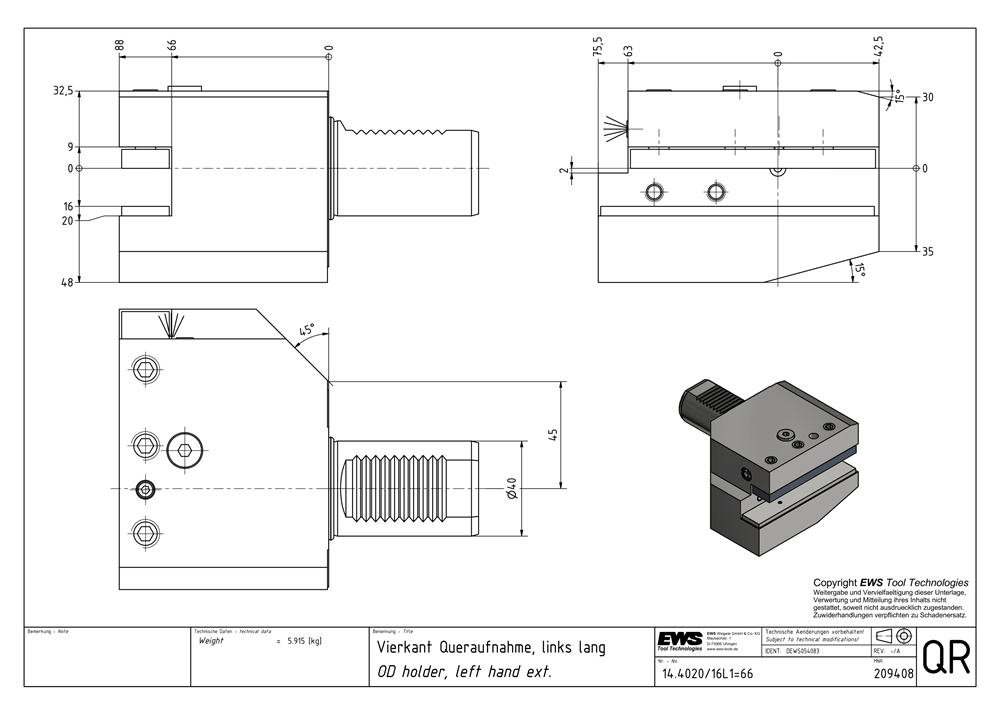

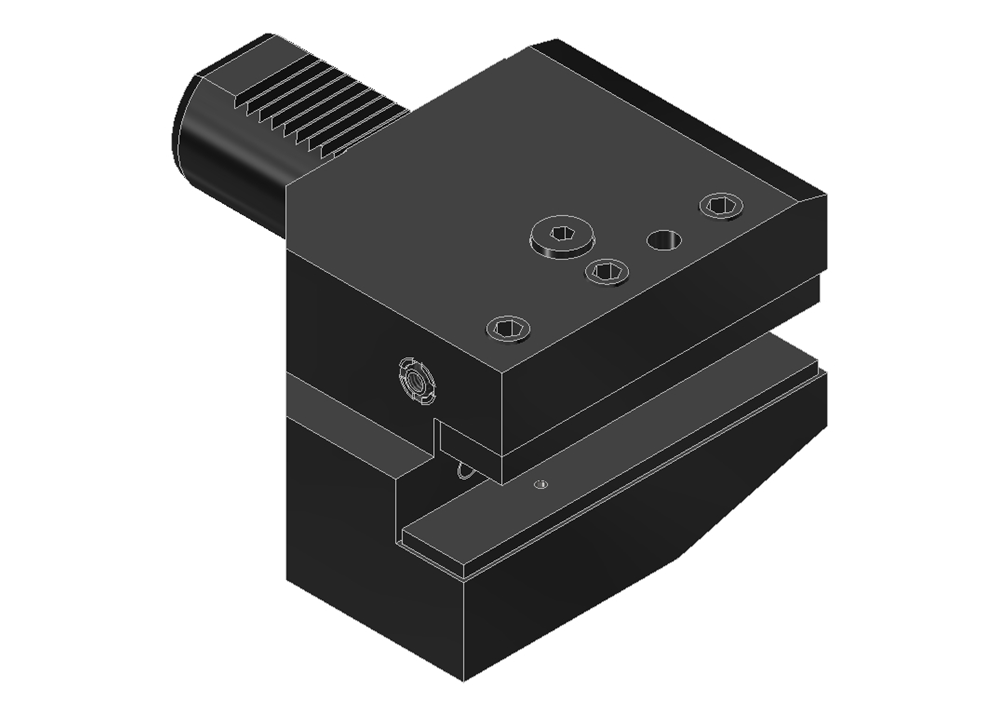

Square cross adapter left long version form B6
Premium class tooling system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 88.00 mm |
|---|---|
| Functional length (LF) | 66.00 mm |
| Function height (HF) | 20.00 mm |
| Clamping length max. (LSCX) | 118.00 mm |
| Direction tool interface (HAND) | L |
| Number of holders workpiece side (CCONWS) | 1 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI40 |
| Interface size | Shank 20×20 Shank 16×16 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
