Артикул: 212350

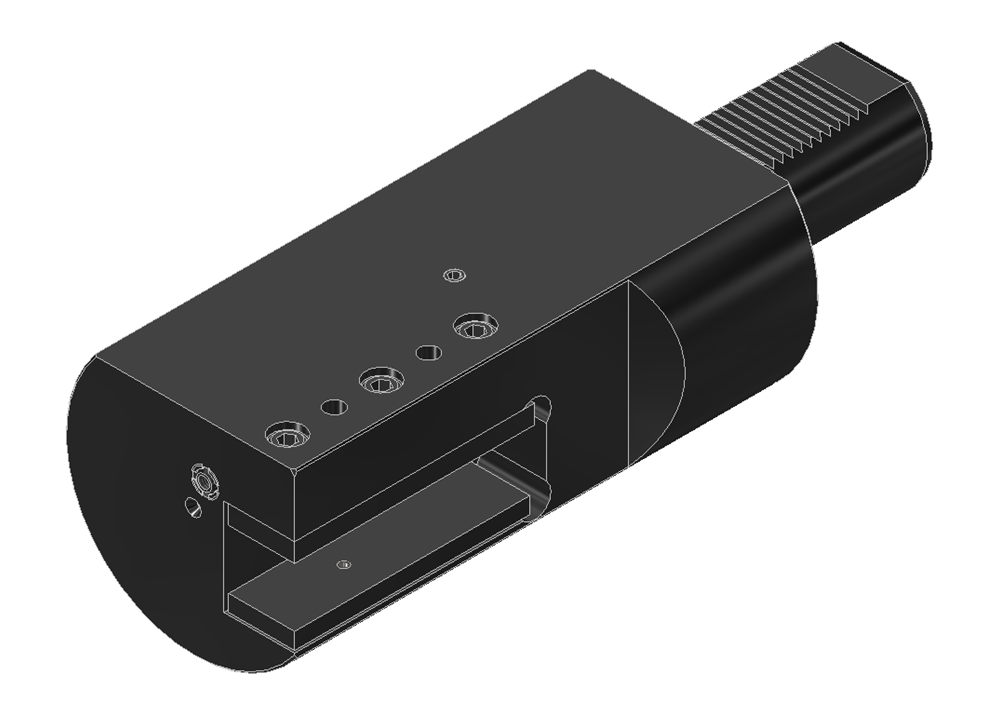

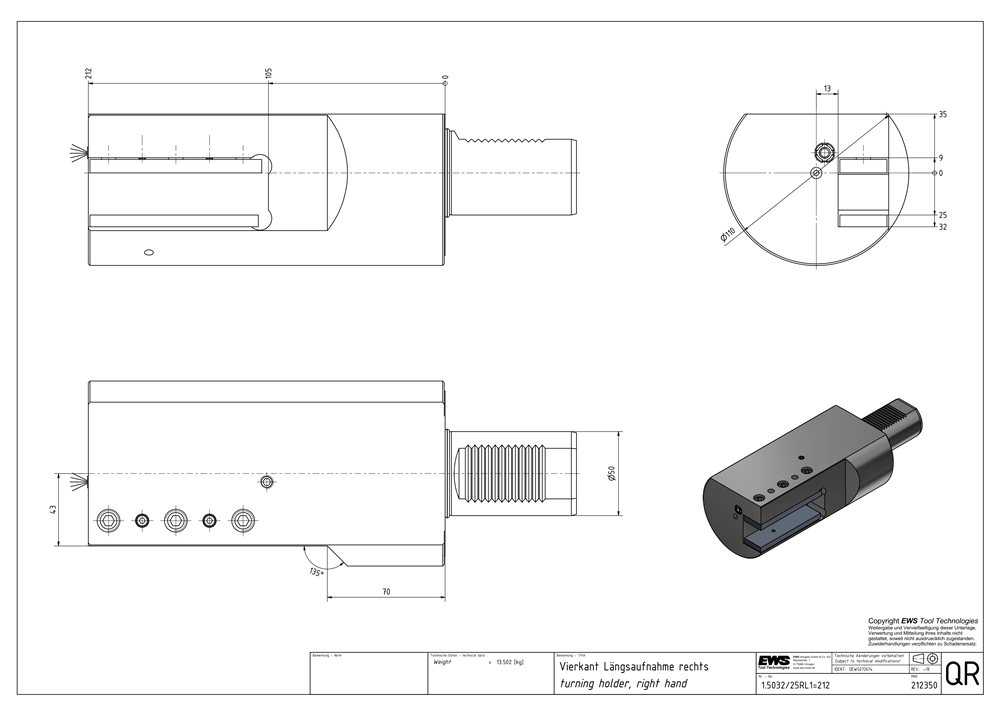

Square longitudinal holder right form C1
Premium class tooling system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 212.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Function height (HF) | 32.00 mm |
| Functional width (WF) | 13.00 mm |
| Clamping length max. (LSCX) | 212.00 mm |
| Direction tool interface (HAND) | R |
| Number of holders workpiece side (CCONWS) | 1 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI50 |
| Interface size | Shank 32×32 Shank 25×25 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
