Артикул: 155510

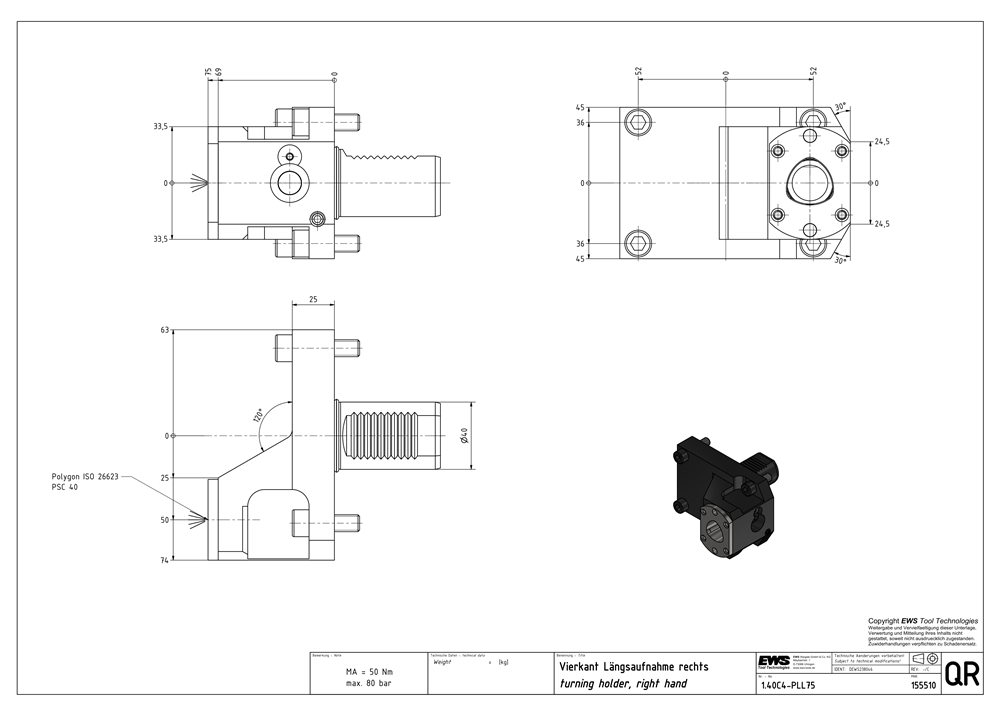

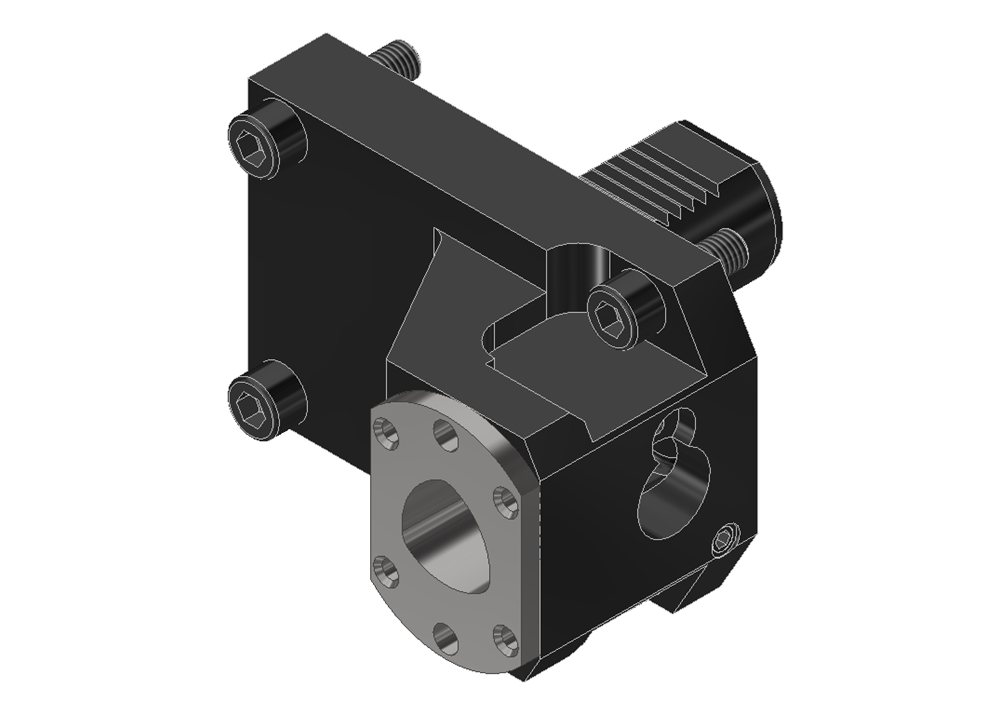

Square longitudinal holder right form C1
Premium class tooling system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 40:
- Repeatability ≤ 0.01mm
- Tightening torque 50 Nm
- Clamping force 21 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!
| Cantilever length (LPR) | 75.00 mm |
|---|---|
| Functional length (LF) | 75.00 mm |
| Functional width (WF) | 50.00 mm |
| Product group | Tool holders and adapter |
| Product type | PSC tool holder |
| Shank size | VDI40 Proline |
| Interface size | PSC 40 |
| Convertible | yes — flange |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
