Артикул: 180965

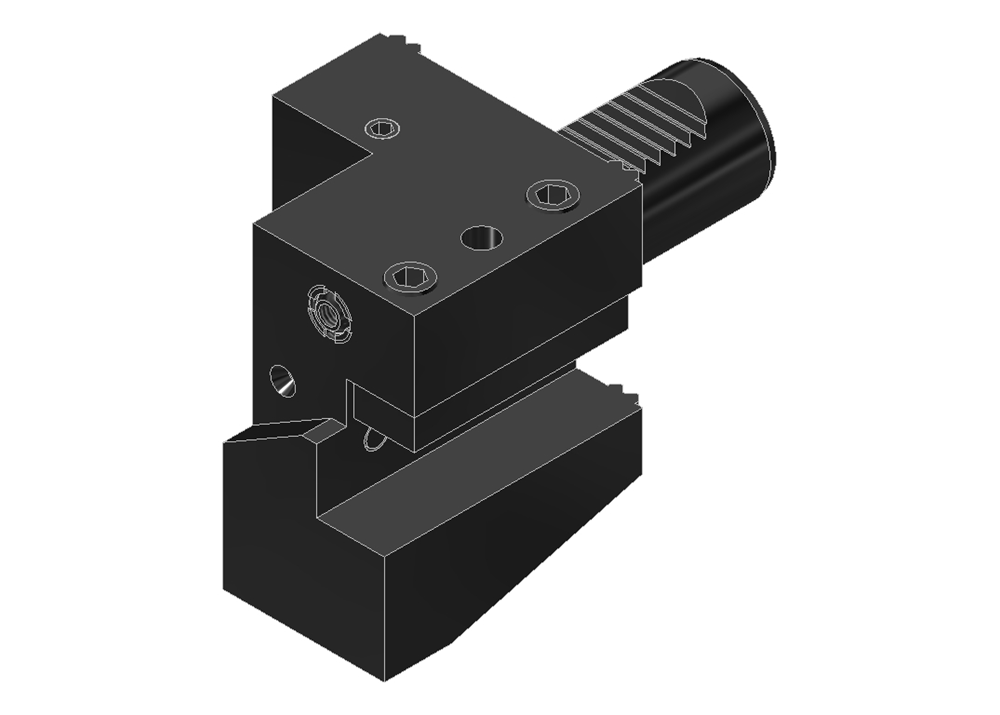

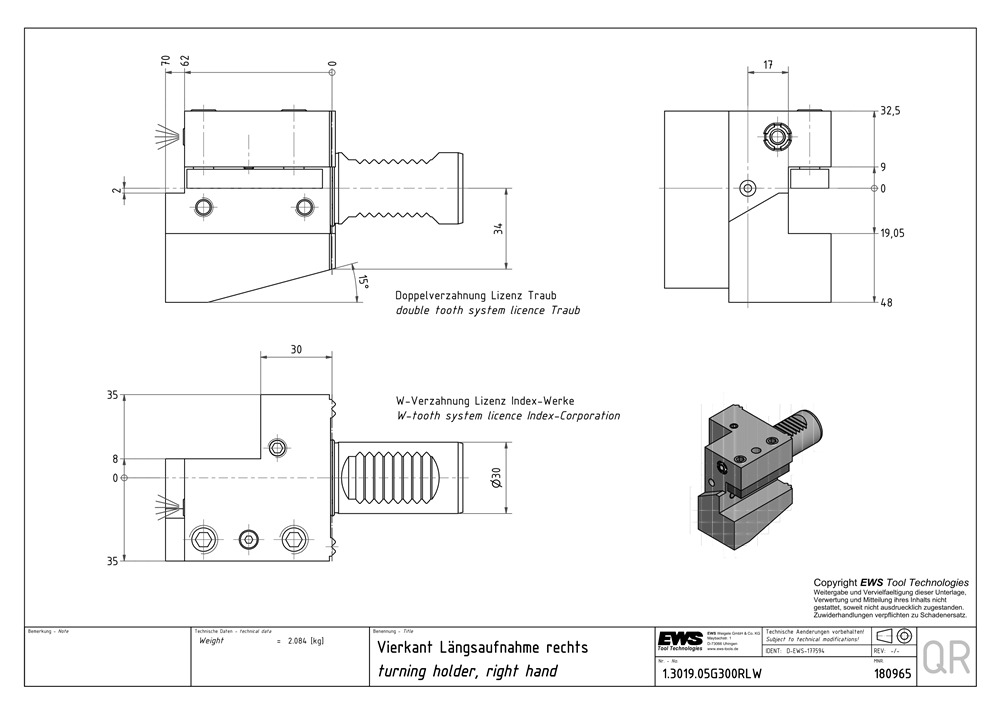

Square longitudinal holder right form C1
Premium class tooling system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Cantilever length (LPR) | 70.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Function height (HF) | 19.05 mm |
| Functional width (WF) | 17.00 mm |
| Clamping length max. (LSCX) | 70.00 mm |
| Direction tool interface (HAND) | R |
| Number of holders workpiece side (CCONWS) | 1 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI30 |
| Interface size | Shank 3/4″x3/4″ |
| Convertible | No |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 0° |
| Alignment system | W-serration |
