Артикул: 195063

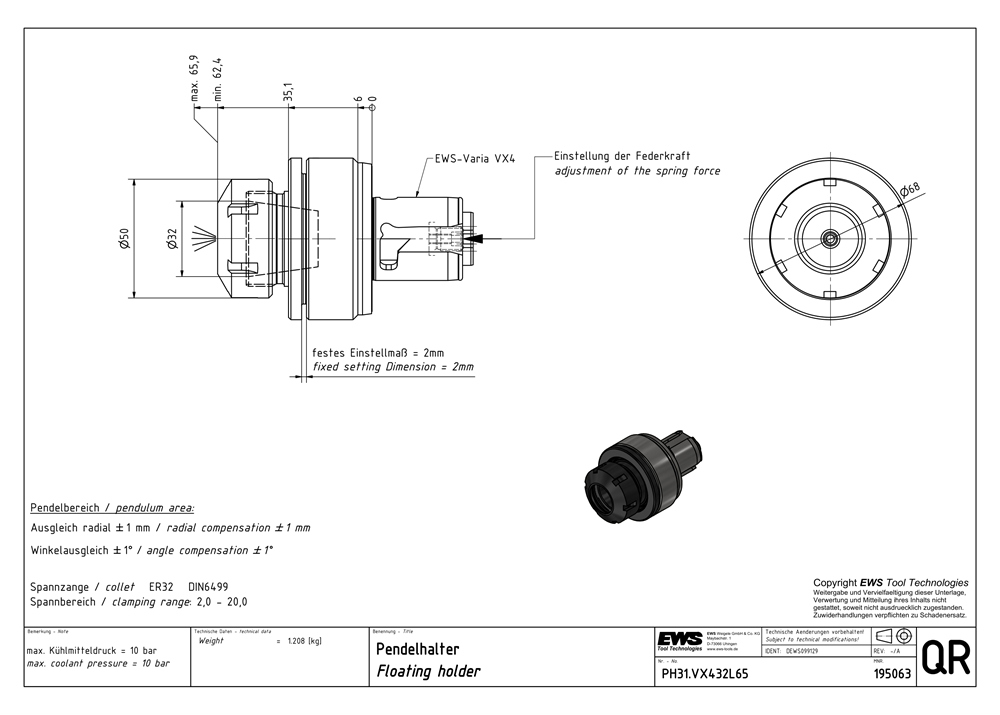

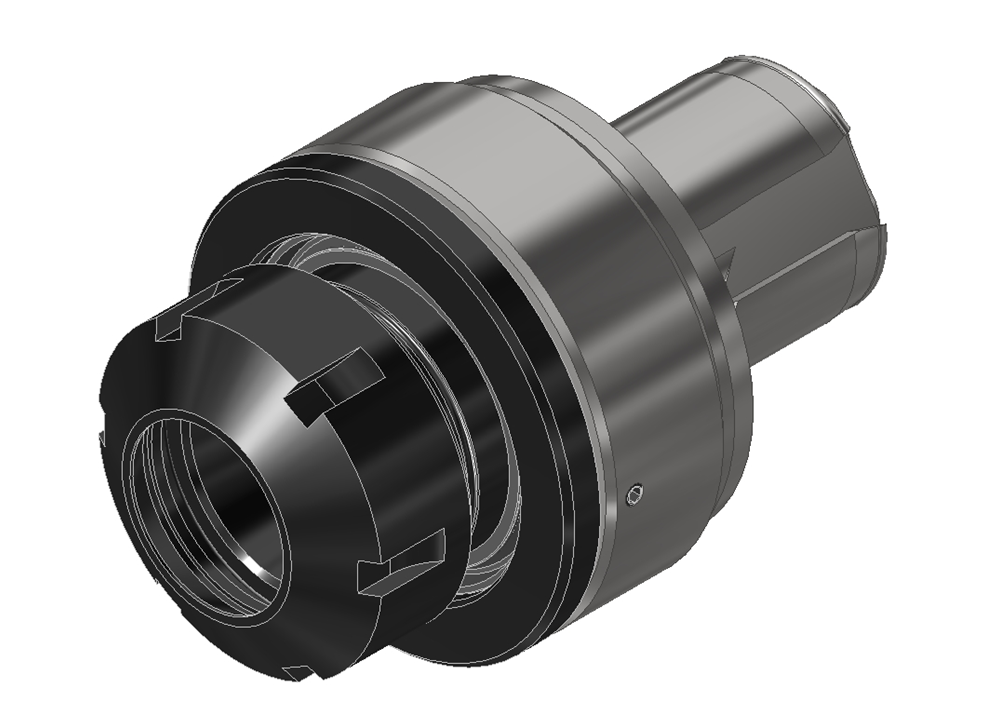

EWS.Varia adapter with pendulum function
Thanks to the pendulum function, reaming and similar fine machining operations can be performed.
- Axis displacement in X plane-parallel up to +- 1mm
- Can be used with internal cooling lubricant supply (IKZ)
- Spring force adjustable
- Observe tightening torque when clamping inserts in Varia spindle
EWS.Varia adapter with collet chuck ER32 DIN6499
- Clamping range Ø3-20
- For collet 320 470E
- Tool change in 20 seconds
- Can be used with internal coolant supply (IKZ) up to 70 bar
- Observe tightening torque when clamping inserts in Varia spindle
| Body diameter 1 (BD1) | 68.00 mm |
|---|---|
| Cantilever length (LPR) | 64.90 mm |
| Functional length (LF) | 64.90 mm |
| Product group | EWS.Varia insert |
| Product type | Floating holder |
| Shank size | EWS Varia VX4 |
| Interface size | Collet ER32 |
| Tool orientation | 0° |
