Артикул: 172345

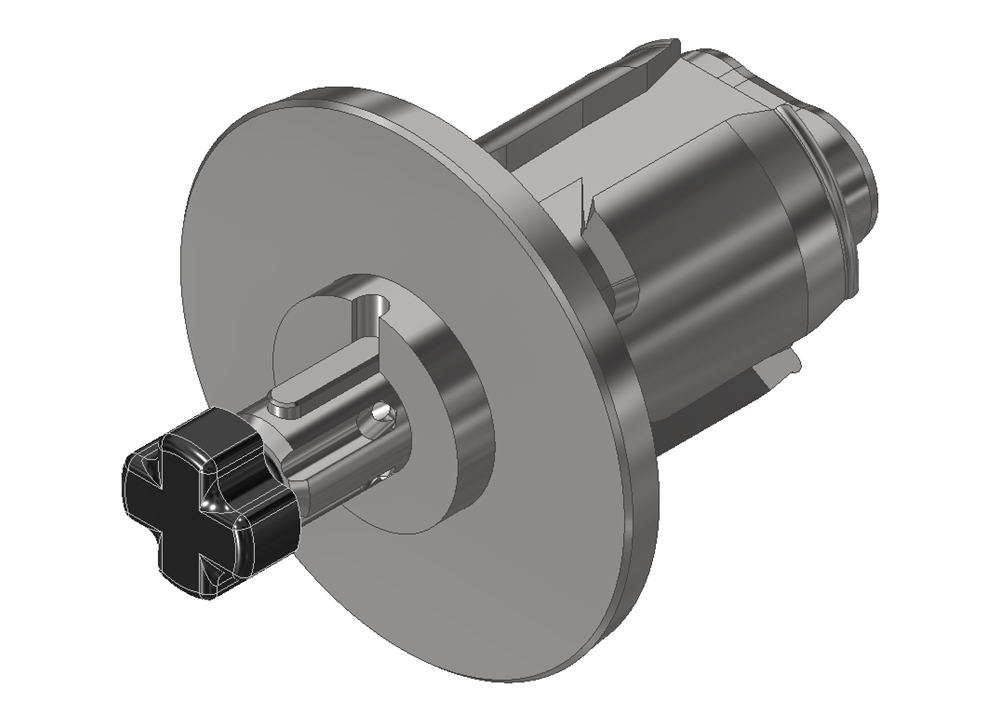

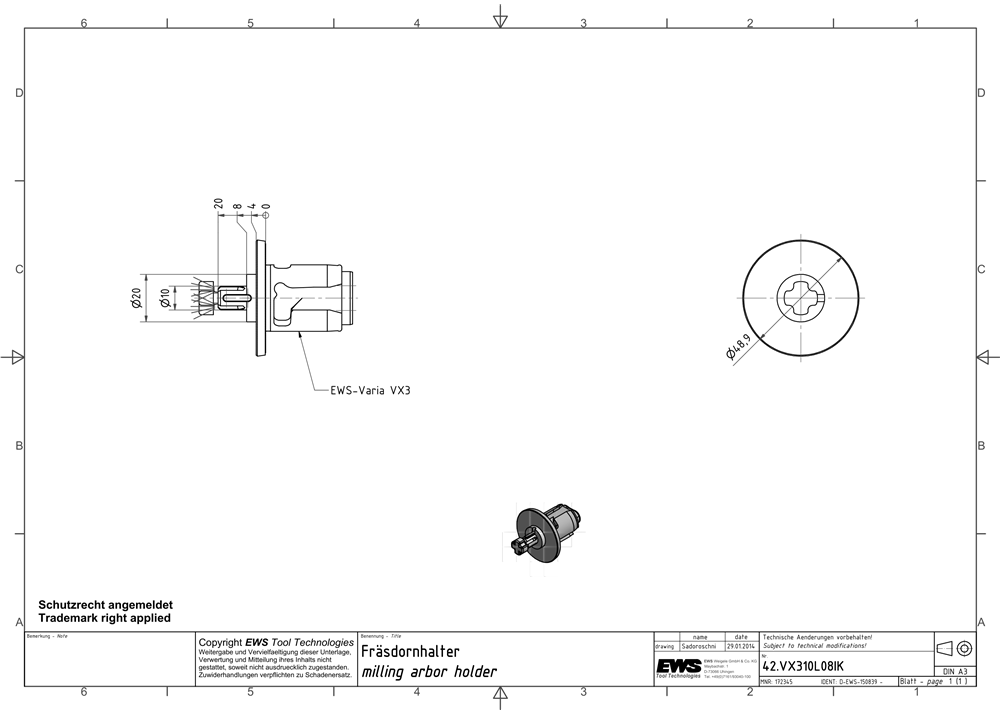

EWS.Varia adapter with cutter arbor interface.
To accommodate cutter heads and cutters with DIN 1880 cross groove.
- Cutter tightening screw included in delivery.
- Observe tightening torque when clamping inserts in Varia spindle.
| Body diameter 1 (BD1) | 20.00 mm |
|---|---|
| Cantilever length (LPR) | 20.00 mm |
| Functional length (LF) | 8.00 mm |
| Mounting diameter, min. (DCONN) | 10.00 mm |
| Product group | EWS.Varia insert |
| Product type | Milling arbor insert |
| Shank size | EWS Varia VX3 |
| Interface size | Cutting arbour Ø10 DIN138 (longitudinal and cross groove) |
| Tool orientation | 0° |
