Артикул: S01325

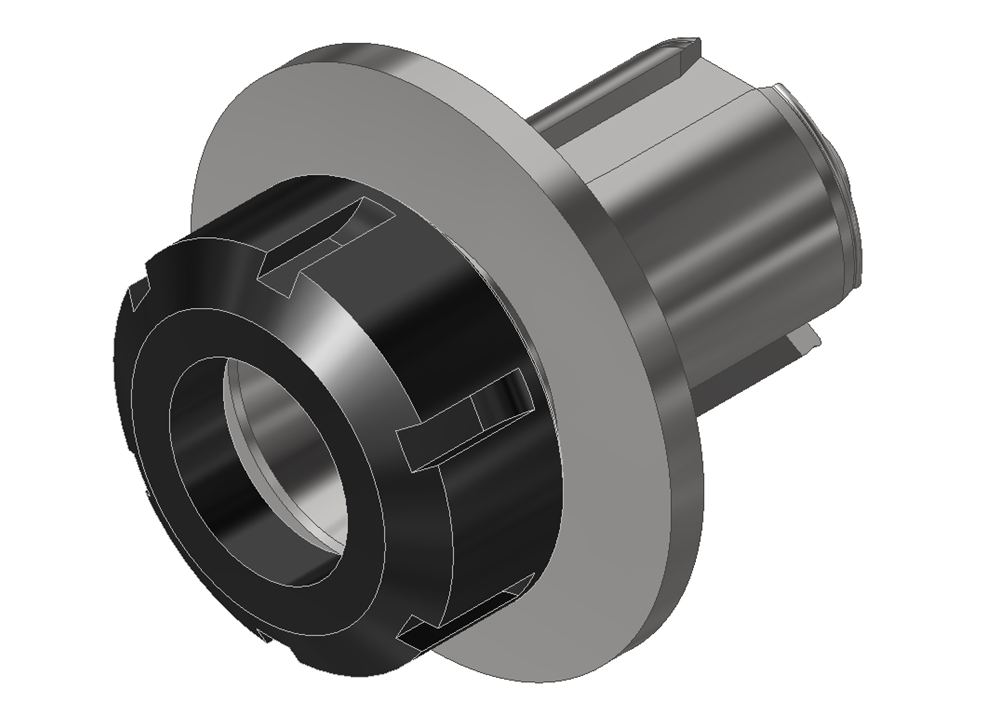

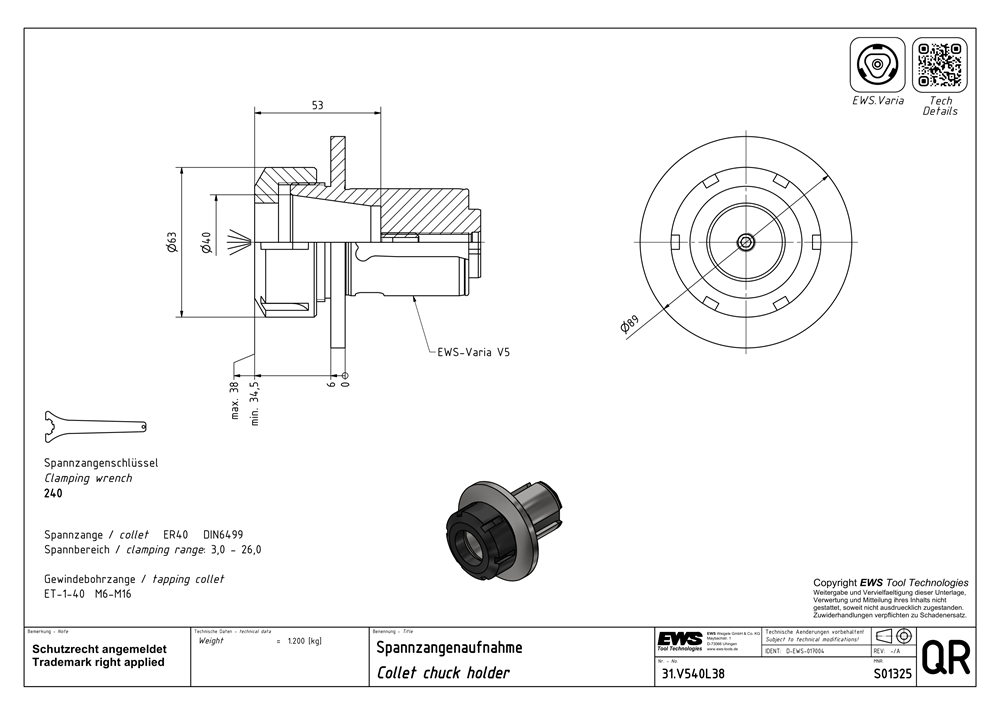

EWS.Varia adapter with collet chuck ER40 DIN6499
- Clamping range Ø4-26
- For collet 400 472E
- Tool change in 20 seconds
- Can be used with internal coolant supply (IKZ) up to 70 bar
- Observe tightening torque when clamping inserts in Varia spindle
| Cantilever length (LPR) | 38.00 mm |
|---|---|
| Functional length (LF) | 38.00 mm |
| Product group | EWS.Varia insert |
| Product type | Collet insert |
| Shank size | EWS Varia V5 |
| Interface size | ER40 |
| Tool orientation | 0° |
