Артикул: 160887

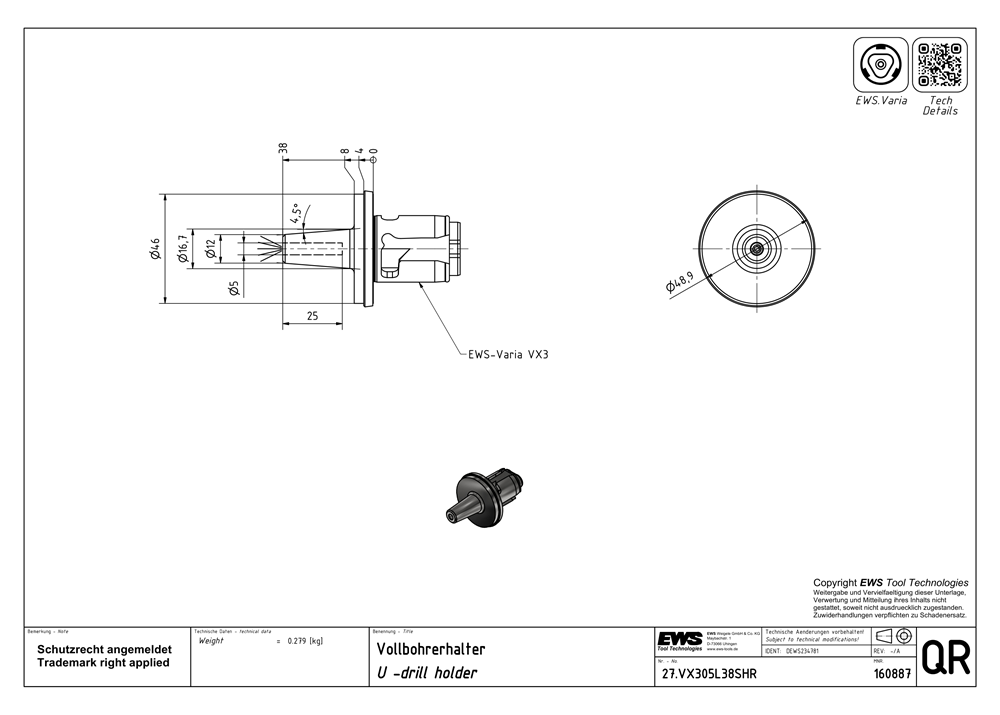

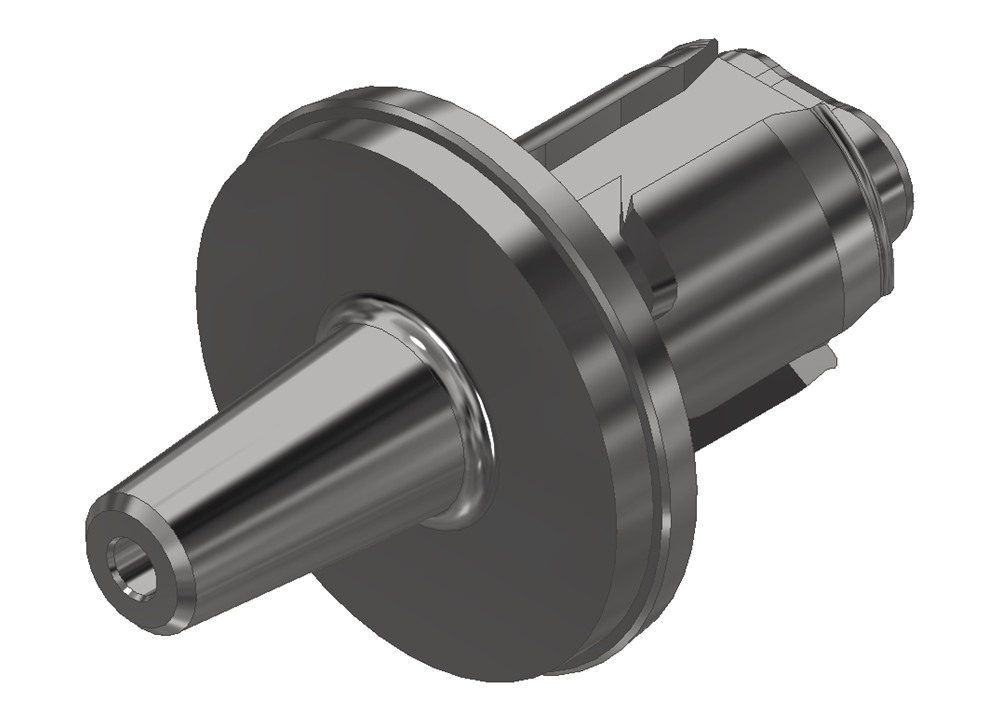

U-drill holder Dia. 5 EWS Varia insert VX3 Weight: 0.287
| Body diameter 1 (BD1) | 16.72 mm |
|---|---|
| Cantilever length (LPR) | 38.00 mm |
| Functional length (LF) | 13.00 mm |
| Mounting diameter, min. (DCONN) | 5.00 mm |
| Clamping length, max. (LSCX) | 25.00 mm |
| Product group | EWS.Varia insert |
| Product type | Cylindrical tool insert |
| Shank size | EWS Varia VX3 |
| Interface size | Shrinkfit Ø 5.0 |
| Tool orientation | 0° |
