Артикул: S02502

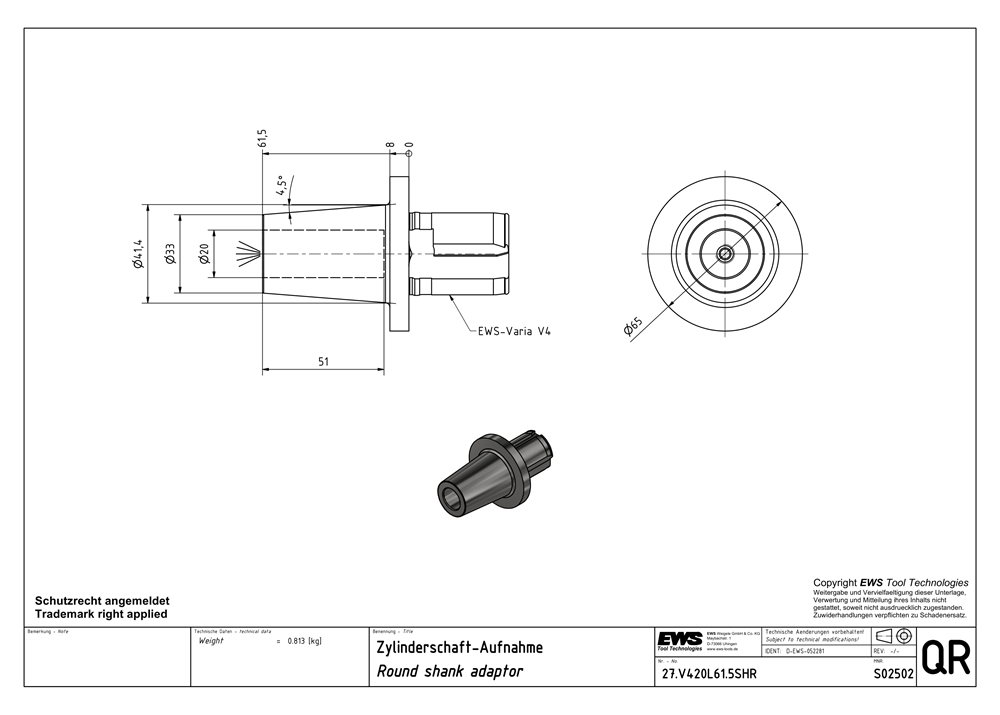

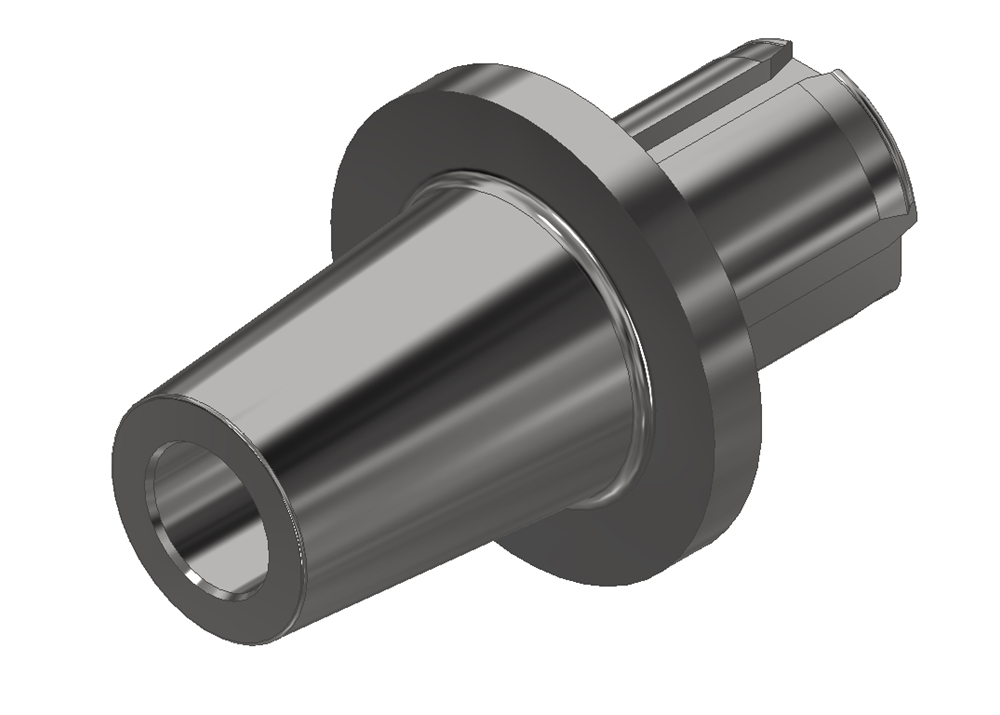

U-drill holder Dia. 20 EWS Varia insert V4 Weight: 0.837
| Body diameter 1 (BD1) | 41.42 mm |
|---|---|
| Cantilever length (LPR) | 61.50 mm |
| Functional length (LF) | 10.50 mm |
| Mounting diameter, min. (DCONN) | 20.00 mm |
| Clamping length, max. (LSCX) | 51.00 mm |
| Product group | EWS.Varia insert |
| Product type | Cylindrical tool insert |
| Shank size | EWS Varia V4 |
| Interface size | Ø 20.0 |
| Tool orientation | 0° |
