Артикул: S01520

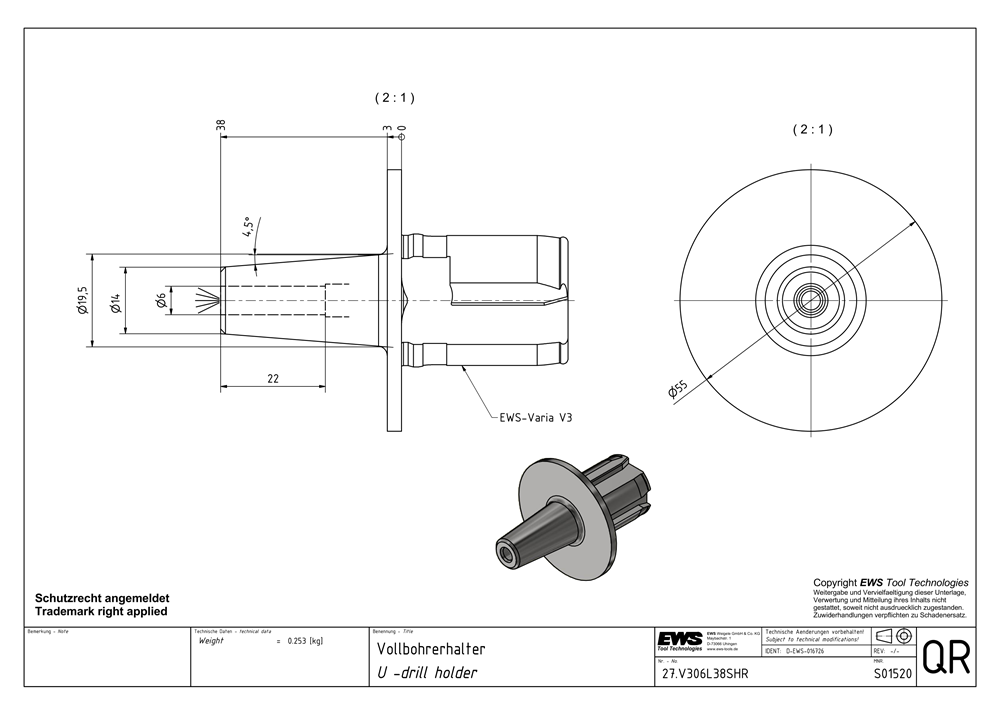

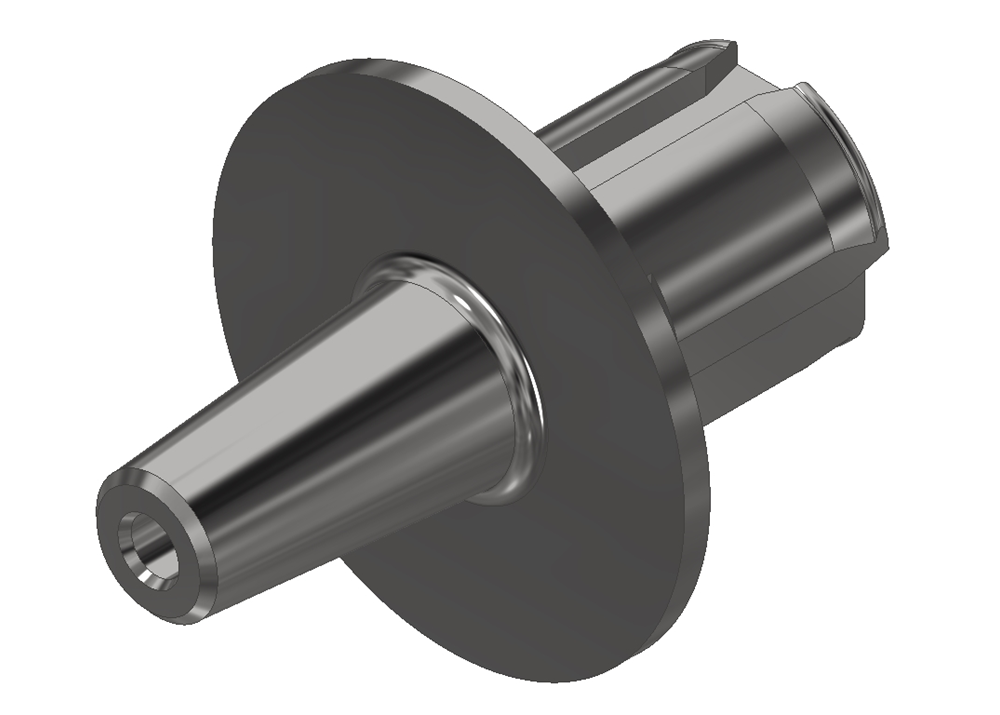

U-drill holder Dia. 6 EWS Varia insert V3 Weight: 0.253
| Body diameter 1 (BD1) | 19.51 mm |
|---|---|
| Cantilever length (LPR) | 38.00 mm |
| Functional length (LF) | 16.00 mm |
| Mounting diameter, min. (DCONN) | 6.00 mm |
| Clamping length, max. (LSCX) | 22.00 mm |
| Product group | EWS.Varia insert |
| Product type | Cylindrical tool insert |
| Shank size | EWS Varia V3 |
| Interface size | Shrinkfit Ø 6.0 |
| Tool orientation | 0° |
