Артикул: 179762

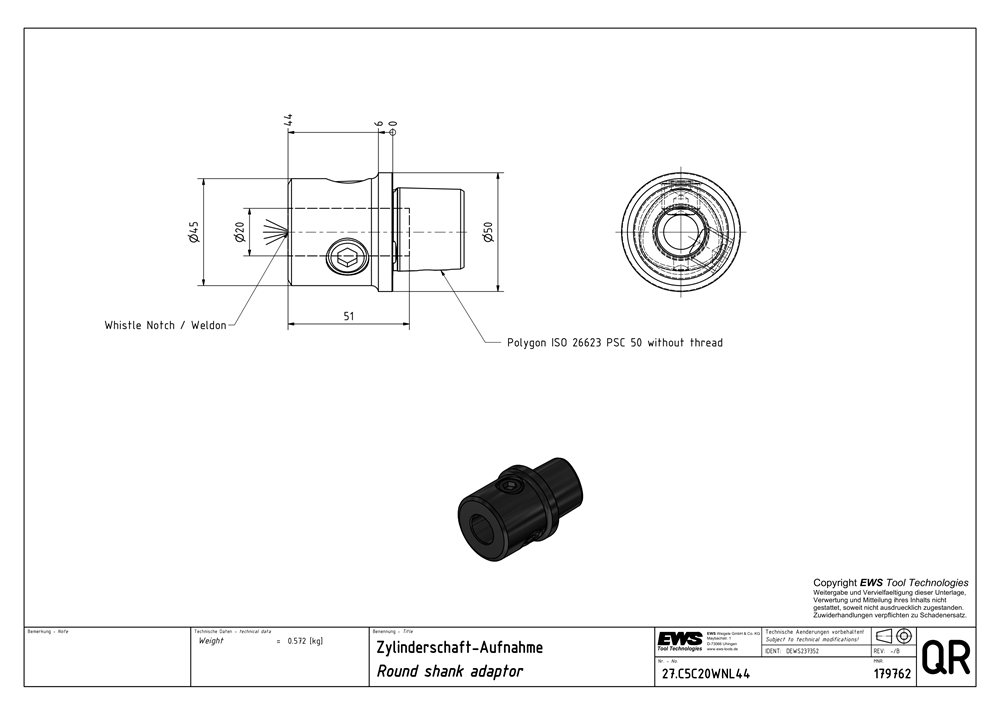

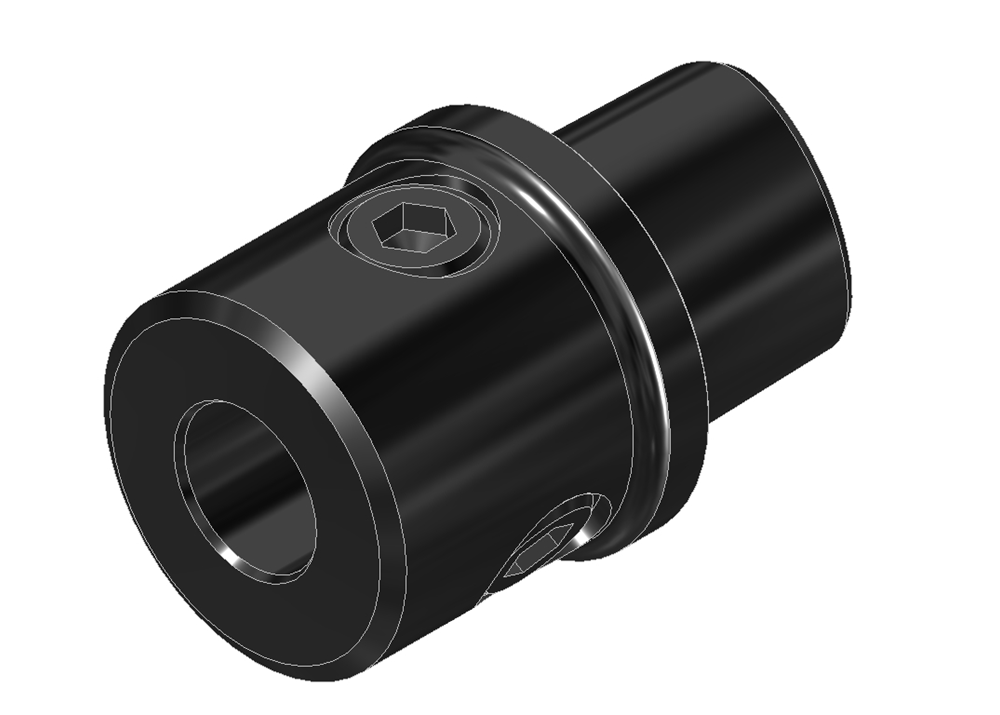

U-drill holder Weldon/Whistle Notch Dia. 20 Weight: 0.572
| Body diameter 1 (BD1) | 45.00 mm |
|---|---|
| Cantilever length (LPR) | 44.00 mm |
| Functional length (LF) | -7.00 mm |
| Mounting diameter, min. (DCONN) | 20.00 mm |
| Clamping length, max. (LSCX) | 51.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 50 |
| Interface size | Weldon Ø 20.0 Whistle Notch Ø 20.0 |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
