Артикул: 179772

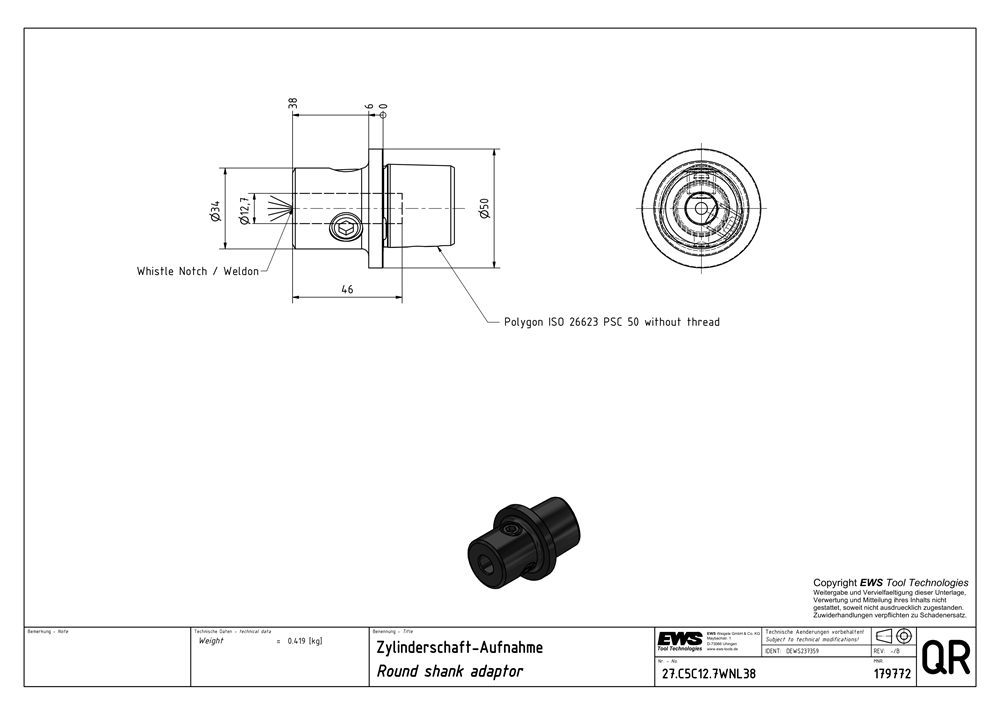

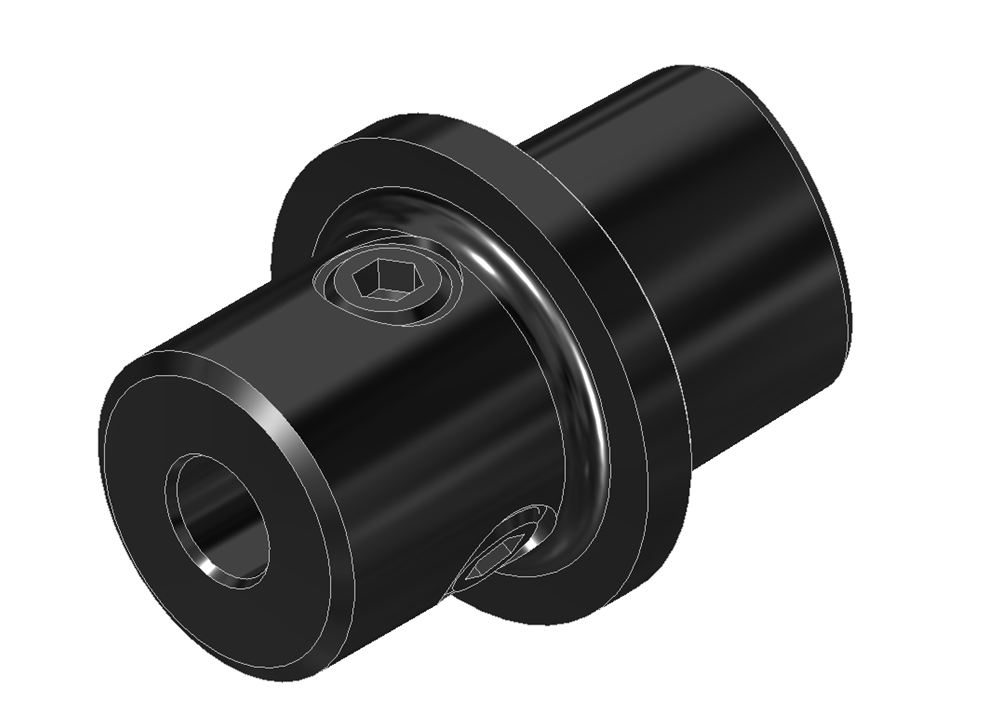

U-drill holder Weldon/Whistle Notch Dia. 12.7 (0.5 inch) Weight: 0.419
| Body diameter 1 (BD1) | 34.00 mm |
|---|---|
| Cantilever length (LPR) | 38.00 mm |
| Functional length (LF) | -8.00 mm |
| Mounting diameter, min. (DCONN) | 12.70 mm |
| Clamping length, max. (LSCX) | 46.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 50 |
| Interface size | Weldon Ø1/2″ Whistle Notch Ø 50.0 |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
