Артикул: 150487

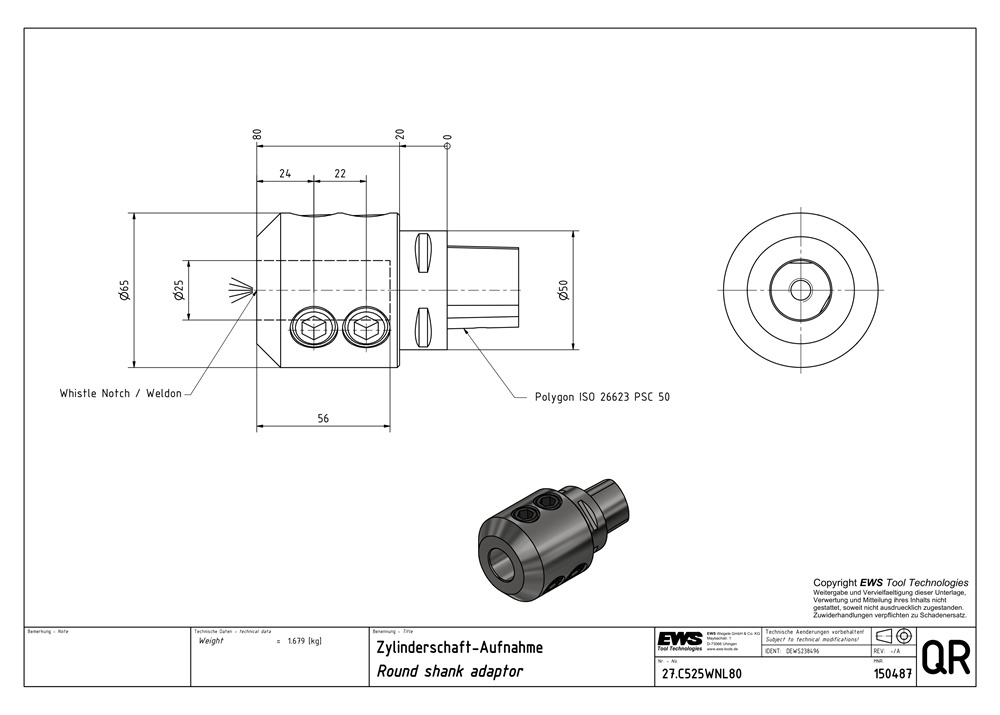

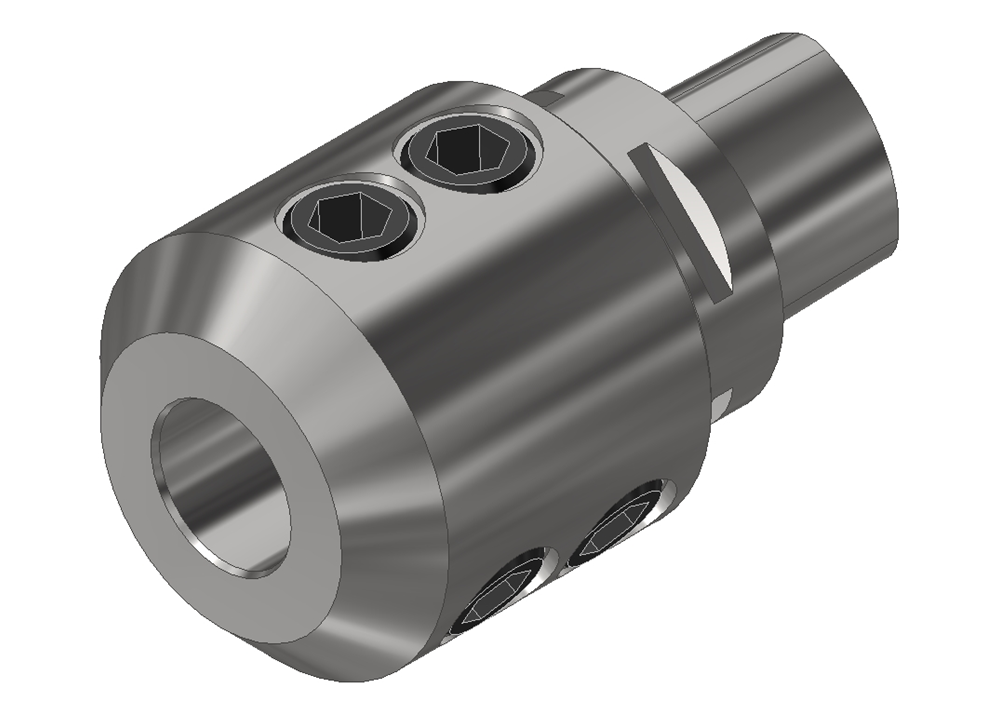

U-drill holder Weldon/Whistle Notch Dia. 25 Capto C5 (License Sandvik Coromant) Weight: 1.679
| Body diameter 1 (BD1) | 65.00 mm |
|---|---|
| Cantilever length (LPR) | 80.00 mm |
| Functional length (LF) | 24.00 mm |
| Mounting diameter, min. (DCONN) | 25.00 mm |
| Clamping length, max. (LSCX) | 56.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 50 |
| Interface size | Weldon Ø 25.0 Whistle Notch Ø 25.0 |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
