Артикул: 179750

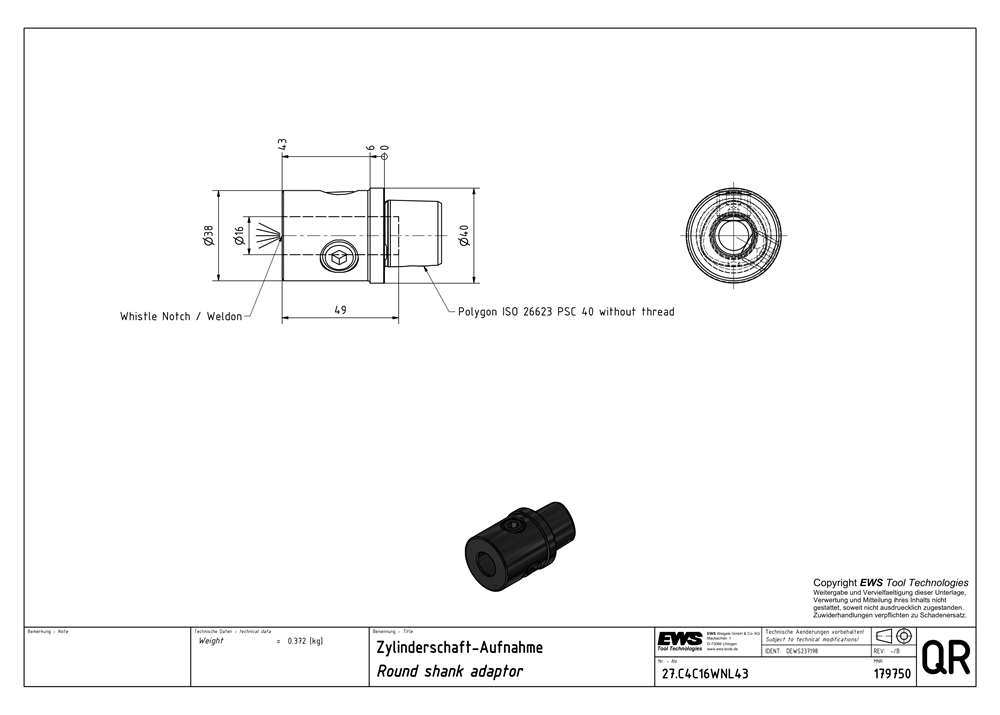

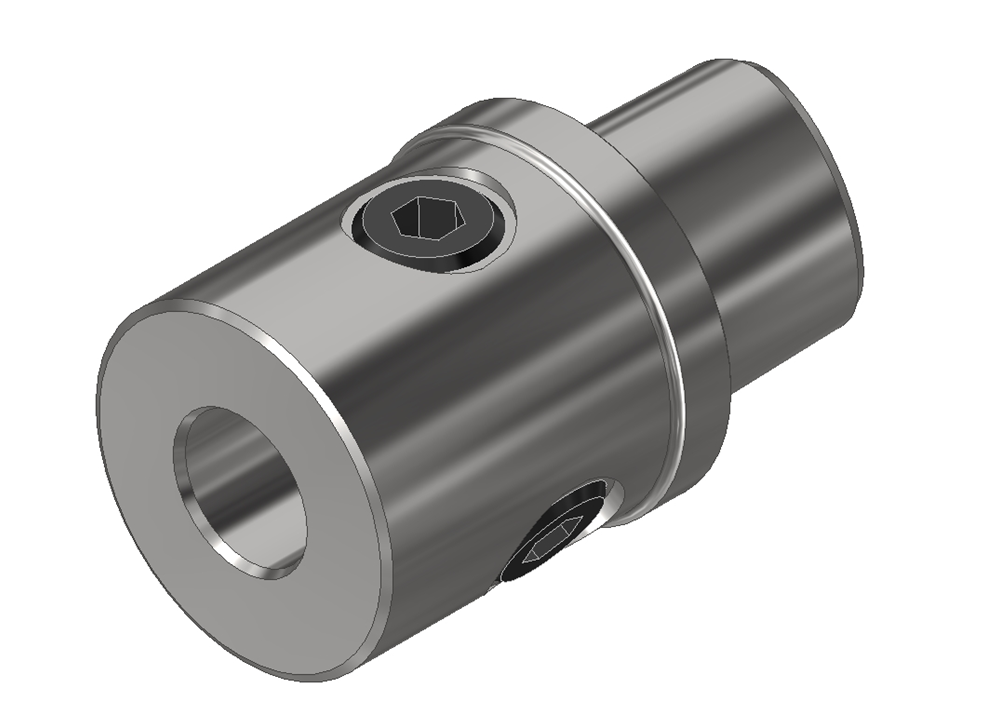

U-drill holder Weldon/Whistle Notch Dia. 16 Weight: 0.372
| Body diameter 1 (BD1) | 38.00 mm |
|---|---|
| Cantilever length (LPR) | 43.00 mm |
| Functional length (LF) | -6.00 mm |
| Mounting diameter, min. (DCONN) | 16.00 mm |
| Clamping length, max. (LSCX) | 49.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 40 |
| Interface size | Weldon Ø 16.0 Whistle Notch Ø 16.0 |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
