Артикул: 232713

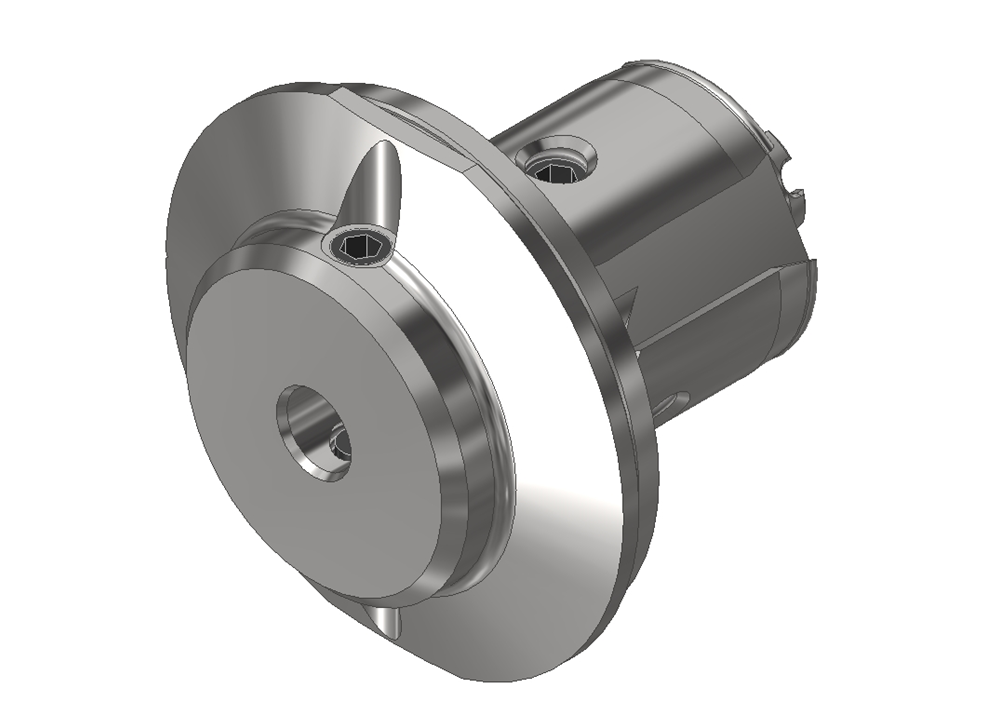

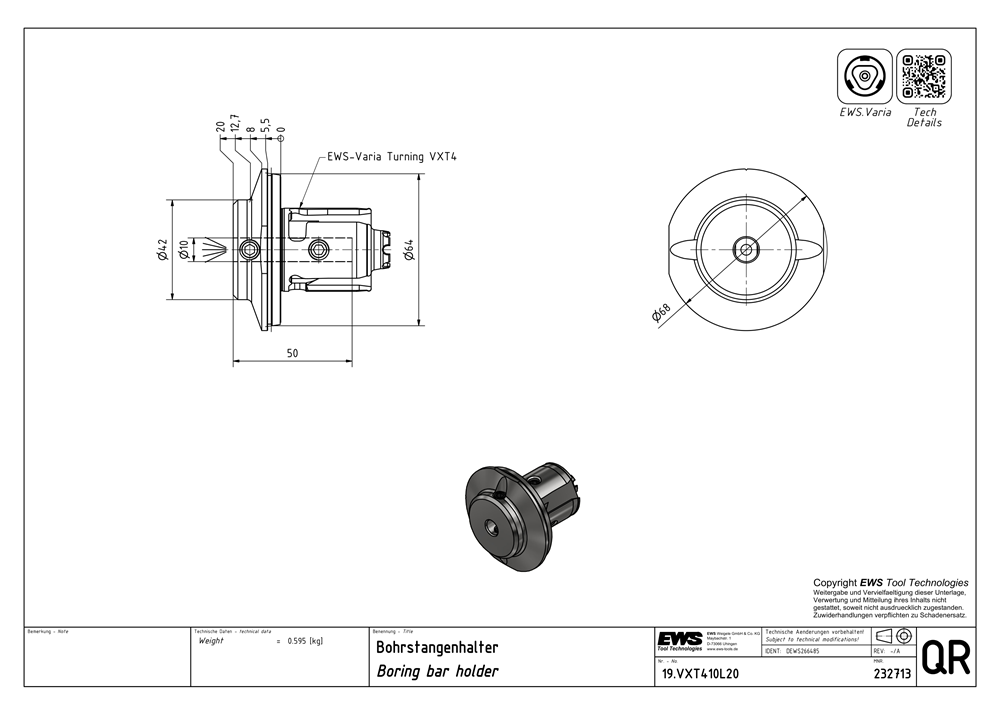

Boring bar holder EWS-Varia VXT4 hole -Ø 10 Length = 20mm
| Cantilever length (LPR) | 20.00 mm |
|---|---|
| Functional length (LF) | -30.00 mm |
| Mounting diameter, min. (DCONN) | 10.00 mm |
| Clamping length, max. (LSCX) | 50.00 mm |
| Product group | EWS.Varia insert |
| Product type | Boring bar holder |
| Interface size | Ø 10.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
