Артикул: 216248

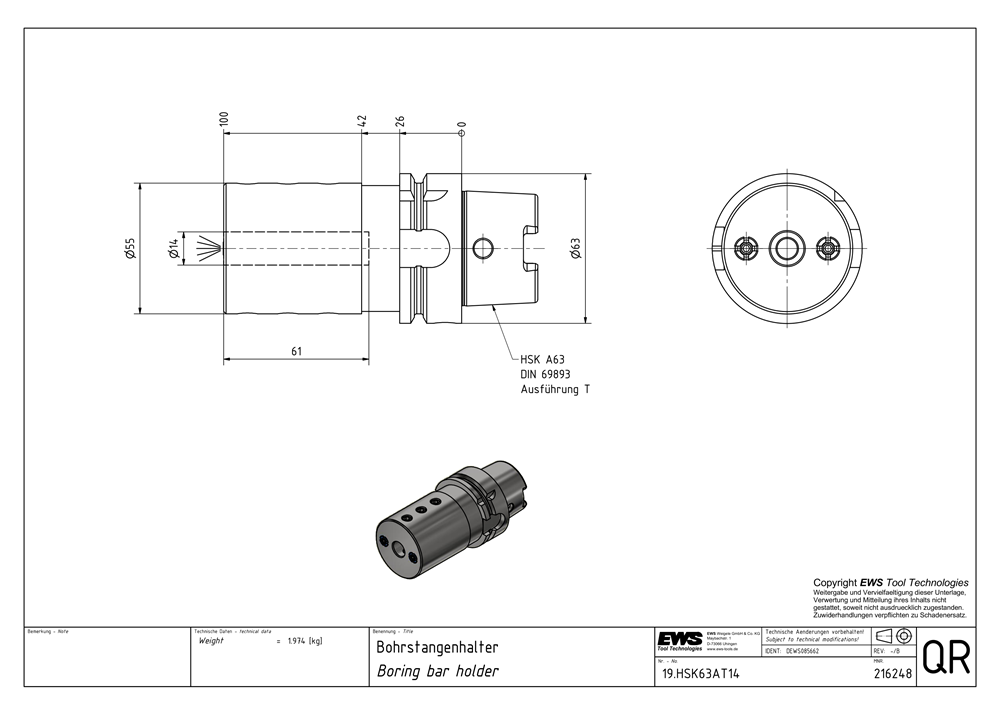

Boring bar holder Dia. 14 Weight: 1.974
| Body diameter 1 (BD1) | 55.00 mm |
|---|---|
| Cantilever length (LPR) | 100.00 mm |
| Functional length (LF) | 39.00 mm |
| Mounting diameter, min. (DCONN) | 14.00 mm |
| Clamping length, max. (LSCX) | 61.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | HSK-T63 |
| Interface size | Ø 14.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
