Артикул: 130886

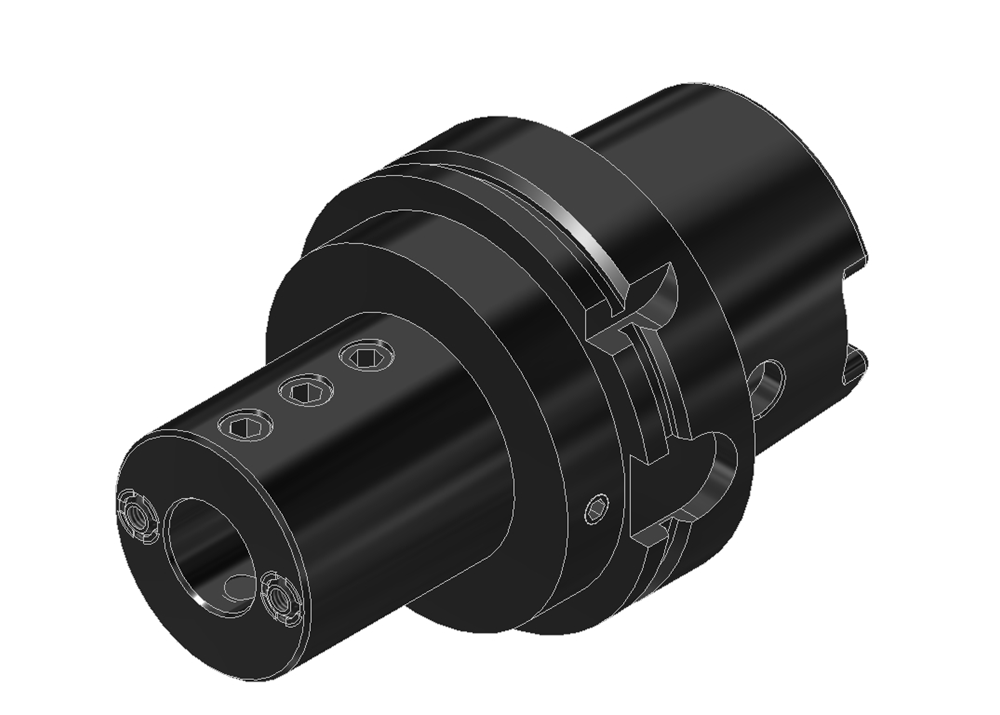

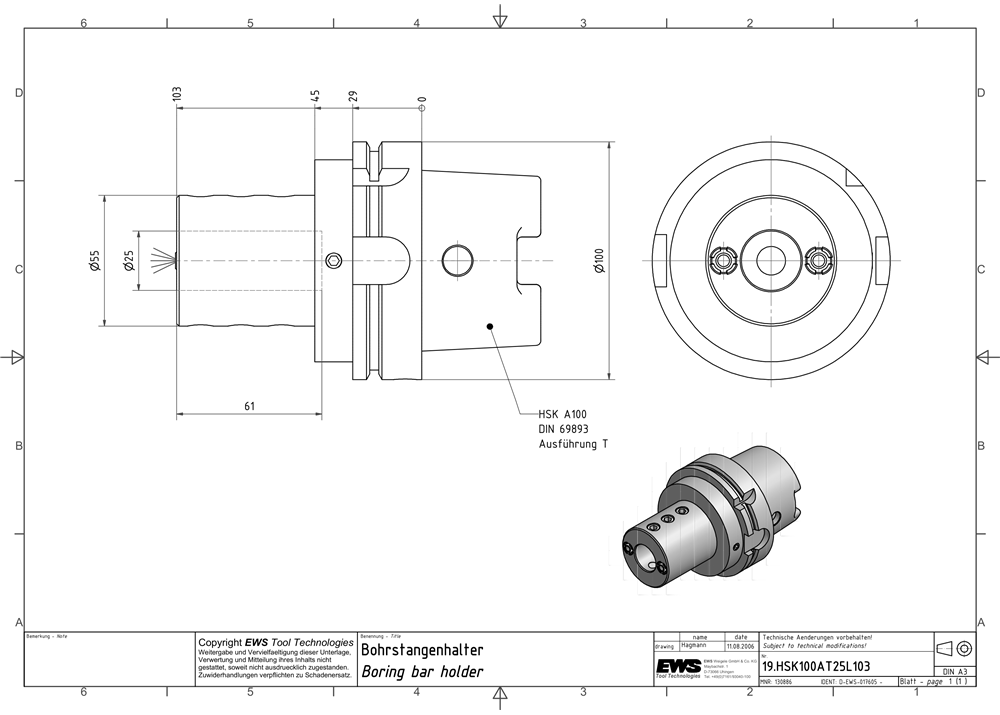

Boring bar holder Dia. 25 HSK 100 Weight: 3.510
| Body diameter 1 (BD1) | 55.00 mm |
|---|---|
| Cantilever length (LPR) | 103.00 mm |
| Functional length (LF) | 42.00 mm |
| Mounting diameter, min. (DCONN) | 25.00 mm |
| Clamping length, max. (LSCX) | 61.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | HSK-T100 |
| Interface size | Ø 25.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
