Артикул: 190228

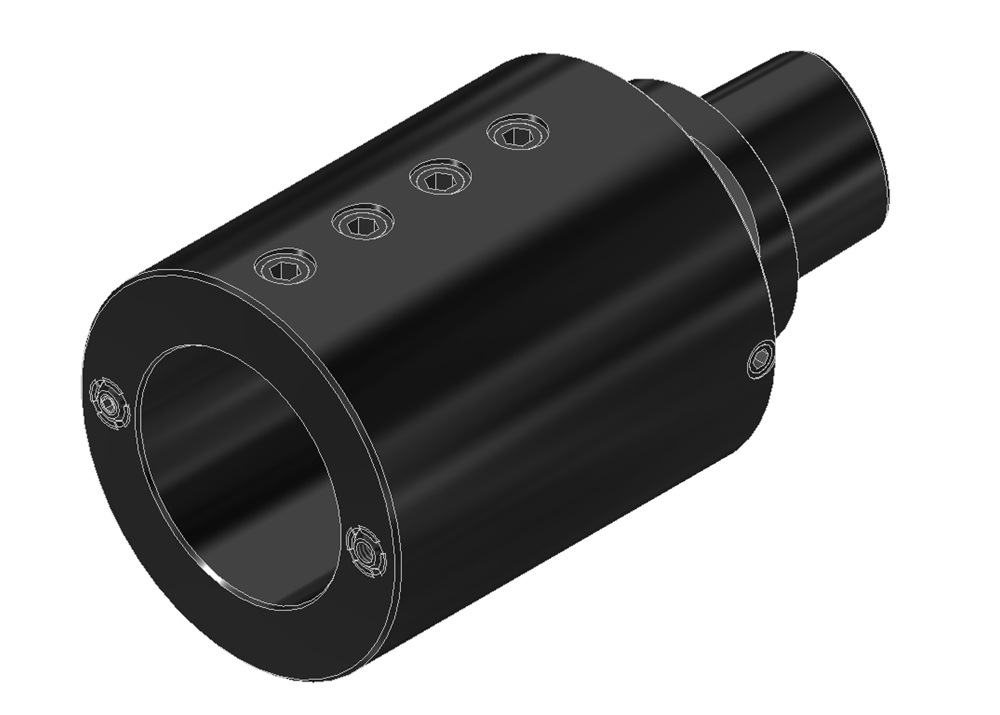

Boring bar holder Dia. 60 Weight: 1.000
| Body diameter 1 (BD1) | 95.00 mm |
|---|---|
| Cantilever length (LPR) | 135.00 mm |
| Functional length (LF) | 35.00 mm |
| Mounting diameter, min. (DCONN) | 60.00 mm |
| Clamping length, max. (LSCX) | 100.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 63 |
| Interface size | Ø 60.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
