Артикул: 166994

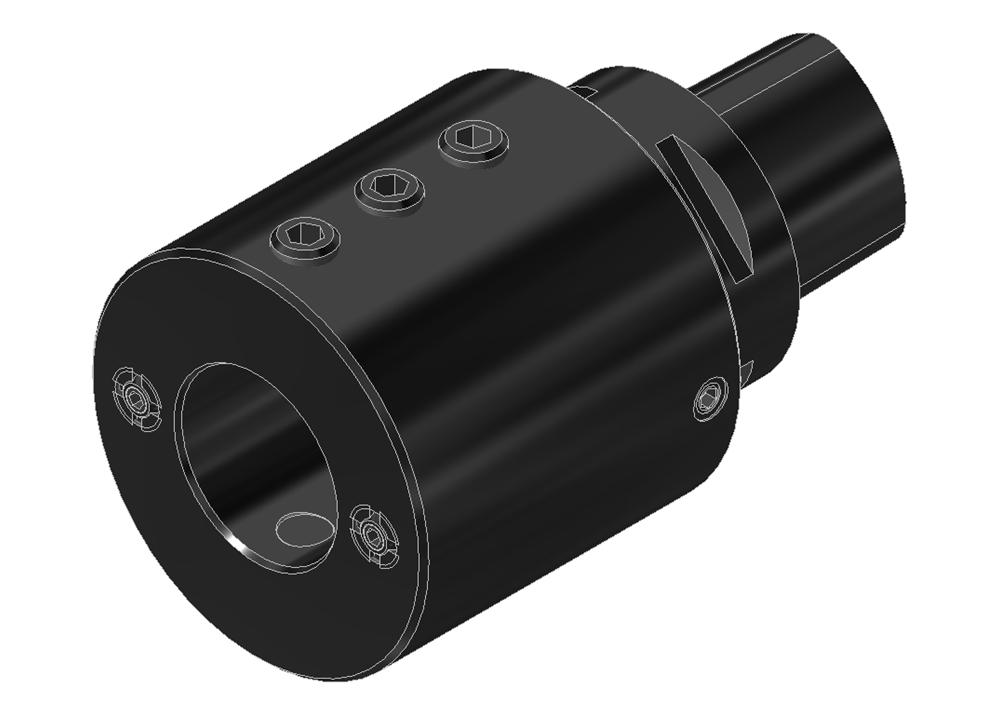

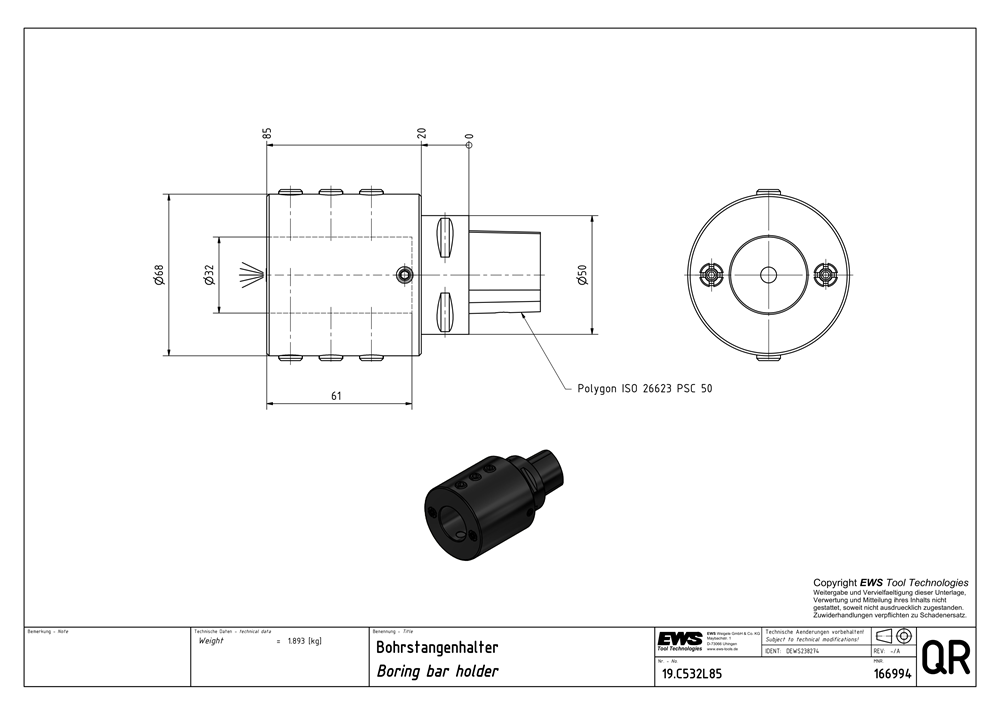

Boring bar holder Dia. 32 Weight: 1.893
| Body diameter 1 (BD1) | 68.00 mm |
|---|---|
| Cantilever length (LPR) | 85.00 mm |
| Functional length (LF) | 24.00 mm |
| Mounting diameter, min. (DCONN) | 32.00 mm |
| Clamping length, max. (LSCX) | 61.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 50 |
| Interface size | Ø 32.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
