Артикул: 134573

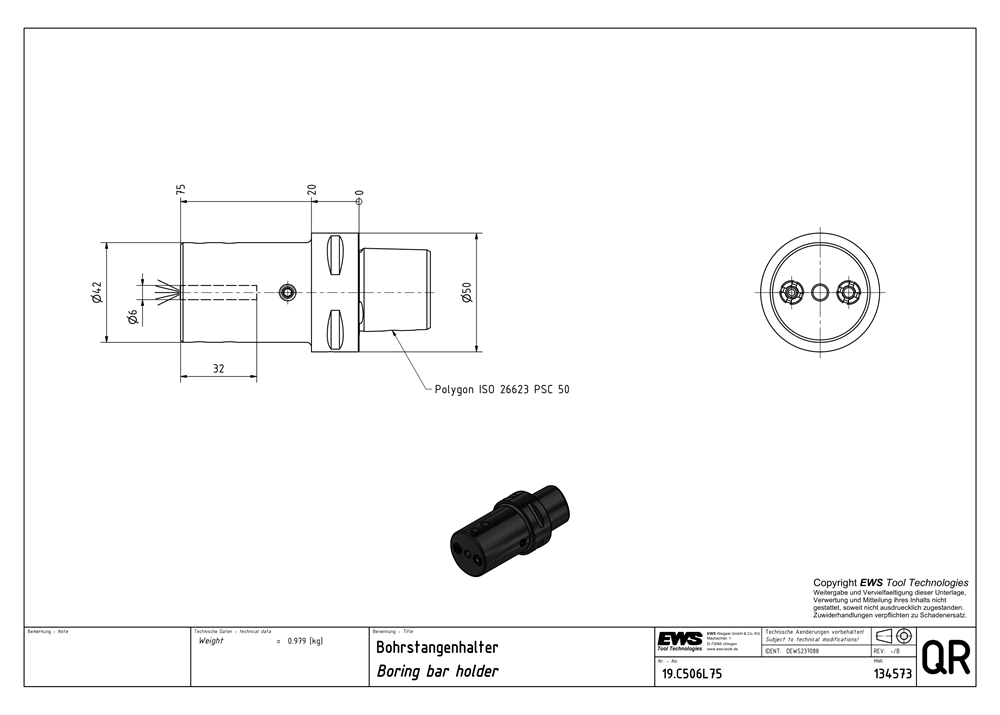

Boring bar holder Dia. 6 Weight: 0.979
| Body diameter 1 (BD1) | 42.00 mm |
|---|---|
| Cantilever length (LPR) | 75.00 mm |
| Functional length (LF) | 43.00 mm |
| Mounting diameter, min. (DCONN) | 6.00 mm |
| Clamping length, max. (LSCX) | 32.00 mm |
| Product group | Tool holders and adapter |
| Product type | Cylindrical tool holder |
| Shank size | PSC 50 |
| Interface size | Ø 6.0 (boring bar) |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
