Артикул: S03997

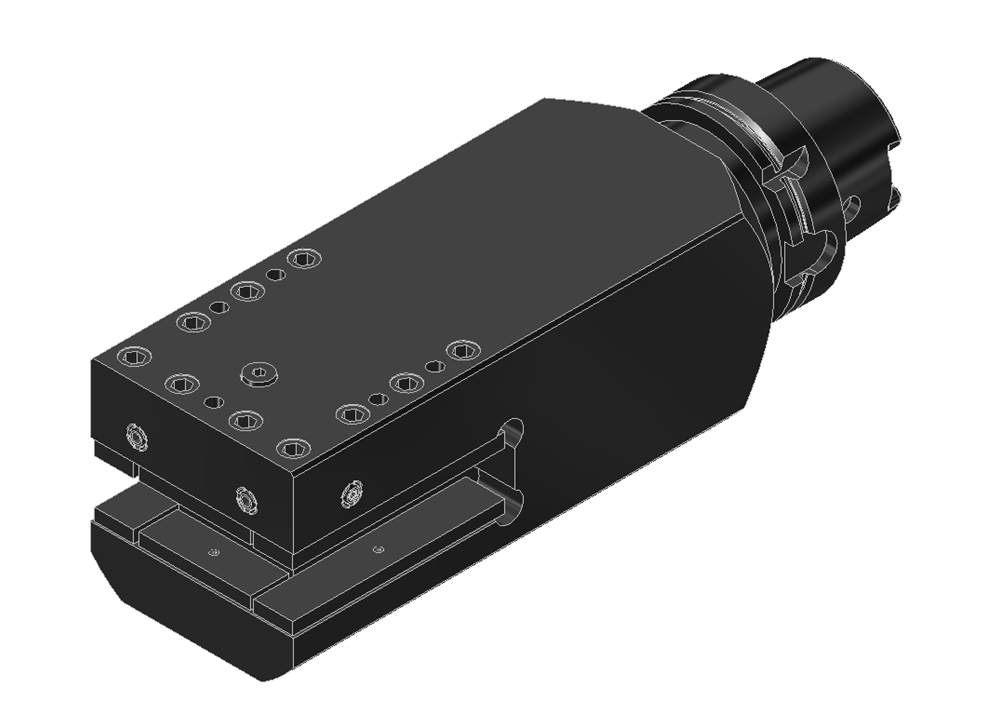

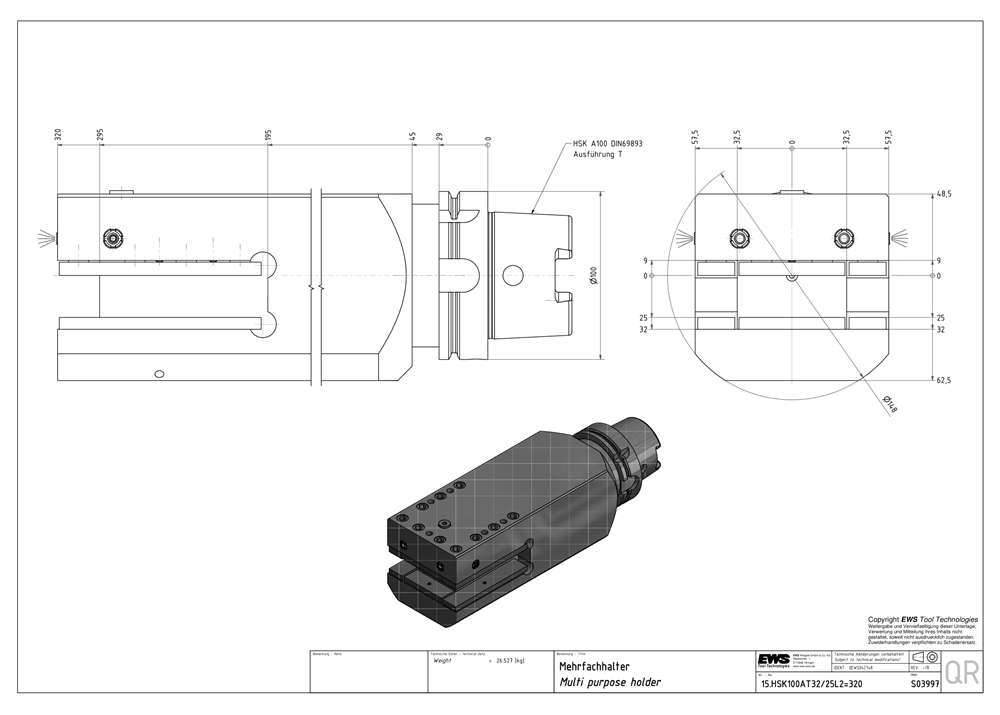

Multi purpose holder SH 32/25 HSK 100 Weight: 26.527
| Cantilever length (LPR) | 320.00 mm |
|---|---|
| Functional length (LF) | 295.00 mm |
| Function height (HF) | 32.00 mm |
| Functional width (WF) | 32.50 mm |
| Direction tool interface (HAND) | N |
| Number of holders, workpiece side (CCONWS) | 3 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | HSK-T100 |
| Interface size | Shank 32×32 Shank 25×25 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
