Артикул: 224042

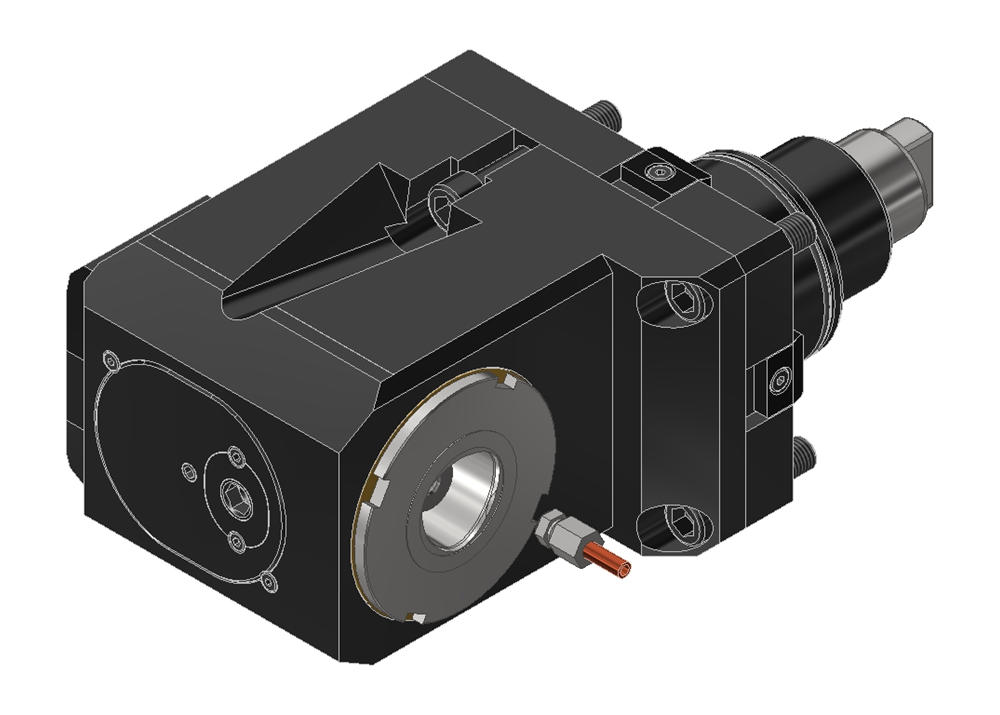

Radial drilling and milling head reset
Premium class tooling system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 50:
- Repeatability ≤ 0.01mm
- Tightening torque 70 Nm
- Clamping force 27 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!
EWS.HPC-Line (IKC/IKD) — Sealing technology sets standards
- Ceramic based sealing elements
- 0 — 70 bar coolant pressure
- Dry running capability without restrictions
- Speeds up to 12,000/min
- Up to 60% reduced heat generation
- Long service life — low maintenance costs
- Seal kit for the latest generation of internal coolant supply systems

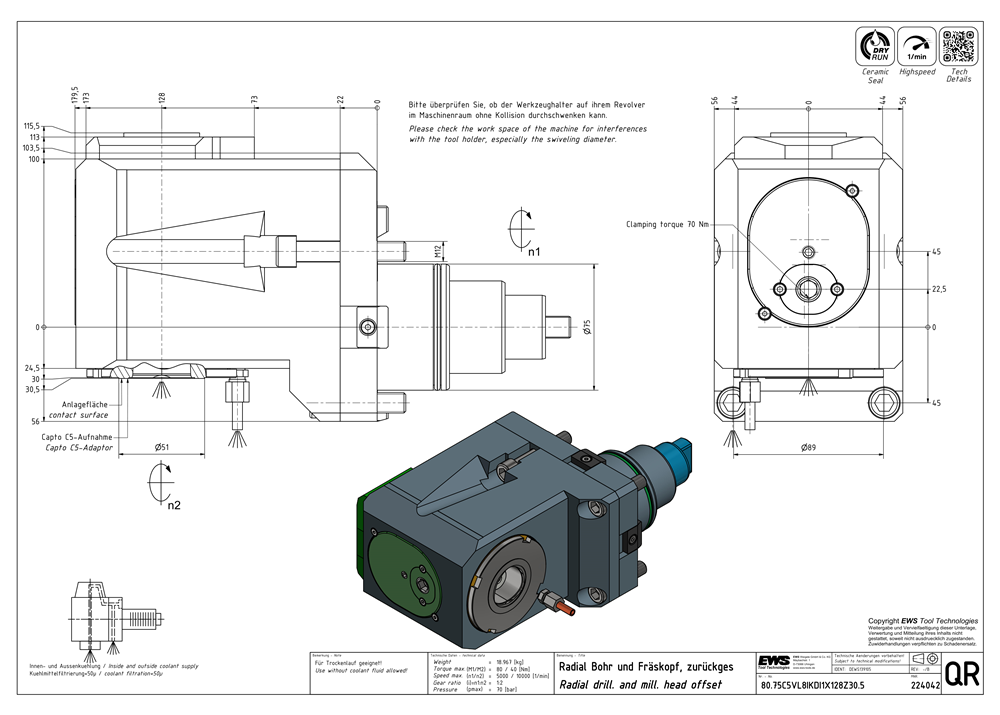

| Functional length (LF) | 128.00 mm |
|---|---|
| Total height (OAH) | 112.00 mm |
| Number of holders, workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 80.00 Nm |
| Max. rotational speed, input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:2 |
| Transmission torque, output drive 1 (DINH201) | 40.00 Nm |
| Shank size | BMT75 |
| Interface size | PSC 50 |
| Coolant intake | Inner and outer cooling |
| Coupling | Surface coupling |
