Артикул: 193876

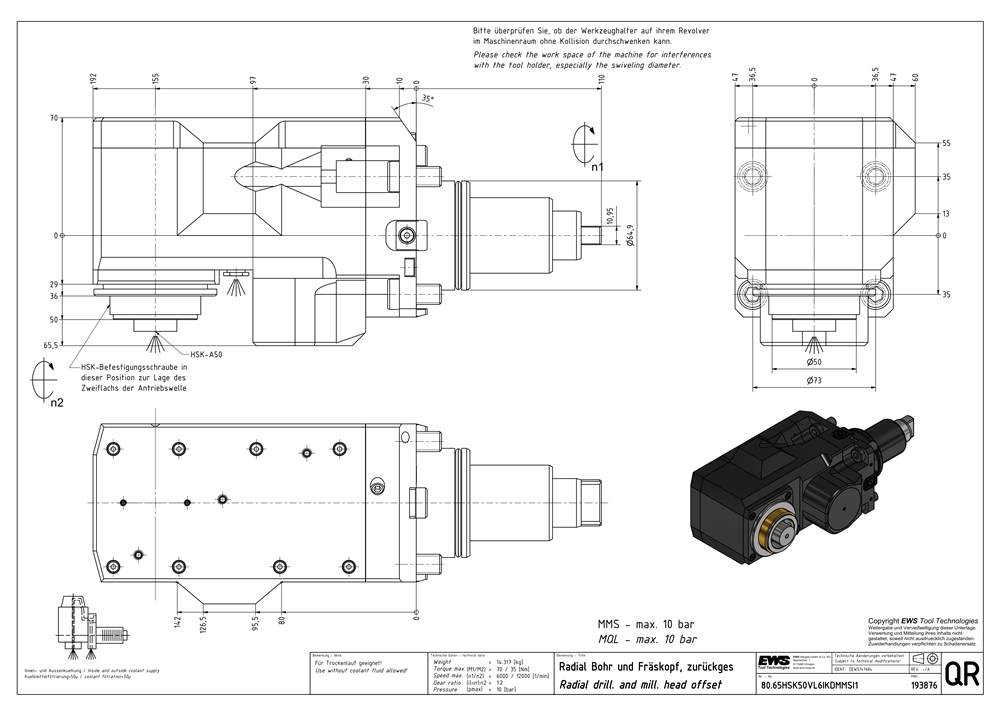

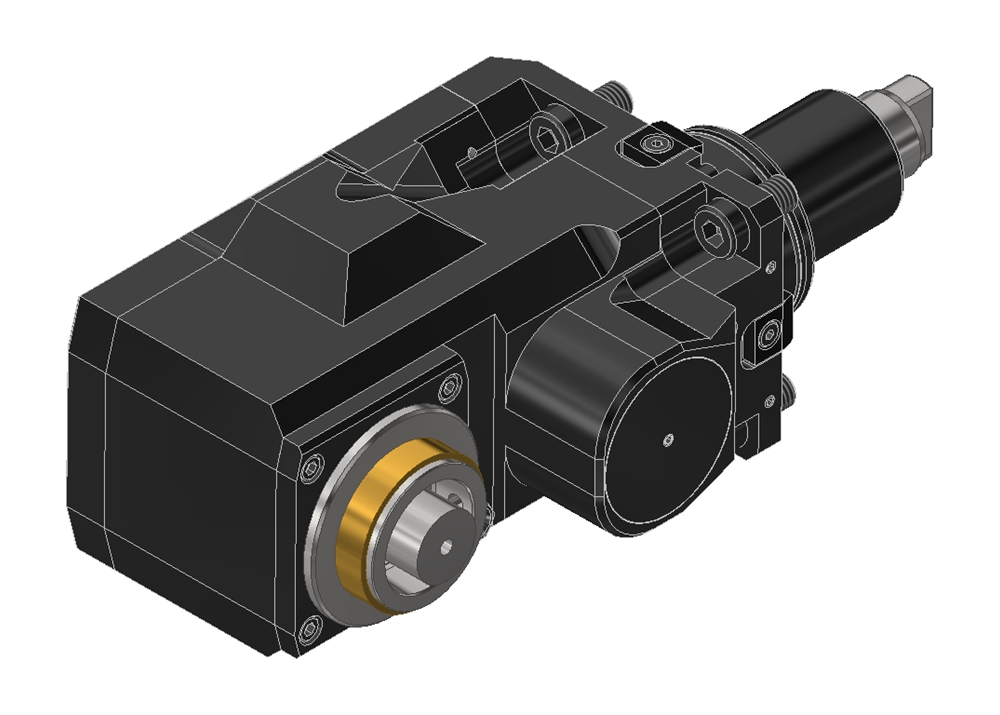

Radial drilling and milling head reset
Premium class tooling system for highest production efficiency — Made in Germany
Number of holders, workpiece side (CCONWS) | 1 |
---|---|
Max. torque (TQX) | 70.00 Nm |
Max. rotational speed, input (RPMX) | 6000 min-1 |
Transmission relation (TR) | 1:2 |
Transmission torque, output drive 1 (DINH201) | 35.00 Nm |
Shank size | BMT65 |
Interface size | HSK-A50 |
Coolant intake | Inner and outer cooling |
Coupling | Surface coupling |
Alignment system | BMT — keyway |
