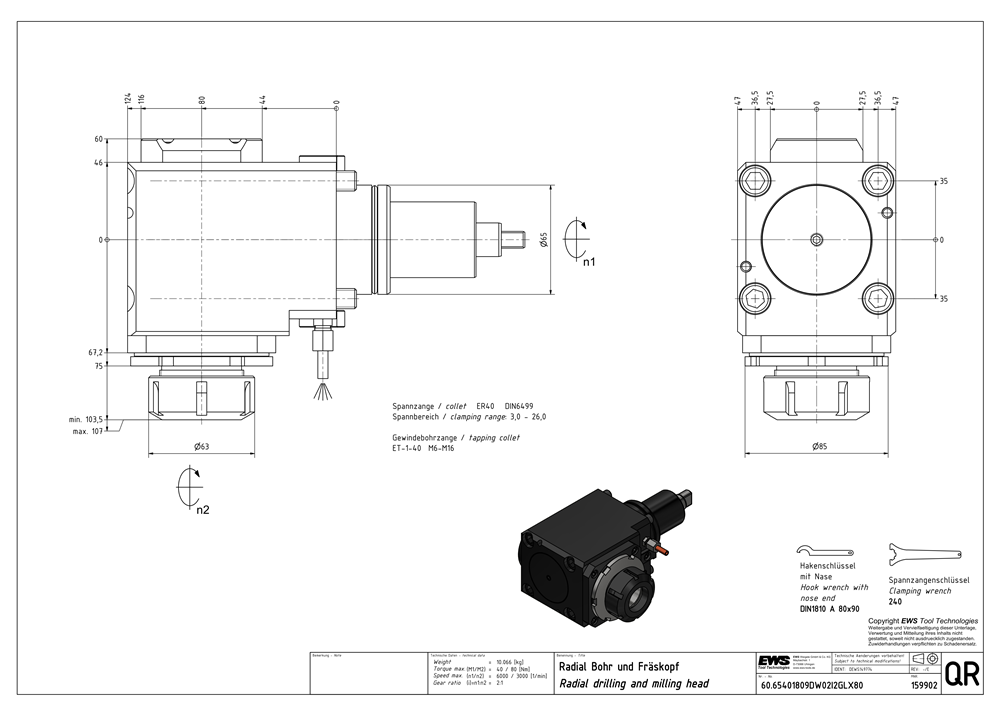

60.65401809DW02I2GLX80 — Radial drilling and milling head, For collet 400 472E (ER40 Ø4-26), Similar to DIN 1809 drive, External coolant supply, i = 2:1 same rotating direction, X = 80mm,

Артикул: 159902

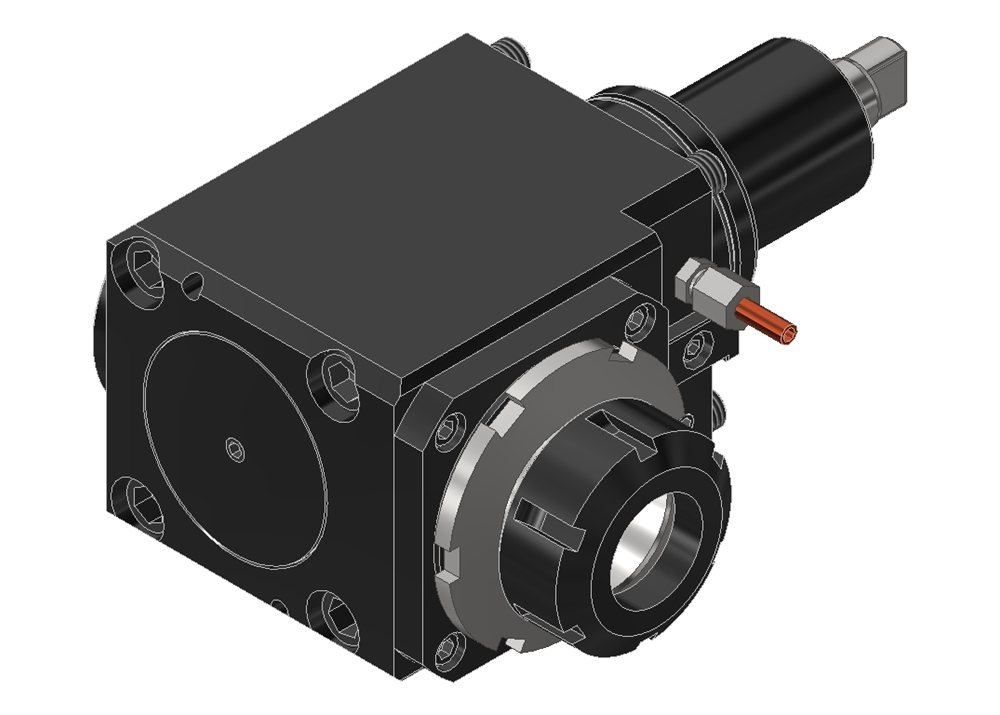

Radial drilling and milling head

Premium class tool system for highest production efficiency — Made in Germany

Collet chuck ER40 DIN6499

  • Clamping range Ø4-26
  • For collet 400 472E
  • When tightening the clamping nut, it is essential to counterhold the tool spindle.
  • Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
  • Maximum tightening torque: 160 Nm


Документация

Functional length (LF) 80.00 mm
Total height (OAH) 94.00 mm
Number of holders, workpiece side (CCONWS) 1
Max. torque (TQX) 40.00 Nm
Max. rotational speed, input (RPMX) 6000 min-1
Transmission relation (TR) 2:1
Transmission torque, output drive 1 (DINH201) 80.00 Nm
Shank size BMT65
Interface size ER40
Coolant intake Outer cooling
Coupling Surface coupling
Alignment system BMT — keyway

Article number159902
Product weight10.051 KG
