Артикул: 146083

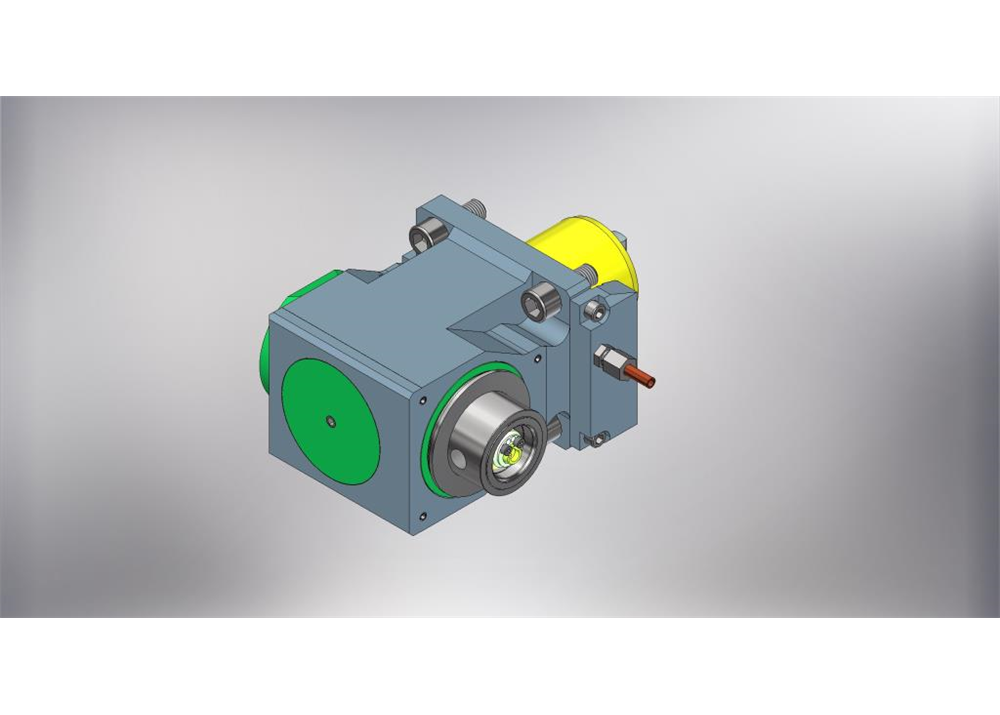

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
| Functional length (LF) | 85.00 mm |
|---|---|
| Total height (OAH) | 89.00 mm |
| Number of holders, workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 100.00 Nm |
| Max. rotational speed, input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 100.00 Nm |
| Shank size | BMT60A Okuma |
| Interface size | KM 40 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | BMT — keyway |
